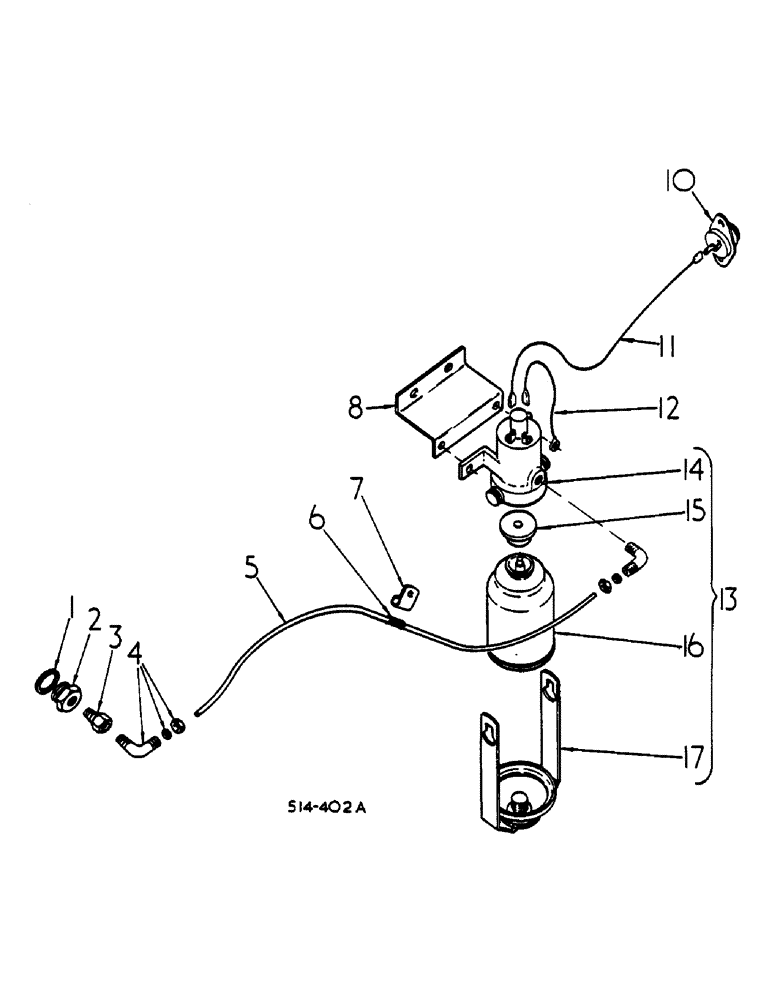

Запчасти Case IH 485 (0D17-2) - COLD START, ETHER STARTING Power

1

933945R1

SEALING RING,M23 x 28 x 2.5

1шт.

2

3116081R1

JET

ADAPTOR, ETHER NOZZLE

1шт.

3

269635R91

NOZZLE CAP

STARTING FLUID

1шт.

4

140304

ELBOW

1/8-27 90 DEG BALL SLEEVE TUBE

2шт.

5

3116080R2

NUT

INJECTOR FEED

1шт.

6

3116374R1

SLEEVE

1шт.

7

3112817R1

CLAMP

SUPPORT

1шт.

8

535672R2

BRACKET

INJECTION MOUNTING

1шт.

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

2шт.

9

- NOT APPLICABLE

1шт.

10

397940R93

SWITCH

PUSH BUTTON ETHER

1шт.

440-1106

SCREW,Cross Pan Hd, #10-24 x 3/8"

10-24 X 3/8 C-Z SLT PAN HD MC

2шт.

225-14110

NUT,#10-24

2шт.

11

3116375R1

CABLE ASSY.

SPARE PART ETHER SWITCH TO SOLENOID

1шт.

12

3116503R1

CABLE

SPARE PART ETHER SOLENOID TO GROUND

1шт.

13

533231R92

SOLENOID

INJECTOR ASSY, ETHER - CONSISTS ITEMS 14 - 17 INCL

1шт.

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

2шт.

80681

LOCK WASHER,5/16"

2шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

14

NSS

NOT SOLD SEPARAT

INJECTOR ASSY

1шт.

15

395686R1

GASKET

ETHER STARTING INJECTOR

1шт.

16

385064R91

FLUID

ETHER STARTING - 12 OZ CAN

1шт.

17

121851C1

RETAINER

ETHER FLUID CANNISTER

1шт.
