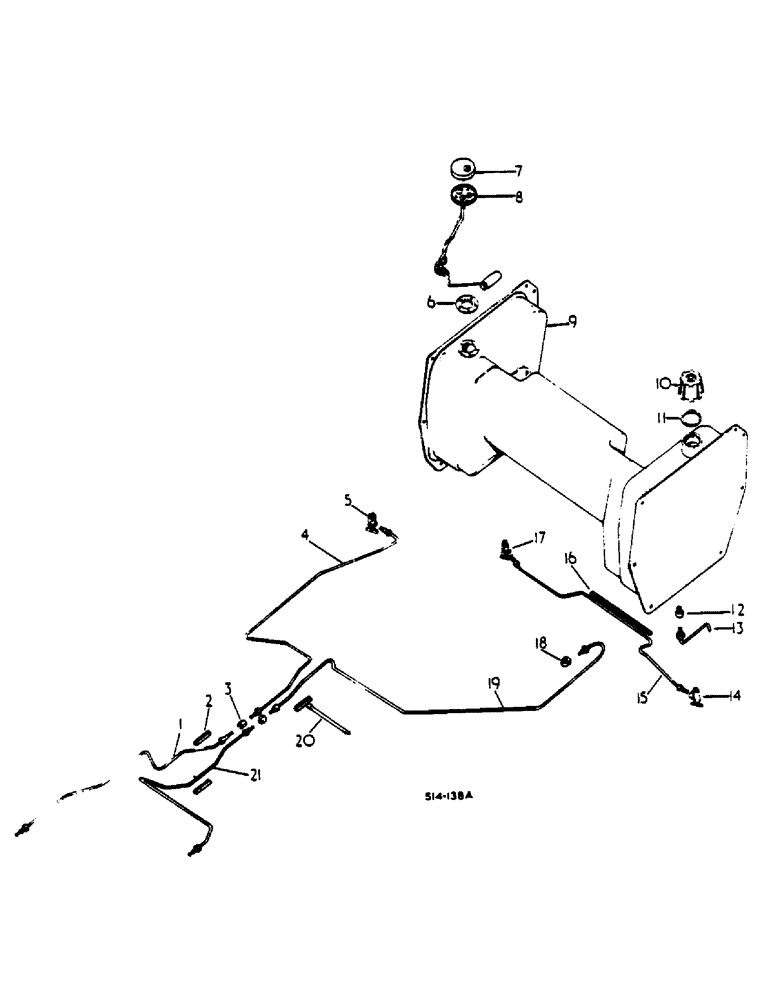

Запчасти Case IH 485 (0D11-2) - FUEL TANK SUPPORTS AND PIPING Power

1

3116238R3

PIPE,787.4, 142.24 mm Length

UNION TO FILTER - BOSCH INJECTION CR PUMP

1шт.

222-1003

TUBE NUT,5/16" Tube, 45 Degree Inv Fl

1/2-20 INVERTED FLARED TUBE

2шт.

222-1003

TUBE NUT,5/16" Tube, 45 Degree Inv Fl

1/2-20 INVERTED FLARED TUBE - OPTIONAL

2шт.

2

87086C1

RADIATOR HOSE,7.90 mm ID

Fuel

3шт.

3

222-1054

HYD CONNECTOR,5/16" Inv Fl

5/16 INVERTED FLARED TUBE

2шт.

3

442337

NUT

UNION, 5/16 INVERTED FLARED TUBE - OPTIONAL

2шт.

4

3129561R1

PIPE,8 mm OD, 932.2, 259.1 mm Length

UNION TO SHUTOFF VALVE

1шт.

222-1003

TUBE NUT,5/16" Tube, 45 Degree Inv Fl

1/2-20 INVERTED FLARED TUBE

2шт.

222-1003

TUBE NUT,5/16" Tube, 45 Degree Inv Fl

1/2-20 INVERTED FLARED TUBE - OPTIONAL

2шт.

5

528926R1

VALVE,1/2" - 20 x 3/8" - 18 NPTF

SHUTOFF

1шт.

6

528359R4

GASKET,3.05mm Thk

SENDING UNIT

1шт.

7

528360R1

CAP

COVER, SENDING UNIT

1шт.

8

529790R1

SENDER UNIT

FUEL GAUGE - A C DELCO

1шт.

8

3129841R91

FUEL GAUGE

TRANSMITTER - ICKNIELD - OPTIONAL

1шт.

463-1108

SCREW,Hex Hd, #10-24 x 1/2"

10-24 X 1/2 C-Z HEX HD CAP,Course threads

5шт.

276-20510

SELF-TAP SCREW,Hex Hd, #10 x 5/8"

10-12 X 5/8 CZ HEX HD TAPPING

1шт.

440-1106

SCREW,Cross Pan Hd, #10-24 x 3/8"

10-24 X 3/8 C-Z CR-REC-PAN

1шт.

276-20510

SELF-TAP SCREW,Hex Hd, #10 x 5/8"

10-12 X 5/8 CZ HEX HD TAPPING

1шт.

533199R1

SEALING WASHER

SENDING UNIT COVER SEALING

4шт.

796002R1

COPPER WASHER

SENDING UNIT COVER SEALING

1шт.

9

536035R93

FUEL TANK

W/FILLER CAP

1шт.

9635082

NUT,5/16" - 18, Gr 5

8шт.

425-106

NUT,3/8"-16, Cl 5

4шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

8шт.

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

4шт.

492-11031

LOCK WASHER,5/16"

10шт.

492-11038

LOCK WASHER,3/8"

4шт.

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

10

538063R1

PLUG

CAP ASSY, FUEL TANK FILLER

1шт.

11

23977DD

GASKET,47.5mm ID x 65.89mm OD x 2.39mm Thk

FUEL TANK FILLER CAP

1шт.

12

137406

CHAIN

CONNECTOR, 1/8 PT X 5/16 INVERTED FLARED TUBE - USED W/UNDERSLUNG EXHAUST

1шт.

13

539938R1

VENTILATION PIPE

TANK BREATHER - USED W/UNDERSLUNG EXHAUST ATTACHMENT

1шт.

222-1003

TUBE NUT,5/16" Tube, 45 Degree Inv Fl

1/2-20 INVERTED FLARED TUBE

2шт.

222-1003

TUBE NUT,5/16" Tube, 45 Degree Inv Fl

1/2-20 INVERTED FLARED TUBE - OPTIONAL

2шт.

539940R1

CLIP

BREATHER LINE

1шт.

271713

5/8-11 X 3/4 ZND HEX HD CAP

1шт.

14

536002R2

VALVE

SHUTOFF

1шт.

15

3121190R1

TUBE

CROSSOVER

1шт.

222-1003

TUBE NUT,5/16" Tube, 45 Degree Inv Fl

1/2-20 INVERTED FLARED TUBE

2шт.

222-1003

TUBE NUT,5/16" Tube, 45 Degree Inv Fl

1/2-20 INVERTED FLARED TUBE - OPTIONAL

2шт.

16

87086C1

RADIATOR HOSE,7.90 mm ID

Balance Tube Spacer

1шт.

17

536002R2

VALVE

SHUTOFF

1шт.

18

222-1024

ELBOW,90 Degree, 1/2"-20 Inv Fl x 1/8" NPT

INVERTED FLARE 90 DEG

1шт.

19

3129262R2

PIPE

FUEL RETURN REAR 385 485

1шт.

19

537538R1

TUBE ASSY.

FUEL RETURN REAR - 484

1шт.

19

3125099R1

PIPE ASSY.

SPARE PART OVERFLOW RETURN REAR - 484 - TRACTORS W/HAND OPERATED DRUM BRAKES

1шт.

222-1003

TUBE NUT,5/16" Tube, 45 Degree Inv Fl

1/2-20 INVERTED FLARED TUBE

2шт.

222-1003

TUBE NUT,5/16" Tube, 45 Degree Inv Fl

1/2-20 INVERTED FLARED TUBE - OPTIONAL

2шт.

20

289862C1

CABLE TIE,3/16" x 7"

CABLE STRAP

3шт.

21

3112790R1

PIPE

FUEL RETURN FRONT

1шт.

222-1003

TUBE NUT,5/16" Tube, 45 Degree Inv Fl

1/2-20 INVERTED FLARED TUBE

2шт.

222-1003

TUBE NUT,5/16" Tube, 45 Degree Inv Fl

1/2-20 INVERTED FLARED TUBE - OPTIONAL

2шт.

538393R1

FILLER CAP

PLUG, FUEL TANK VENT PIPE FLANGE (NOT ILLUSTRATED)

1шт.

366460R1

CABLE CLIP

FUEL SENDER (NOT ILLUSTRATED)

2шт.

3116908R1

CLIP,ELECTRICAL

FUEL TANK (NOT ILLUSTRATED)

2шт.
