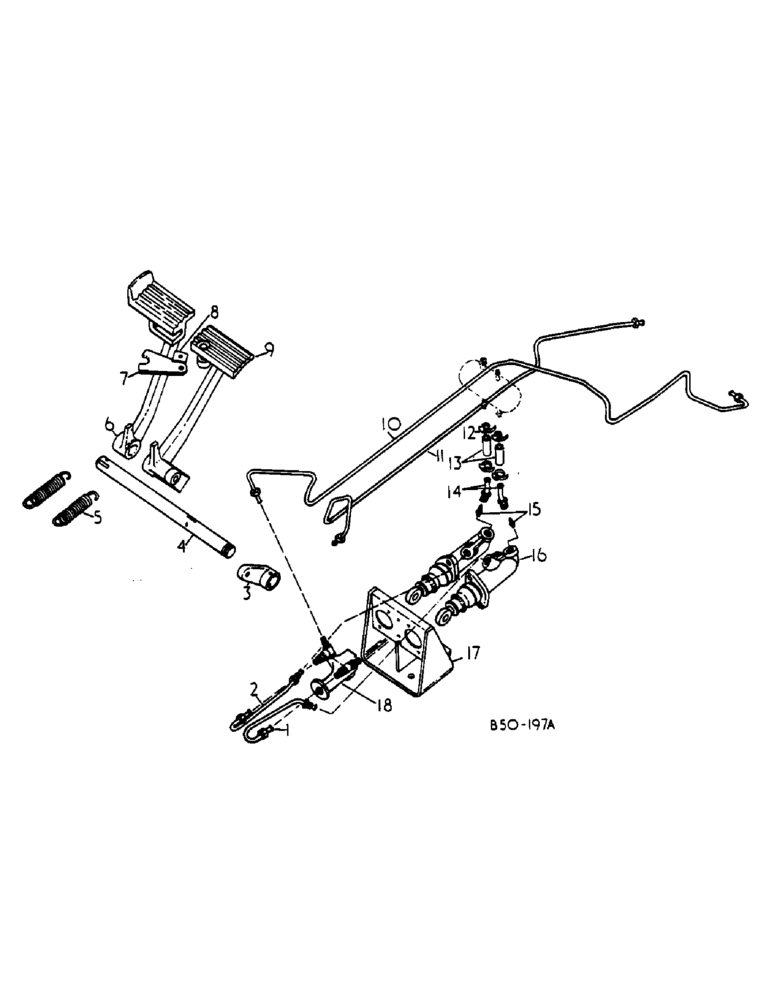

Запчасти Case IH 485 (00B01) - BRAKE CYLINDERS AND CONNECTIONS, 4757 & UP, 248/636 & UP (5.1) - BRAKES

1

530851R2

TUBE

EQUALIZER LH

1шт.

2

530852R1

TUBE

EQUALIZER RH

1шт.

3

3125228R1

ARM

RH BRAKE PEDAL

1шт.

617939R1

PIN,5/16" x 1 1/2", Coiled

5/16" x 1 1/2", Coiled, Serial Range: -7142

1шт.

617939R1

PIN,5/16" x 1 1/2", Coiled

248 5/16" x 1 1/2", Coiled, Serial Range: -815

1шт.

3

1500755C1

ARM

RH BRAKE PEDAL

1шт.

763458

PIN,1/4" x 1 1/2", Coiled

1/4" x 1 1/2", Coiled

1шт.

61754

WOODRUFF KEY,#A, 1/4" x 7/8"

WOODRUFF 1/4 X 7/8, Start Serial: 7143

1шт.

61754

WOODRUFF KEY,#A, 1/4" x 7/8"

WOODRUFF 1/4 X 7/8, 248, Start Serial: 816

1шт.

4

3125229R1

SHAFT

PEDAL SUPPORT - SYNCROMESH DRIVE TRACTORS, Serial Range: -7142

1шт.

4

3125229R1

SHAFT

PEDAL SUPPORT - SYNCROMESH DRIVE TRACTORS, 248, Serial Range: -815

1шт.

4

1500753C1

SHAFT

PEDAL SUPPORT, Start Serial: 7143

1шт.

4

1500753C1

SHAFT

PEDAL SUPPORT, 248, Start Serial: 816

1шт.

5

3125230R1

SPRING

BRAKE PEDAL RETURN

2шт.

6

399741R4

PEDAL

RH BRAKE

1шт.

617940R1

PIN,5/16" x 1 3/4", Coiled

5/16" x 1 3/4", Coiled, Serial Range: -7142

1шт.

617940R1

PIN,5/16" x 1 3/4", Coiled

248 5/16" x 1 3/4", Coiled, Serial Range: -815

1шт.

6

1500752C1

PEDAL

RH BRAKE

1шт.

19795

PIN, 1/4 X 1-3/4 HV COILED SPRING

1шт.

61754

WOODRUFF KEY,#A, 1/4" x 7/8"

WOODRUFF 1/4 X 7/8, Start Serial: 7143

1шт.

61754

WOODRUFF KEY,#A, 1/4" x 7/8"

WOODRUFF 1/4 X 7/8, 248, Start Serial: 816

1шт.

399744R1

BOLT

BRAKE PEDAL ADJUSTING

1шт.

425-116

NUT,3/8" - 24, Gr 5

Hex

1шт.

492-11038

LOCK WASHER,3/8"

1шт.

7

43751DB

LATCH, PEDALS

BRAKE LOCK

1шт.

104087

RIVET,But Hd, 1/4" x 1 1/4"

1/4 X 1-1/4 SMALL B-HD SOLID

1шт.

8

51293D0

SPRING, LEAF

BRAKE PEDAL LOCK TENSION

1шт.

9

3125226R91

PEDAL ASSY.

LH BRAKE

1шт.

399744R1

BOLT

BRAKE PEDAL ADJUSTING

1шт.

425-116

NUT,3/8" - 24, Gr 5

Hex

1шт.

492-11038

LOCK WASHER,3/8"

1шт.

219-45

LUBE NIPPLE,65 Degree Elbow, 1/4" NPTF

1шт.

10

66093C1

BRAKE LINE

BRAKE L H - 484

1шт.

10

3129260R1

TUBE ASSY.

BRAKE L H 385 - 485

1шт.

11

66094C1

BRAKE LINE

BRAKE RH

1шт.

12

3125239R1

COLLAR

WORM DRIVE HOSE

4шт.

13

3125843R1

HOSE,7.925 mm ID x 45.00 mm, SAE 30R6 or SAE 30R7

2шт.

14

3125836R1

TUBE ASSY.,23, 35 mm Length

BRAKE CYLINDER SUPPLY

2шт.

15

537849R2

SCREEN

AND ORIFICE ASSY BRAKE SEAL SERVICE

2шт.

16

527542R92

CYLINDER

BRAKE MASTER

2шт.

16

527542R92GV

BRAKE CYLINDER

Value, Brake Master Cylinder Assy.

2шт.

(P/N 527542R92) - Seal Kit for Brake Master 3125824R1

1шт.

16

71925C1

HOSE

SPARE PART MASTER BRAKE CYL RETAINING

1шт.

16

71926C1

BELLOWS

INSULATOR, BRAKE CYLINDER DUST

1шт.

16

3125582R1

BRACKET

KIT, SEAL - AS REQUIRED -

1шт.

17

3125224R1

BRACKET

BRAKE CYL MOUNTING - SYNCHROMESH DRIVE TRACTORS

1шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

492-11038

LOCK WASHER,3/8"

3шт.

181338

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5

4шт.

425-115

NUT,5/16"-24, G5

4шт.

492-11031

LOCK WASHER,5/16"

4шт.

18

530374R92

VALVE

BRAKE EQUALIZER

1шт.

530373R1

WASHER

EQUALIZER VALVE

2шт.

9411128

TEE,7/16"-20, 37 Degree x 7/16"-20, O-Ring Run

ADJ STR THRU 90 DEG

2шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

2шт.

92-4

LOCK WASHER,1/4"

2шт.

68434C3

SEAL PACKAGE

EQUALIZER VALVE O-RING AND SEAL SERVICE

1шт.
