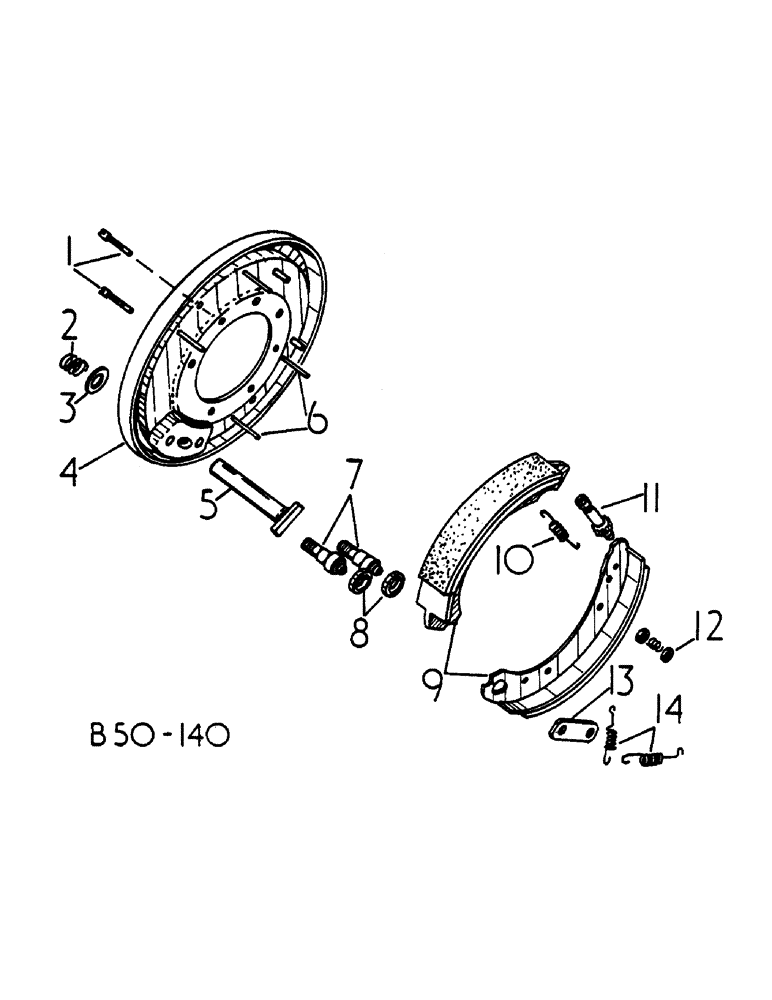

Запчасти Case IH 485 (00A21) - DRUM BRAKE (5.1) - BRAKES

3068536R91

DRUM BRAKE ASSY

14 X 2 DAFC

1шт.

1

3068556R1

POST

SPARE PART STEADY

2шт.

3068577R1

NUT

2шт.

2

3068567R1

SPRING

COVER PLATE

1шт.

3

3068566R1

WASHER

SPARE PART COVER PLATE

1шт.

4

3068541R1

BACK PLATE

SPARE PART COMPLETE

1шт.

5

3068565R1

CAMSHAFT

1шт.

6

PIN, SHOE HOLD DOWN - ORDER KIT 3069468R91

1шт.

7

3068558R1

PIN

ANCHOR

2шт.

3068559R1

NUT

3/4 UNF

2шт.

3068560R1

SPRING WASHER

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

Optional

2шт.

8

3068564R1

SPACER

WASHER

2шт.

9

3068548R91

SHOE (ASSY)

BRAKE

2шт.

10

3068561R1

SPRING

SHOE RETURN - ADJUSTER END

1шт.

11

3068550R91

ADJUSTER

1шт.

12

3069468R91

KIT

KIT, STEADY REST SERVICE - CONSISTS

1шт.

NSS

NOT SOLD SEPARAT

WASHERS

8шт.

NSS

NOT SOLD SEPARAT

SPRINGS

4шт.

NSS

NOT SOLD SEPARAT

PINS

4шт.

13

3068563R1

PLATE

ANCHOR PIN

1шт.

14

3068562R1

SPRING

SHOE RETURN - ANCHOR END

2шт.
