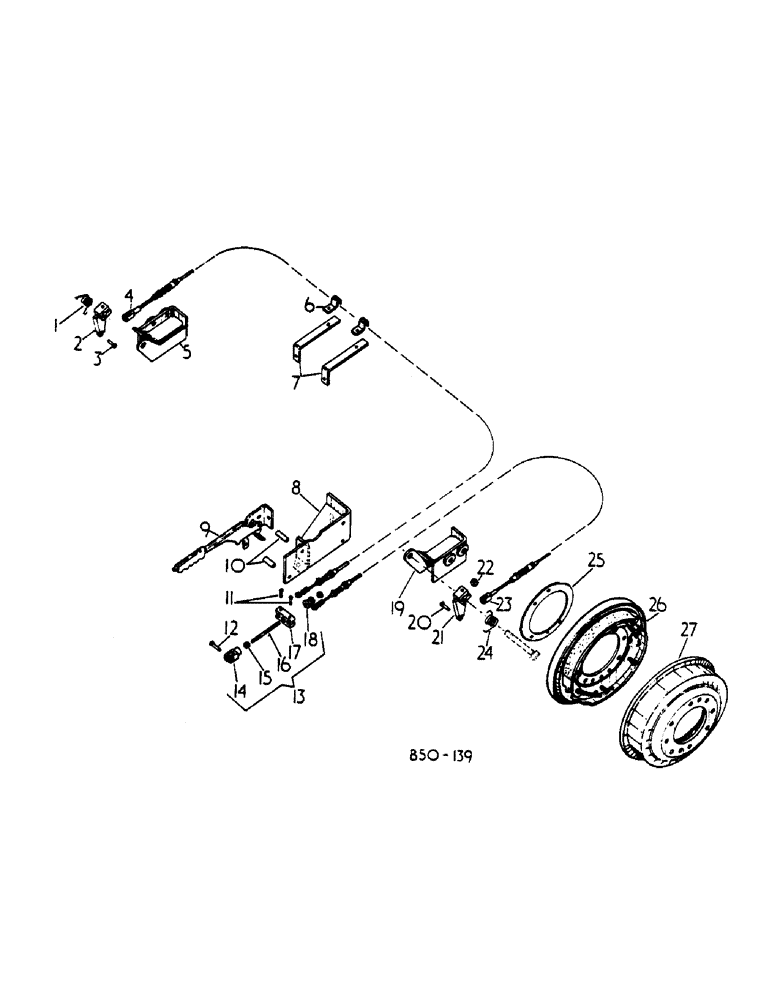

Запчасти Case IH 485 (00A18) - DRUM BRAKE ATTACHMENT - HAND OPERATED - (5.1) - BRAKES

1

3123952R1

SPRING

ACTUATING CABLE RETURN, RH

1шт.

2

3123957R1

LEVER

CAMSHAFT

1шт.

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

492-11038

LOCK WASHER,3/8"

1шт.

425-106

NUT,3/8"-16, Cl 5

1шт.

3

763268

CLEVIS PIN

5/16 X 15/16 CLEVIS

1шт.

95-11034

WASHER,1/4"

11/32 X 11/16 X 16 GA

1шт.

432-610

COTTER PIN,3/32" x 5/8"

1шт.

4

3123950R1

CABLE

BRAKE ACTUATING, RH

1шт.

5

3123939R1

BRACKET

CAM AND CABLE ANCHOR, RH

1шт.

6

528477R1

CLAMP

BRAKE CABLE

2шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

492-11038

LOCK WASHER,3/8"

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

7

3123953R1

SUPPORT

BRAKE CABLE

2шт.

8

1283229C1

BRACKET

CABLE REACTION

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

492-11038

LOCK WASHER,3/8"

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

9

3123958R1

HANDLE AND RATCHET ASSY, DRUM BRAKE

1шт.

10

11531N

SPACER,3/8" Pipe x 2"

.675 X .493 X 2.0 LONG

2шт.

11

26493R1

CLEVIS PIN,5/16" x 1 1/4"

5/16 X 1-1/4 CLEVIS

2шт.

95-11034

WASHER,1/4"

11/32 X 11/16 X 16 GA

2шт.

432-610

COTTER PIN,3/32" x 5/8"

2шт.

12

427-6106

CLEVIS PIN,9.53mm OD x 26.92mm L

1шт.

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

1шт.

432-610

COTTER PIN,3/32" x 5/8"

1шт.

13

3123954R91

ROD ASSY.

SPARE PART HAND LEVER TO LINKAGE CONN - CONSISTS ITEMS 14-18 INCL

1шт.

14

3068529R1

CLEVIS

SPARE PART END, PULL ROD FORK

1шт.

15

704676

HARDWARE

5/16-24 HEX

2шт.

16

NSS

NOT SOLD SEPARAT

ROD, HAND LEVER TO LINKAGE CONNECTION

1шт.

17

3123956R1

YOKE

SPARE PART COMPENSATOR

1шт.

18

402013R1

NUT

ADJUSTABLE PIVOT

1шт.

19

3123938R1

BRACKET

CAM AND CABLE ANCHOR LH

1шт.

763268

CLEVIS PIN

5/16 X 15/16 CLEVIS

1шт.

95-11034

WASHER,1/4"

11/32 X 11/16 X 16 GA

1шт.

432-610

COTTER PIN,3/32" x 5/8"

1шт.

21

3123957R1

LEVER

CAMSHAFT

1шт.

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

492-11038

LOCK WASHER,3/8"

1шт.

425-106

NUT,3/8"-16, Cl 5

1шт.

22

3068530R1

KEY

BRAKE LEVER

2шт.

23

3123949R1

CABLE ASSY.

BRAKE ACTUATING - LH

1шт.

3069964R1

RING, SNAP

RING SNAP 19MM EXTERNAL

1шт.

3069964R1

RING, SNAP

RING SNAP 19MM EXTERNAL - 3 OR AS REQUIRED - OPTIONAL

1шт.

24

3123951R1

SPRING

ACTUATING CABLE RETURN, LH

1шт.

25

3069199R1

SHIM

SPARE PART DRUM BRAKE BACK PLATE

2шт.

26

3068536R1

BRAKE ASSY, DRUM - FOR DETAILS SEE ITEMS LISTED UNDER DETAIL - DRUM BRAKE

2шт.

180148

SCREW,Hex, 7/16" - 14 x 1 3/8"

7/16-14 X 1-3/8 ZND HEX HD

6шт.

326-732

BOLT,Hex, 7/16" - 14 x 2", Gr 8

4шт.

492-11044

LOCK WASHER,7/16"

10шт.

425-107

NUT,7/16"-14, G5

10шт.

27

528487R1

DRUM

BRAKE

2шт.
