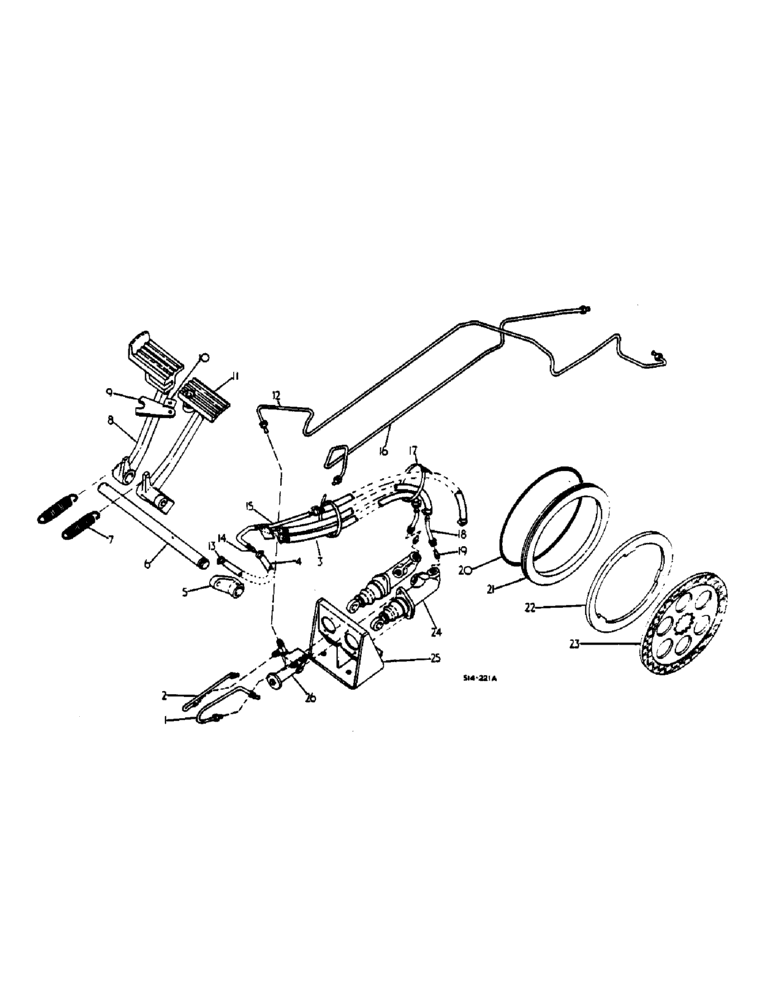

Запчасти Case IH 485 (00A12) - BRAKE CYLINDERS AND CONNECTIONS, UP TO 4756, UP TO 248/635 (5.1) - BRAKES

1

530851R2

TUBE

EQUALIZER LH

1шт.

2

530852R1

TUBE

EQUALIZER RH

1шт.

3

66372C1

HYDRAULIC HOSE,0.31" ID x 25.00"

BRAKE RESERVOIR

3шт.

527433R1

CLIP

BRAKE RESERVOIR

1шт.

4

66368C2

HYDRAULIC HOSE,0.31" ID x 11.00"

BRAKE RESERVOIR SUPPLY

1шт.

5

529858R1

ARM

SPARE PART RH, BRAKE PEDAL, Serial Range: -1949

1шт.

5

3125228R1

ARM

RH, BRAKE PEDAL, Start Serial: 1950

1шт.

617939R1

PIN,5/16" x 1 1/2", Coiled

5/16" x 1 1/2", Coiled

1шт.

617939R1

PIN,5/16" x 1 1/2", Coiled

5/16" x 1 1/2", Coiled

1шт.

6

399740R1

SHAFT

PEDAL SUPPORT, Serial Range: -1949

1шт.

6

3125229R1

SHAFT

PEDAL SUPPORT - SYNCHROMESH DRIVE TRACTORS, Start Serial: 1950

1шт.

7

539556R1

SPRING

RETURN, Serial Range: -1949

2шт.

7

3125230R1

SPRING

RETURN, Start Serial: 1950

2шт.

8

399741R4

PEDAL

RH BRAKE

1шт.

399744R1

BOLT

BRAKE PEDAL ADJUSTING

1шт.

425-116

NUT,3/8" - 24, Gr 5

Hex

1шт.

492-11038

LOCK WASHER,3/8"

1шт.

617940R1

PIN,5/16" x 1 3/4", Coiled

5/16" x 1 3/4", Coiled

1шт.

9

43751DB

LATCH, PEDALS

BRAKE PEDAL LOCK

1шт.

104087

RIVET,But Hd, 1/4" x 1 1/4"

1/4 X 1-1/4 SMALL B-HD SOLID

1шт.

10

51293D0

SPRING, LEAF

BRAKE PEDAL LOCK TENSION

1шт.

11

537095R11

PEDAL ASSY.

LH BRAKE, Serial Range: -1949

1шт.

11

3125226R91

PEDAL ASSY.

LH BRAKE, Start Serial: 1950

1шт.

399744R1

BOLT

BRAKE PEDAL ADJUSTING

1шт.

425-116

NUT,3/8" - 24, Gr 5

Hex

1шт.

492-11038

LOCK WASHER,3/8"

1шт.

219-45

LUBE NIPPLE,65 Degree Elbow, 1/4" NPTF

1шт.

12

66093C1

BRAKE LINE

BRAKE LH

1шт.

13

3125239R1

COLLAR

WORM DRIVE HOSE

8шт.

14

537518R1

SCREEN

AND ORIFICE ASSY

1шт.

15

66369C1

TUBE ASSY.

BRAKE RESERVOIR SUPPLY

1шт.

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

16

66094C1

BRAKE LINE

BRAKE RH

1шт.

17

289862C1

CABLE TIE,3/16" x 7"

CABLE STRAP

2шт.

18

66367C1

TUBE ASSY.,0.31" OD, 2.5" Length

BRAKE CYL SUPPLY

2шт.

19

537849R2

SCREEN

AND ORIFICE ASSY, BRAKE RESERVOIR TUBE

2шт.

20

343932R1

O-RING,0.139" Thk x 9.984" ID, -274, Cl 6, 90 Duro

10 X 10-1/4 X 1/8

2шт.

21

114621C1

PISTON

BRAKE

2шт.

22

399736R3

RING

BRAKE

1шт.

23

114622C2

BRAKE DISC

BRAKE CENTRE

2шт.

24

527542R92

CYLINDER

BRAKE MASTER

2шт.

24

527542R92GV

BRAKE CYLINDER

Value, Brake, Master Cylinder Assy.

2шт.

(P/N 527542R92) - Seal Kit for Brake Master 3125824R1

1шт.

71925C1

HOSE

SPARE PART MASTER CYL BRAKE RETAINING

1шт.

71926C1

BELLOWS

INSULATOR, MASTER BRAKE CYL DHST

1шт.

3125824R1

SEAL KIT

1шт.

25

3116929R1

BRACKET

BRAKE CYLINDER MOUNTING, Serial Range: -1949

1шт.

25

3125224R1

BRACKET

BRAKE CYLINDER MOUNTING - SYNCHROMESH DRIVE TRACTORS, Start Serial: 1950

1шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

492-11038

LOCK WASHER,3/8"

3шт.

181338

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5

4шт.

425-115

NUT,5/16"-24, G5

4шт.

492-11031

LOCK WASHER,5/16"

4шт.

26

530374R92

VALVE

BRAKE EQUALIZER

1шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

2шт.

92-4

LOCK WASHER,1/4"

2шт.

68434C3

SEAL PACKAGE

EQUALIZER VALVE O-RING AND SEAL SERVICE

1шт.

530373R1

WASHER

EQUALISING VALVE

1шт.

9411128

TEE,7/16"-20, 37 Degree x 7/16"-20, O-Ring Run

ADJ-STR THRO 90 DEG

2шт.
