Запчасти Case IH 485 (0C17-2) - INSTRUMENT PANEL Instruments

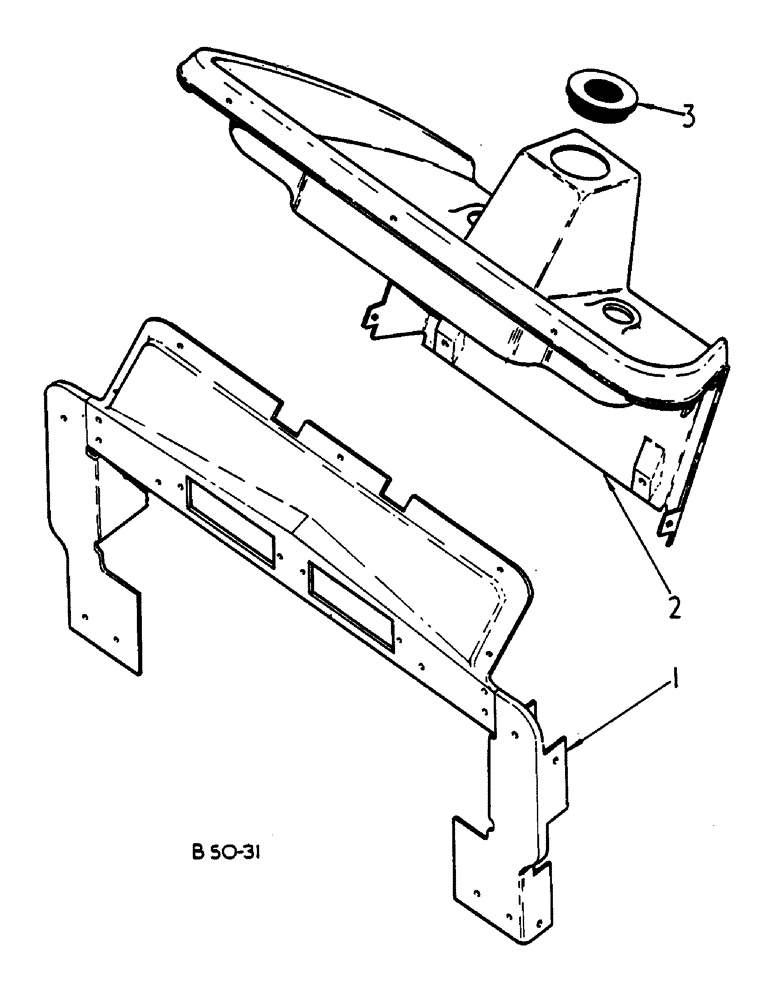

Схема запчастей Case IH 485 - (0C17-2) - INSTRUMENT PANEL Instruments
1
2
3

Артикул

Название

Примечание

Количество

1

3123667R93

PLATE ASSY.

INST PANEL SUPPORT - MACHINES W/CAB

1шт.

1

3125771R92

PLATE ASSY.

INST PANEL SUPPORT CPTE - W/PLATE 3121684R3 AND 7/NUTS 3123171R1 - MACHINES W/OUT CAB - SUPER DE-LUXE CAB

1шт.

1

3121684R4

PLATE

INSTRUMENT PANEL BACK

1шт.

9414743

SCREW,Tap, Gr 5

NO 10 X 5/8 PAN HD CR

4шт.

280-1458

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

NO 10-16 X 1/2 HEX WASHER HD TAPPING

1шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

2шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

492-11031

LOCK WASHER,5/16"

2шт.

3123171R2

NUT

CAPTIVE

7шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

2шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

492-11031

LOCK WASHER,5/16"

Instrument panel back plate to battery tray

2шт.

2

3121699R3

HOUSING

INSTRUMENT PANEL - BASIC LIGHTING

1шт.

2

3121700R3

HOUSING

INSTRUMENT PANEL - DE LUXE LIGHTING

1шт.

2

3121695R3

HOUSING

INSTRUMENT PANEL - INDUSTRIAL - BASIC LIGHTING - HYDRO W/HAND CONTROL

1шт.

2

3121696R3

HOUSING

INSTRUMENT PANEL - INDUSTRIAL - BASIC LIGHTING - HYDRO W/FOOT CONTROL

1шт.

2

3121697R3

HOUSING

INSTRUMENT PANEL - INDUSTRIAL - DE LUXE LIGHTING - HYDRO W/HAND CONTROL

1шт.

2

3121698R3

HOUSING

INSTRUMENT PANEL - INDUSTRIAL - DE LUXE LIGHTING - HYDRO W/FOOT CONTROL

1шт.

440-12510

SCREW,Cross Pan Hd, 1/4"-20 x 5/8"

Instrument Panel to Strg Support

2шт.

275-1458

SELF-TAP SCREW,Hex Hd, #10 x 1/2"

NO 10-16 X 1/2 HEX HD TAP

3шт.

9421089

WASHER

NO 10 PLAIN - INSTRUMENT PANEL TO INSTRUMENT BACK PLATE ASSY

3шт.

3123774R1

INSULATOR

INSTRUMENT PANEL

1шт.

3125816R1

LENS

GREEN - MACHINES W/CAB

1шт.

3

3123366R2

PLUG

RUBBER

1шт.

3113429R1

PLUG

BLANKING, T A CONTROL (NOT ILLUSTRATED)

1шт.

538239R1

PLUG

BLANKING, HORN SWITCH (NOT ILLUSTRATED)

1шт.

538240R1

PLUG

BLANKING, CIGARETTE LIGHTER (NOT ILLUSTRATED)

1шт.

3114406R1

PLUG

BLANKING, IGNITION (NOT ILLUSTRATED)

1шт.

3113429R1

PLUG

BLANKING, PARK BRAKE WARNING (NOT ILLUSTRATED)

1шт.

Выбрано товаров: 29
