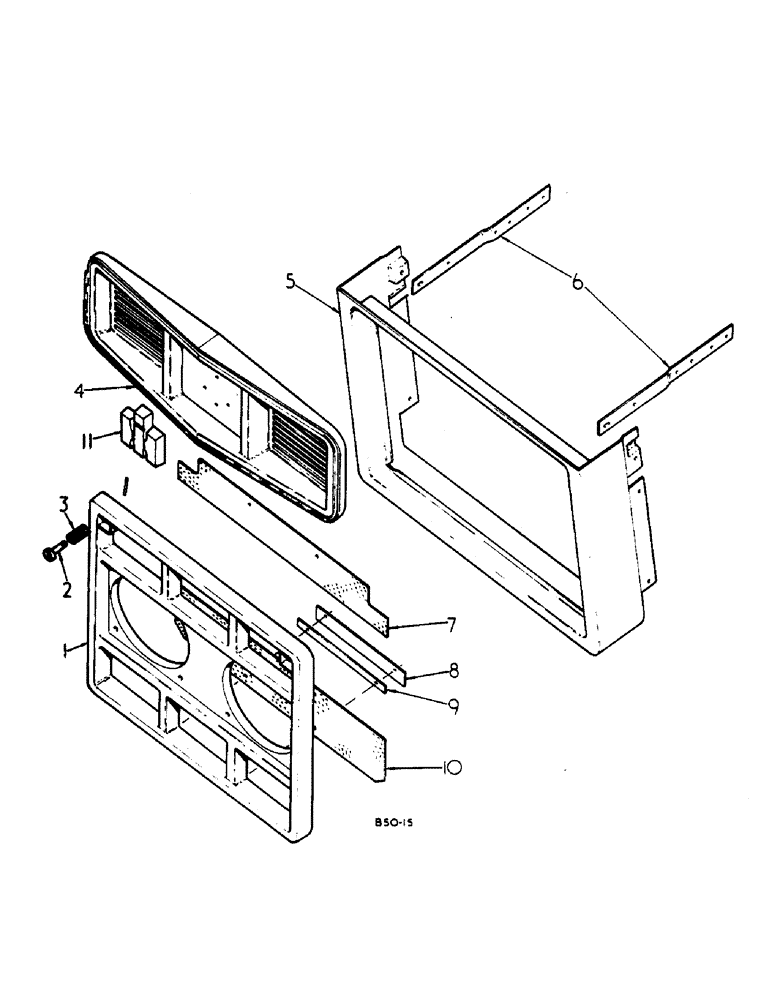

Запчасти Case IH 485 (00B18) - RADIATOR GRILLE Cooling

1

3121652R1

GRILLE ASSY

RADIATOR - HEADLIGHT LOW POSITION

1шт.

1

3121672R1

GRILLE

RADIATOR - HEADLIGHT HIGH POSITION

1шт.

2

3113470R1

PIN

LATCH, GRILLE

2шт.

138-2055

PIN,3/16" x 1 1/2", Coiled

2шт.

95-81069

WASHER,0.34" ID x 0.75" OD x 0.07" Thk

11/32 X 3/4 X 16 GA

2шт.

3

532180R1

SPRING

GRILLE LATCH

2шт.

4

3121663R2

GRILLE ASSY

GRILLE ASSY, UPPER - HEADLIGHT LOW POSITION

1шт.

4

3125076R1

GRILLE

UPPER - 248/647 UP

1шт.

4

3121675R2

GRILLE ASSY

UPPER - HEADLIGHT HIGH POSITION

1шт.

4

3125075R2

GRILLE ASSY

UPPER - 248/647 UP

1шт.

9411893

LOCK NUT,#10-32, GB

NO 10-32 HEX LOCK

8шт.

9421089

WASHER

NO 10 X .50 X .036

8шт.

5

3121231R1

HOUSING

LOWER GRILLE

1шт.

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

NLS

NO LONGER SERVICED

.531 X 1.062 X .074

2шт.

9635082

NUT,5/16" - 18, Gr 5

4шт.

80681

LOCK WASHER,5/16"

4шт.

6

3121232R1

SUPPORT

BAR, GRILLE TIE

2шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

6шт.

92-4

LOCK WASHER,1/4"

6шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

2шт.

95-11028

WASHER,1/4"

.281 X .625 X .051

2шт.

100770H

CLIP

CABLE

1шт.

495-11028

WASHER,1/4", SAE

(.281 x .625 x .051")

1шт.

7

3121655R1

GRILLE

SCREEN, UPPER

1шт.

401499R1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 1/2"

10-24 X 1/2 HEX WASHER HD TAP

4шт.

401499R1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 1/2"

10-24 X 1/2 HEX (RANDOM SLTD) - OPTIONAL

4шт.

8

3121653R1

BRACKET

GRILLE RETAINING

1шт.

9

3121654R1

BAR

GRILLE RETAINING

1шт.

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

2шт.

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

2шт.

10

3121656R1

GRILLE

SCREEN, LOWER

1шт.

401499R1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 1/2"

10-24 X 1/2 HEX WASHER HD TAP

2шт.

401499R1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 1/2"

10-24 X 1/2 HEX (RANDOM SLTD) - OPTIONAL

2шт.

10

3121673R1

SCREEN

GRILLE

1шт.

401499R1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 1/2"

10-24 X 1/2 HEX WASHER HD TAP

4шт.

401499R1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 1/2"

10-24 X 1/2 HEX (RANDOM SLTD) - OPTIONAL - HEADLIGHT HIGH POSITION

4шт.

11

120397C1

EMBLEM CASE/IH

GRILLE

1шт.

9421089

WASHER

NO 10 PLAIN

4шт.

187-1091

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW, NO 10-16 X 3/8 ZND PAN HD CR RECESS TAP TYPE B - FRONT GRILLE LOW POSITION

4шт.

260-5458

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW, NO 10-16 X 1/2 ZND PAN HD CR RECESS TAP TYPE B - FRONT GRILLE HIGH POSITION

4шт.
