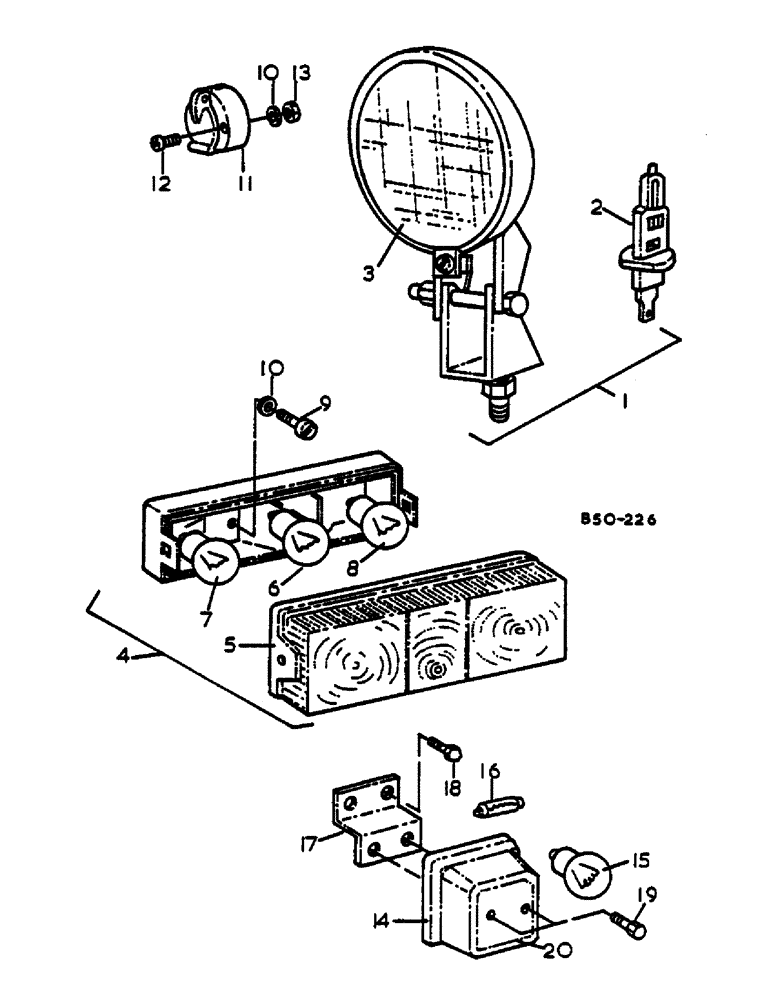

Запчасти Case IH 485 (00I18) - LIGHTS - DE-LUXE CAB (06) - ELECTRICAL

1

K262806

LAMP, WORK

LIGHT, WORK WORK

1шт.

2

3217312R1

BULB,H1, 12V, 55W

Iodine

1шт.

3

3125706R1

LENS

1шт.

4

3145942R91

LAMP, TAIL

LIGHT, TAIL STOP AND FLASHER

1шт.

4

3145943R91

LAMP, TAIL

LIGHT, TAIL STOP AND FLASHER RH

1шт.

5

3145945R1

LENS

2шт.

6

71421

BULB,R5W, 12V, 5W

12V 5W

1шт.

7

1094366R1

BULB

12V 18W

1шт.

8

1094366R1

BULB

12V 21W

1шт.

9

3125667R1

SCREW

M5 X 16 CHEESE HD

2шт.

10

K651776

WASHER

3/16

5шт.

11

3112294R91

SOCKET/RECEPTACLE

TRAILER

1шт.

12

3125715R1

SCREW

M5 X 30 CHEESE HD

3шт.

13

934871R1

NUT,M5, Cl 5

M5

3шт.

14

3121089R91

LIGHT

SIDE AND FLASHER - SEE DETAIL LIST

2шт.

15

NOT APPLICABLE

1шт.

16

NOT APPLICABLE

1шт.

17

3125716R1

BRACKET

SPARE PART LH

1шт.

17

3125717R1

BRACKET

SPARE PART RH

1шт.

18

3125520R1

SCREW

M5 X 12 SELF TAPPING

4шт.

19

NOT APPLICABLE

1шт.

20

NOT APPLICABLE

1шт.

3125720R1

BRACKET

SPARE PART REFLECTOR (NOT ILLUSTRATED)

2шт.

3125721R1

REFLECTOR

(NOT ILLUSTRATED)

2шт.
