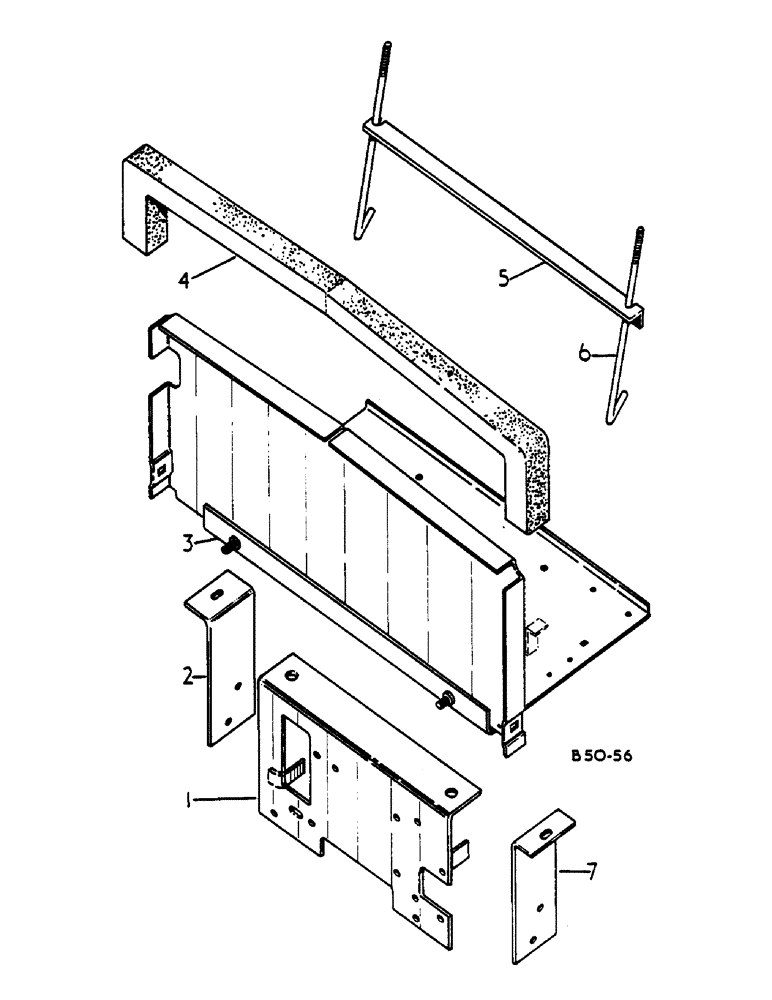

Запчасти Case IH 485 (00I12) - BATTERY TRAY, MACHINES FITTED W/CAB (06) - ELECTRICAL

1

3123057R2

SUPPORT ASSY.

BATTERY

1шт.

1

538054R2

SUPPORT

BATTERY

1шт.

3121629R2

SPRING NUT

RETAINER - SUPER DE-LUXE CAB

2шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

492-11038

LOCK WASHER,3/8"

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

2

3116893R1

SUPPORT

SPARE PART BATTERY TRAY R H

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

425-106

NUT,3/8"-16, Cl 5

1шт.

492-11038

LOCK WASHER,3/8"

1шт.

495-81128

WASHER,13/32" x 5/8" x .060"

.406 X .625 X .054 PLAIN

1шт.

3

3123055R2

TRAY ASSY.

BATTERY

1шт.

25770R1

BOLT,Hex, 3/8" - 24 x 3/4", Gr 8

3/8-16 X 5/8 HEX HD CAP

1шт.

492-11038

LOCK WASHER,3/8"

1шт.

495-81117

WASHER,.344" x 1" x .120"

11/32 X 1 X .120

2шт.

80681

LOCK WASHER,5/16"

2шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

3121629R2

SPRING NUT

RETAINER

2шт.

28588R1

WASHER

.344 X .688 X .051

2шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

492-11031

LOCK WASHER,5/16"

2шт.

4

73217C2

FILLING STRIP

BATTERY HEAT SHIELD

1шт.

5

3121178R1

BRACKET

BATTERY HOLD DOWN

1шт.

6

529968R3

ROD

BATTERY HOLD DOWN

2шт.

28588R1

WASHER

11/32 X 11/16 X .051 C-Z

2шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

7

3116892R2

BRACKET

BATTERY TRAY L H

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

425-106

NUT,3/8"-16, Cl 5

1шт.

492-11038

LOCK WASHER,3/8"

1шт.

495-81128

WASHER,13/32" x 5/8" x .060"

.406 X .625 X .054 PLAIN

1шт.

92-4

LOCK WASHER,1/4"

(Not Illustrated)

1шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

Power Steering Pipe Clamp (Not Illustrated)

1шт.

3125822R1

CABLE CLIP

SPARE PART OPTIONAL - (NOT ILLUSTRATED)

1шт.

3125823R1

CLIP

(NOT ILLUSTRATED)

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

(Not Illustrated)

1шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

Not Illustrated

1шт.

492-11025

LOCK WASHER,1/4"

Located under battery tray ASM, Not Illustrated

1шт.
