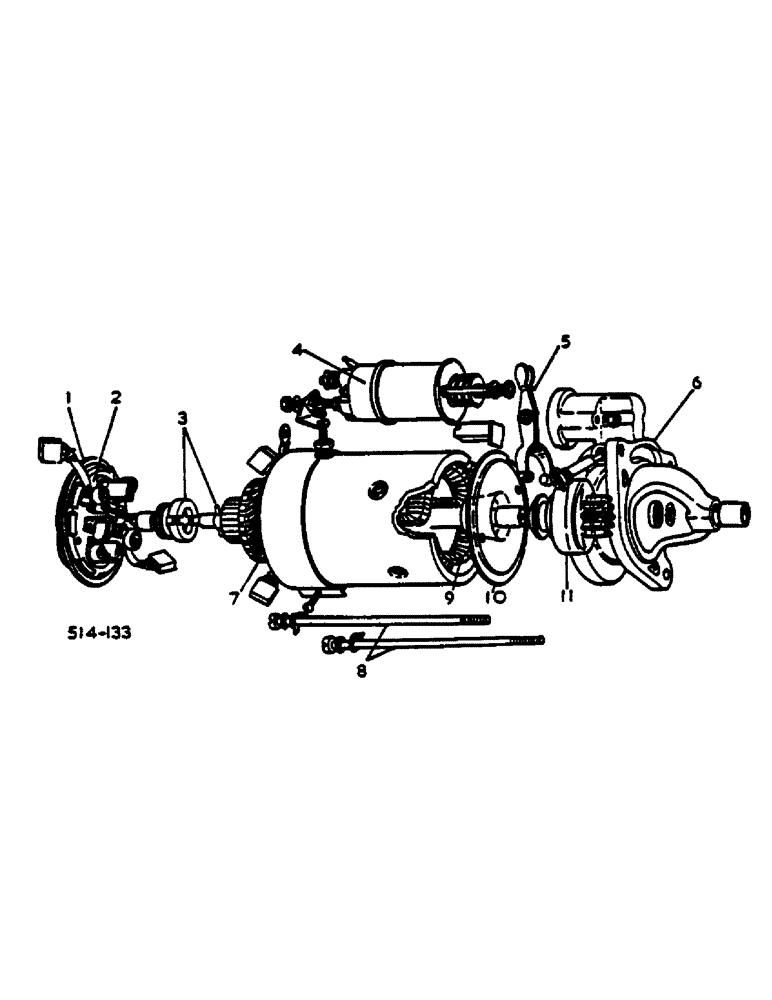

Запчасти Case IH 485 (00I08) - STARTER MOTOR - LUCAS (06) - ELECTRICAL

529965R93

STARTING MOTOR

CPTE, LUCAS M50 - 26336 H/K

1шт.

104200A1R

REMAN-STARTER

Remanufactured Starter

1шт.

104200A1C

CORE-STARTER

Return Number

1шт.

1

3206511R91

BRACKET

KIT, CE ASSY

1шт.

2

3523393M91

KIT

BRUSH MOUNTING

1шт.

3206522R91

BRUSH, COMMUTATOR

BRUSH KIT

1шт.

3206523R91

SPRING KIT

BRUSH

1шт.

3

3206531R91

BRAKE PACKAGE

BRAKES

1шт.

4

3113035R91

COVER

SOLENOID END

1шт.

5

3206517R91

LINK ASSY.

SOLENOID

1шт.

6

3129494R91

BRACKET

DE

1шт.

7

3113038R91

ARMATURE

1шт.

8

3113036R91

BOLT

THROUGH

1шт.

9

3206527R91

KIT

FIELD COILS

1шт.

10

3119902R91

SUPPORT

INTERMEDIATE

1шт.

11

3113033R91

DRIVE

1шт.

11

3113033R91

DRIVE

1шт.

3113029R91

BUSHING

KIT (NOT ILLUSTRATED)

1шт.

3206528R91

SEAL KIT

(NOT ILLUSTRATED)

1шт.

3206529R91

KIT

SUNDRY PARTS (NOT ILLUSTRATED)

1шт.

3124479R93

SOLENOID SWITCH

SOLENOID (NOT ILLUSTRATED)

1шт.
