Запчасти Case IH 485 (00I05) - STARTER MOTOR - BOSCH (06) - ELECTRICAL

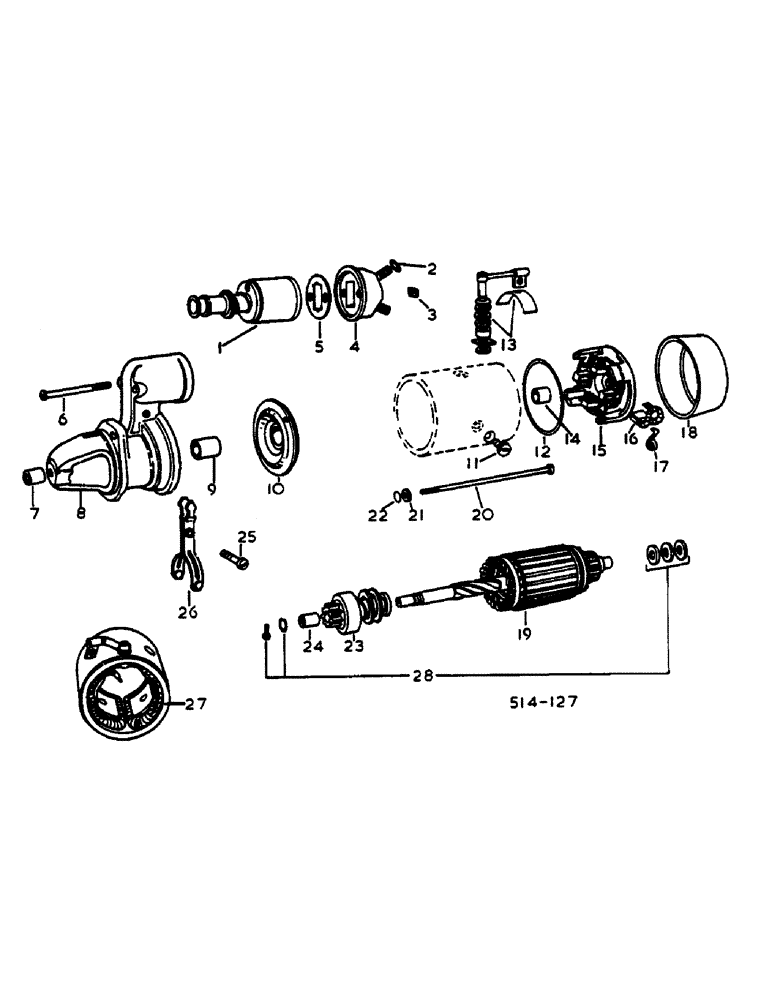

Схема запчастей Case IH 485 - (00I05) - STARTER MOTOR - BOSCH (06) - ELECTRICAL
19
13
27
21
4
2
15
8
23
11
18
20
9
7
17
14
5
24
10
28
16
25
12
26
22
1
3
6

Артикул

Название

Примечание

Количество

529965R93

STARTING MOTOR

BOSCH 4PS

1шт.

104200A1R

REMAN-STARTER

Remanufactured Starter

1шт.

104200A1C

CORE-STARTER

Return Number

1шт.

1

3113013R91

RELAY

1шт.

2

WASHER, RELAY COVER

2шт.

3

3132763R2

CLAMP

PLATE, RELAY COVER

4шт.

4

COVER, RELAY

1шт.

931342R1

SCREW,Slotted Cheese, M4 x 0.7 x 6mm, Cl 8.8

RELAY COVER

1шт.

100016

NUT,M10 x 1.5, Cl 8

Relay Cover

2шт.

933965R1

LOCK WASHER,M10

Relay cover

2шт.

5

RING, PACKING RELAY COVER

1шт.

6

3078983R1

SCREW

DRIVE END

2шт.

7

3113008R1

BUSHING

BEARING

1шт.

8

3113007R91

DRIVE ASSY.

END

1шт.

9

3078966R91

BEARING ASSY

BEARING

1шт.

10

3078966R91

BEARING ASSY

INTERMEDIATE

1шт.

11

3078334R1

SCREW

RETAINER COIL BODY

4шт.

12

P5346050

SEAL

COMMUTATOR END

1шт.

13

3132464R91

TERMINAL CONNECTOR

TERMINAL PARTS

1шт.

14

3132446R1

BUSHING

BEARING COMMUTATOR END

1шт.

15

3113011R91

FRAME ASSY

COMMUTATOR END

1шт.

16

8003/02036

CARBON

CARBON SET

1шт.

17

8003/02033

COIL SPRING

CARBON BRUSH

2шт.

18

3132449R1

COVER

END

1шт.

19

3078961R1

ARMATURE

ROTATING

1шт.

20

3132759R1

BOLT

1шт.

892-11006

LOCK WASHER,M6

1шт.

21

3078756R1

WASHER

1шт.

22

3132760R1

BUSHING

1шт.

23

3078980R92

DRIVE ASSY.

1шт.

24

8003/02028

COMPOSITE RING

1шт.

25

3132758R1

SCREW

ENGAGING LEVER

1шт.

26

3132432R1

LEVER

ENGAGING

1шт.

933983R1

LOCK WASHER,M6

1шт.

825-1408

NUT,M8, Cl 8

1шт.

27

3209711R1

COIL

COIL, MAIN FIELD - COILS 1 TO 4

1шт.

28

1409 090716

SET

ROTATING ARMATURE PARTS

1шт.

Выбрано товаров: 37
