Запчасти Case IH 485 (00I03) - HORN & STARTER MOTOR (06) - ELECTRICAL

Схема запчастей Case IH 485 - (00I03) - HORN & STARTER MOTOR (06) - ELECTRICAL

Артикул

Название

Примечание

Количество

1

3121205R91

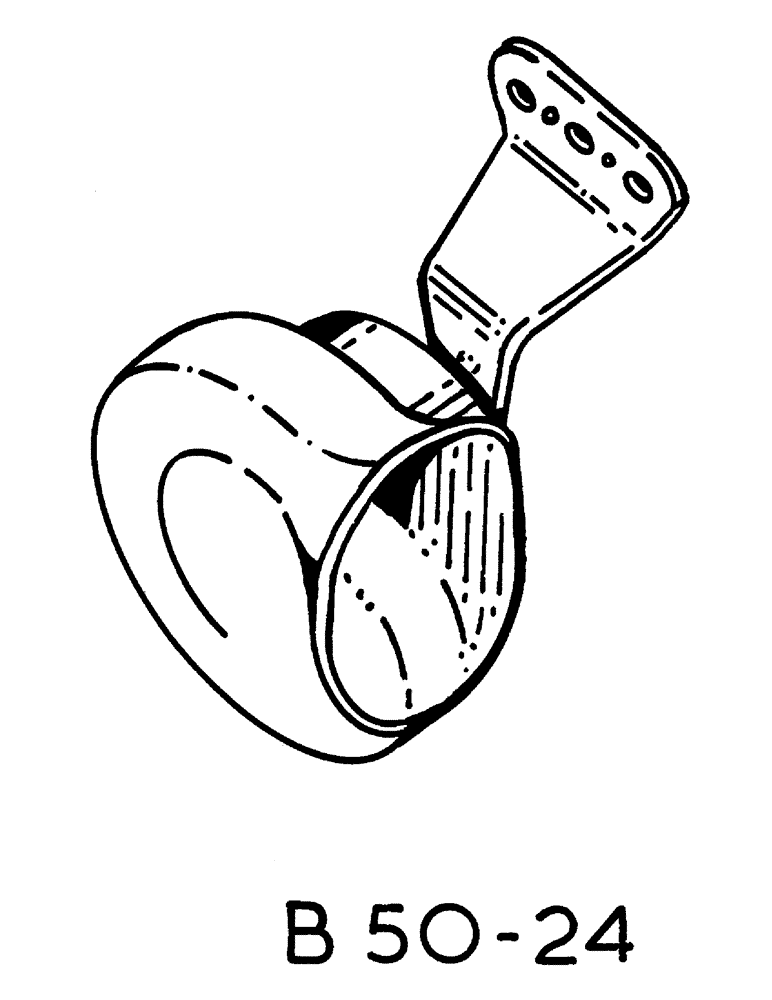

HORN

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

3119440R1

LOCK NUT

SELF-LOCKING 1/4

2шт.

495-11028

WASHER,1/4", SAE

(.281 x .625 x .051")

2шт.

529965R93

STARTING MOTOR

LUCAS M50 - SYNCHROMESH DRIVE TRACTORS - FOR COMPONENTS SEE LIST OF PARTS UNDER DETAILS OF LUCAS STARTER MOTOR

1шт.

529965R93

STARTING MOTOR

BOSCH 4PS - SYNCHROMESH DRIVE TRACTORS - FOR COMPONENTS SEE LIST OF PARTS UNDER DETAILS OF BOSCH STARTER MOTOR

1шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

Starter Motor

3шт.

492-11038

LOCK WASHER,3/8"

Starter motor

3шт.

537143R1

TERMINAL CONNECTOR,Male

STARTER MOTOR Male

1шт.

Выбрано товаров: 9
