Запчасти Case IH 485 (00H16) - FENDER CONDUIT AND 2 PIN SOCKET, MACHINES NOT FITTED W/CAB (06) - ELECTRICAL

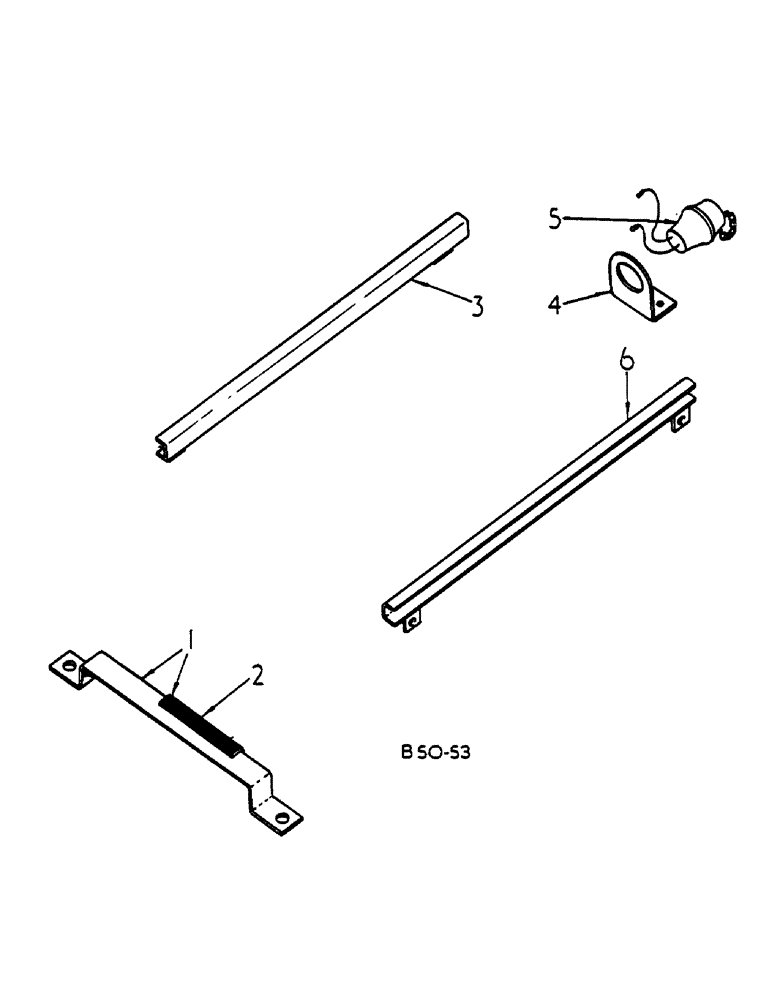

Схема запчастей Case IH 485 - (00H16) - FENDER CONDUIT AND 2 PIN SOCKET, MACHINES NOT FITTED W/CAB (06) - ELECTRICAL
2
3
1
5
6
4

Артикул

Название

Примечание

Количество

1

3123177R91

SUPPORT ASSY.

CABLE HARNESS W/MOULDING 3109490R1

1шт.

2

3118677R1

SEAL, RUBBER

RUBBER SEAL

1шт.

3

3123179R1

CABLE SHEATH

FENDER RH

1шт.

260-1456

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

NO 10-16 X 3/8 PAN HD CR TAP

2шт.

4

709237R2

BRACKET

POWER SOCKET

1шт.

5

705271R91

SOCKET/RECEPTACLE

2 PIN

1шт.

6

3123179R1

CABLE SHEATH

FENDER LH - USED W/FLAT TOP FENDERS

1шт.

6

3123182R2

CABLE SHEATH

FENDER LH - USED W/CROWN TOP FENDERS

1шт.

260-1456

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

NO 10-16 X 3/8 PAN HD CR TAP

2шт.

3125820R1

SLEEVE

PVC - FOR USE W/SUPPORT ASSY - CABLE HARNESS W/MOULDING 3109490R1 - (NOT ILLUSTRATED)

1шт.

Выбрано товаров: 10
