Запчасти Case IH 485 (00H14) - STOP, TAIL AND FLASHER LIGHTS, DE-LUXE LIGHTING, FOR MACHINES W/FLAT TOP FENDERS OR SAFETY CAB (06) - ELECTRICAL

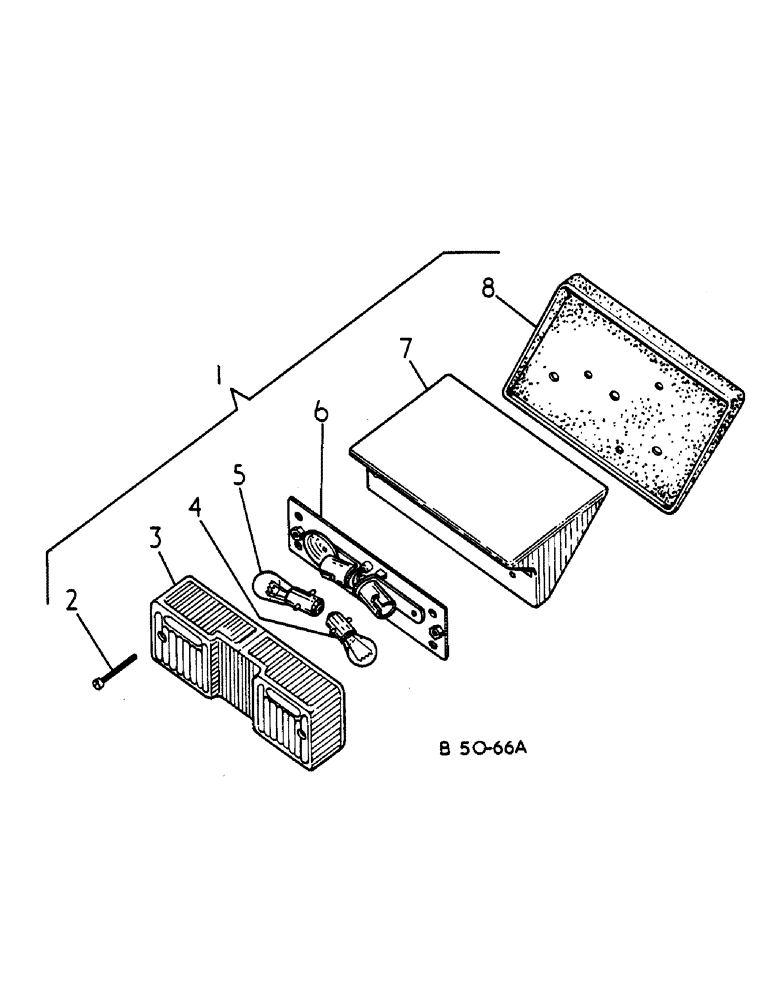

Схема запчастей Case IH 485 - (00H14) - STOP, TAIL AND FLASHER LIGHTS, DE-LUXE LIGHTING, FOR MACHINES W/FLAT TOP FENDERS OR SAFETY CAB (06) - ELECTRICAL
1
8
6
4
5
2
3
7

Артикул

Название

Примечание

Количество

1

3123163R91

LAMP, TAIL

LIGHT, TAIL STOP, AND FLASHER L H

1шт.

1

3123164R91

LAMP, TAIL

LIGHT, TAIL STOP, TAIL AND FLASHER RH

1шт.

2

3125156R1

SCREW

LENS

2шт.

3112786R1

WASHER

2шт.

3

3115359R1

LENS

LENS, AMBER/RED

1шт.

4

3025210R91

BULB

12V 21W

1шт.

5

1094367R1

BULB

12V 21/5W

1шт.

6

NSS

NOT SOLD SEPARAT

PLATE, LAMP HOLDER

1шт.

3125157R1

WASHER

CLINCH BOLT

2шт.

6

3125158R1

NUT

NYLOC CLINCH BOLT

3шт.

93-81000

LOCK WASHER,Int Tooth, #10

2BA SHAKEPROOF

1шт.

7

NSS

NOT SOLD SEPARAT

HOUSING, LIGHT

1шт.

8

3125154R1

CUSHION

RUBBER MOUNTING LH

1шт.

8

3125155R1

CUSHION

RUBBER MOUNTING RH

1шт.

Выбрано товаров: 14
