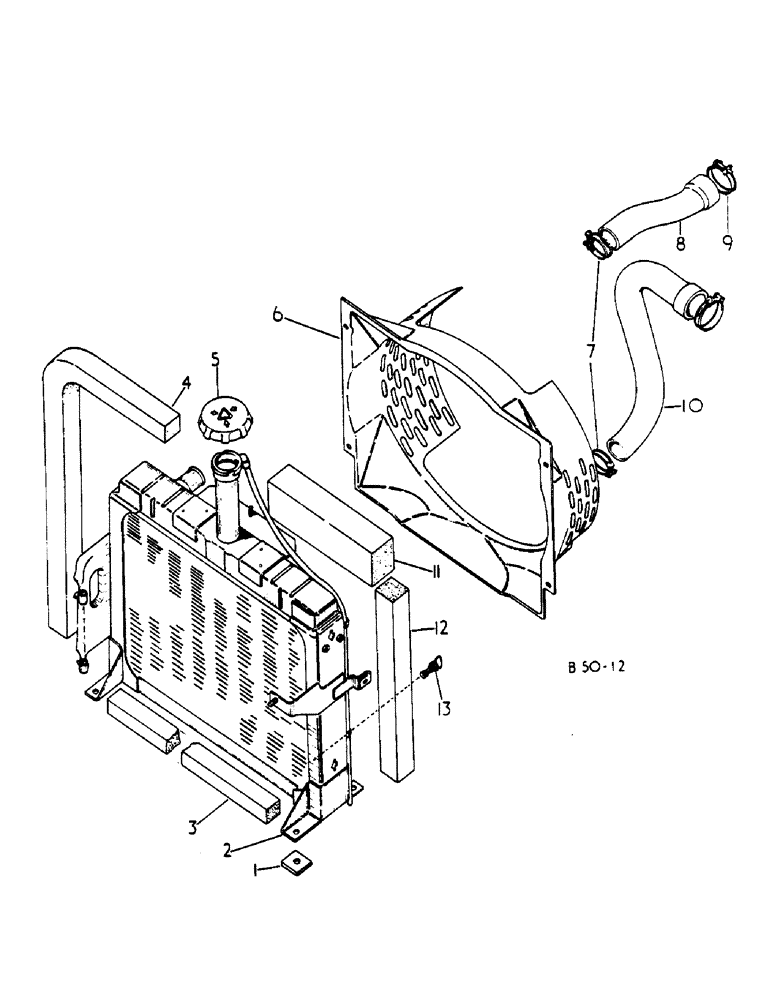

Запчасти Case IH 485 (00B14) - RADIATOR AND CONNECTIONS Cooling

1

47240D

PAD

RADIATOR

4шт.

496-21047

WASHER

.469 X .922 X .051

4шт.

2

3121412R91

RADIATOR

1шт.

353698X1

SCREW

7/16-14 X 1 HEX HD

4шт.

492-11044

LOCK WASHER,7/16"

4шт.

7500032

BUSHING

5/16-18 ZND

1шт.

3

537162R1

FILLING STRIP

LOWER RADIATOR

1шт.

4

GASKET, RADIATOR BAFFLE TOP AND SIDE

1шт.

73217C2

FILLING STRIP

FOAM - BULK LENGTH 4FT

1шт.

5

1500626C92

FILLER CAP

RADIATOR

1шт.

6

527474R2

HOUSING

SHROUD, FAN

1шт.

353665X1

SCREW

1/4-20 X 1/2 HEX HD CAP

4шт.

95-11028

WASHER,1/4"

9/32 X 5/8 X .051

4шт.

7

214-1424

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

2шт.

7

214-1424

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

Optional

2шт.

8

402191R1

HOSE,1.50" ID, 2.00" ID x 8.98", SAE 10R2

Inlet

1шт.

9

706081R91

CLAMP

HOSE

2шт.

9

706081R91

CLAMP

HOSE - OPTIONAL

2шт.

10

402189R1

LARGE HOSE,1.50" ID, 2.00" ID x 10.39", SAE 20R2

HOSE,LARGE Outlet

1шт.

11

GASKET, RADIATOR BAFFLE TOP

1шт.

11

3125488R1

RUBBER STRIP

SPARE PART FOAM - BULK LENGTH 4FT

1шт.

12

73217C2

FILLING STRIP

RADIATOR BAFFLE, SIDE

1шт.

13

3113083R1

PLUG, DRAIN

1шт.
