Запчасти Case IH 485 (00H12) - FENDER WIRING AND SIDE/FLASHER LIGHTS, DE-LUXE LIGHTING (06) - ELECTRICAL

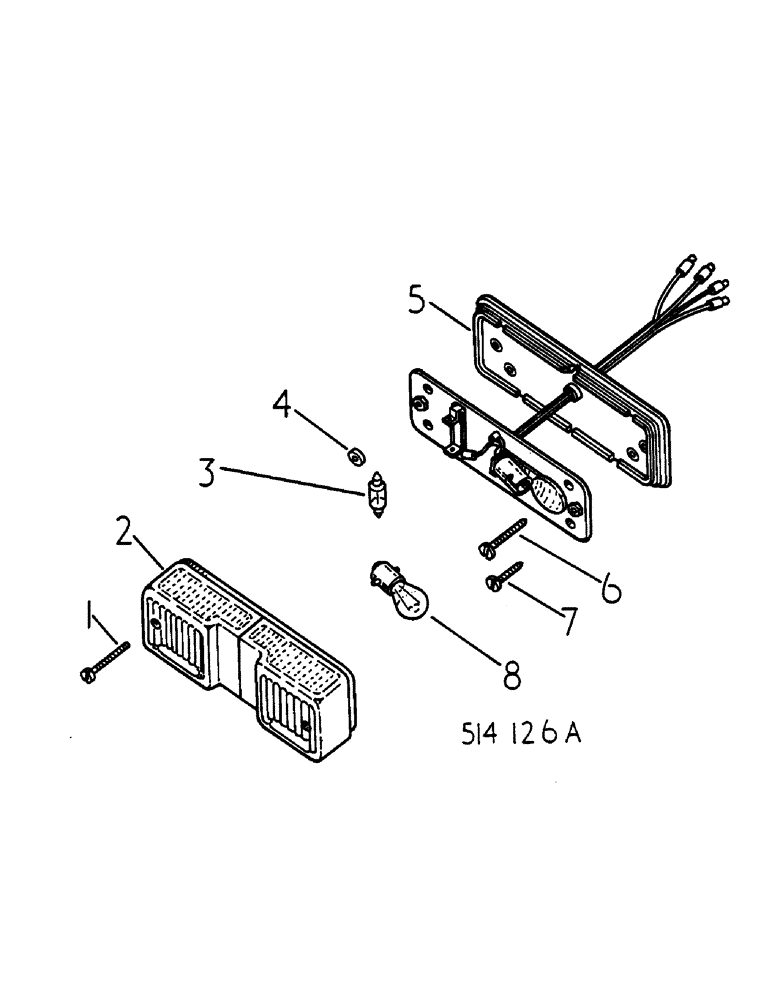

Схема запчастей Case IH 485 - (00H12) - FENDER WIRING AND SIDE/FLASHER LIGHTS, DE-LUXE LIGHTING (06) - ELECTRICAL
5
8
6
4
2
7
1
3

Артикул

Название

Примечание

Количество

3123575R91

WARNING LIGHT

SIDE AND FLASHER, LH

1шт.

3123141R91

LIGHT

SIDE AND FLASHER, RH

1шт.

463-11010

SCREW,Hex Hd, #10-24 x 5/8"

NO 10-24 X 5/8 HEX HD

8шт.

492-11010

LOCK WASHER,#10

8шт.

225-14110

NUT,#10-24

8шт.

1

3112785R1

SCREW

4BA X 1-1/2 ZINC PLTD

4шт.

2

3113395R1

LENS

CLEAR/AMBER

2шт.

3

8420/03010

BULB

12V 5W FESTOON

1шт.

4

3112786R1

WASHER

RETAINING

4шт.

5

3125160R1

CUSHION

BLACK RUBBER VERTICAL

2шт.

6

263-5448

SELF-TAP SCREW,Pan HD, #8 - 18 x 1/2"

NO 8 X 1/2 SELF TAPPING

4шт.

7

3112785R1

SCREW

NO 13-16 X 7/8 PAN HD STD

4шт.

8

3025210R91

BULB

12V 21W SCC

2шт.

1502204C1

HARNESS

FENDER (NOT ILLUSTRATED)

1шт.

3123189R2

HARNESS

FENDER - 484 - MACHINES W/SAFETY CAB - (NOT ILLUSTRATED), Serial Range: -5682

1шт.

3123189R2

HARNESS

FENDER - 248 - MACHINES W/SAFETY CAB - (NOT ILLUSTRATED), Serial Range: -687

1шт.

3125876R1

HARNESS

FENDER - FOR MACHINES W/SAFETY CAB - 484 - (NOT ILLUSTRATED), Start Serial: 5683

1шт.

3125876R1

HARNESS

FENDER - FOR MACHINES W/SAFETY CAB - 248 - (NOT ILLUSTRATED), Start Serial: 688

1шт.

708114R1

SPARE PART CABLE (NOT ILLUSTRATED)

2шт.

3113661R1

GROMMET

FENDER HARNESS (NOT ILLUSTRATED)

2шт.

705897R1

CONNECTOR, ELEC

CONNECTOR 1 WAY FENDER R H (NOT ILLUSTRATED)

2шт.

705897R1

CONNECTOR, ELEC

CONNECTOR 1 WAY NO PLATE (NOT ILLUSTRATED)

1шт.

705897R1

CONNECTOR, ELEC

CONNECTOR 1 WAY - MACHINES FITTED W/CAB - (NOT ILLUSTRATED)

4шт.

Выбрано товаров: 23
