Запчасти Case IH 485 (00H10) - FENDER WIRING AND LIGHTS, TRACTORS W/CROWN FENDERS (06) - ELECTRICAL

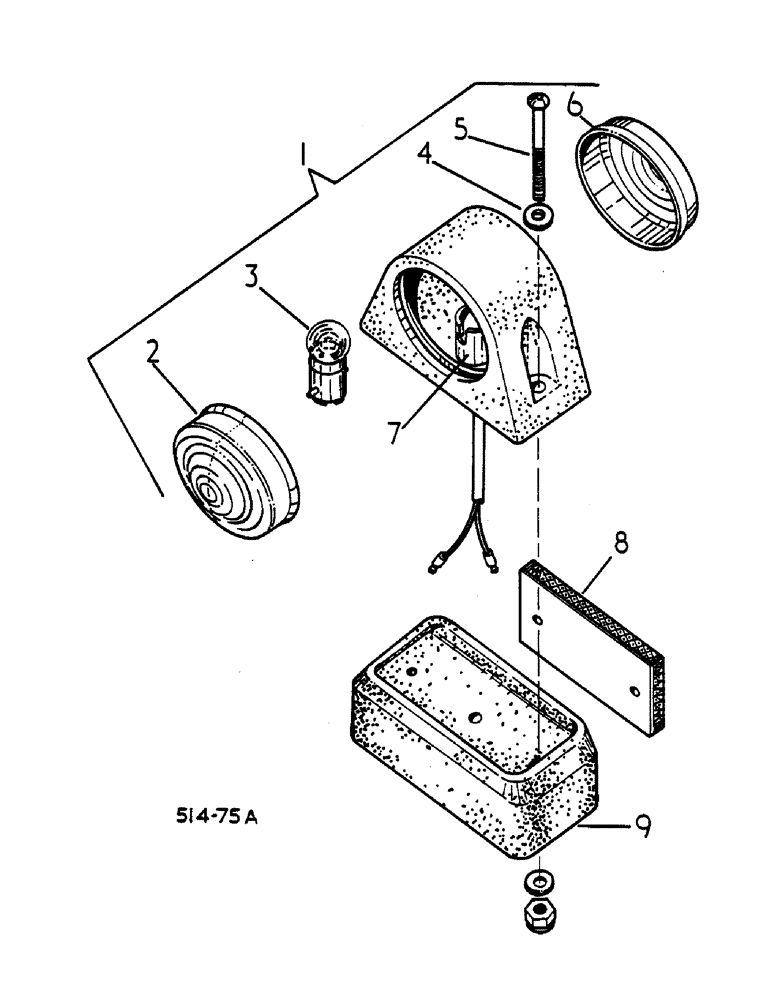

Схема запчастей Case IH 485 - (00H10) - FENDER WIRING AND LIGHTS, TRACTORS W/CROWN FENDERS (06) - ELECTRICAL
4
8
2
7
6
3
5
1
9

Артикул

Название

Примечание

Количество

1

3123175R91

LIGHT ASSY.

SIDE AND TAIL FENDER

2шт.

2

1094399R1

LENS

CLEAR

2шт.

3

8420/03011

BULB

12V 5W SBC BULB

2шт.

4

446152

HYD CONNECTOR

PLAIN

4шт.

5

3121291R1

SCREW

2BA X 2-1/4 PAN HD

4шт.

5

3062475R1

NUT

2BA

4шт.

93-81000

LOCK WASHER,Int Tooth, #10

LOCK NO 10 INT TOOTH

4шт.

6

3112860R1

LENS

RED

2шт.

7

3074005R91

HOLDER

LAMP BRACKET

2шт.

8

530041R1

REFLECTOR

FENDER

2шт.

9

NS

NOT SERVICED

BASE, FENDER SIDE AND TAIL

2шт.

705897R1

CONNECTOR, ELEC

CONNECTOR 1 WAY FENDER LH (NOT ILLUSTRATED)

2шт.

705897R1

CONNECTOR, ELEC

CONNECTOR 1 WAY FENDER RH (NOT ILLUSTRATED)

4шт.

705897R1

CONNECTOR, ELEC

CONNECTOR 1 WAY NO PLATE (NOT ILLUSTRATED)

1шт.

705896R1

CONNECTOR, ELEC

CONNECTOR 2 WAY NO PLATE (NOT ILLUSTRATED)

1шт.

3123188R1

HARNESS

FENDER (NOT ILLUSTRATED)

1шт.

Выбрано товаров: 16
