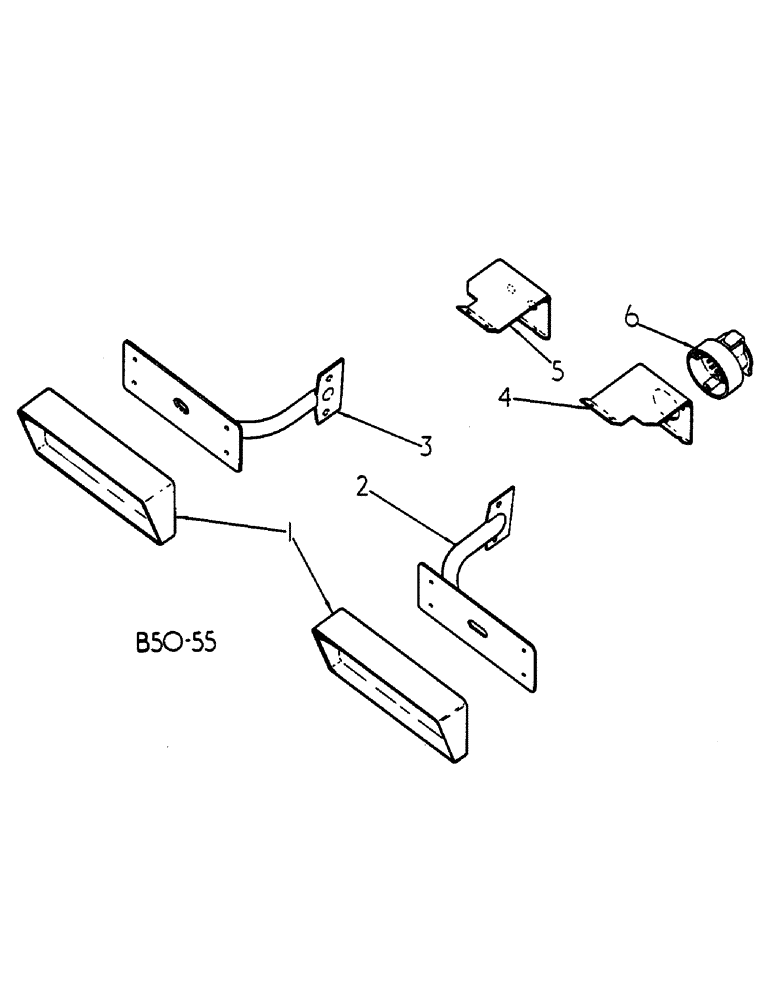

Запчасти Case IH 485 (00H04) - CAB LIGHT SUPPORTS AND 7 PIN SOCKET (06) - ELECTRICAL

1

3123140R1

COVER

SIDE AND FLASHER LIGHTS

1шт.

2

1500564C1

SUPPORT

LH LIGHT SUPPORT

1шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

2шт.

493-81002

LOCK WASHER,Ext-Int Tooth, 1/4"

2шт.

3

1500565C1

SUPPORT

TUBE ASSY, RH LIGHT

1шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

2шт.

493-81002

LOCK WASHER,Ext-Int Tooth, 1/4"

2шт.

4

3123184R1

BRACKET

LH 7 PIN SOCKET

1шт.

440-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

4шт.

225-14110

NUT,#10-24

4шт.

492-11010

LOCK WASHER,#10

4шт.

5

3123185R1

BRACKET

RH PLOUGH LIGHT

1шт.

440-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

4шт.

225-14110

NUT,#10-24

4шт.

120217

LOCK WASHER,#10

484, Serial Range: -5682

4шт.

120217

LOCK WASHER,#10

248, Serial Range: -687

4шт.

6

3112294R91

SOCKET/RECEPTACLE

7 PIN

1шт.

27683R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1 1/4"

NO 10-16 X 1-1/4 PAN HD TAP

3шт.

3123171R2

NUT

NO 10 SPIRE FASTENER

3шт.
