Запчасти Case IH 485 (00H01) - ELECTRICAL SWITCHES AND FUSES (06) - ELECTRICAL

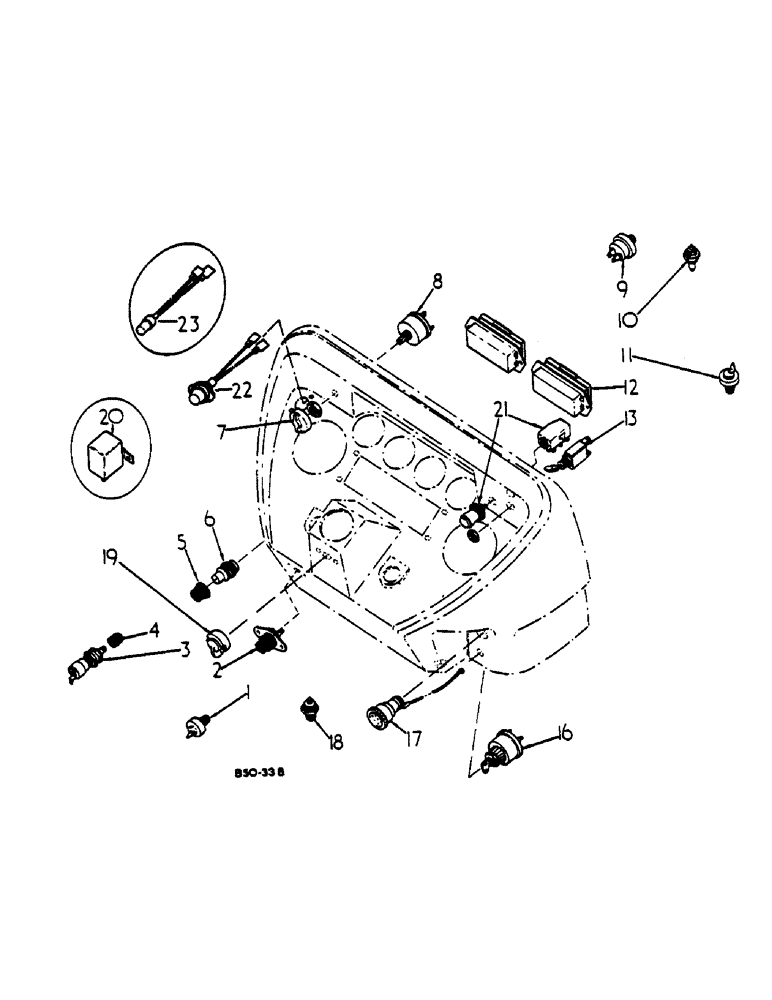

Схема запчастей Case IH 485 - (00H01) - ELECTRICAL SWITCHES AND FUSES (06) - ELECTRICAL
17
20
10
22
13
7
1
19
5
12
23
11
4
3
9
8
21
6
2
16
18

Артикул

Название

Примечание

Количество

1

3118643R1

SWITCH

TRANS OIL PRESSURE

1шт.

1

3129031R91

SWITCH

TRANS OIL PRESSURE - OPTIONAL, Serial Range: -4820

1шт.

1

3129031R91

SWITCH

TRANS OIL PRESSURE - OPTIONAL, 248, Serial Range: -635

1шт.

1

444614

PLUG,Hex Hd, 1/8"-27, Brass

PIPE 1/8-27 NPTF

1шт.

1

217-428

PLUG,Hex Soc, 1/8" - 27 NPTF

PIPE 1/2-27 NPTF - OPTIONAL - ON ORDERS FOR EITHER PLUG FURNISH ELBOW 1500561C1

1шт.

2

SWITCH ASSY, PUSH BUTTON - SEE COLD START ATTACHMENT ETHER

1шт.

3

529461R93

SWITCH ASSY

PARK BRAKE WARNING

1шт.

4

534351R1

COVER

WARNING LIGHT SWITCH

1шт.

5

1288026C1

COVER

HORN SWITCH

1шт.

6

K19903

IGNITION SWITCH

HORN

1шт.

7

3121405R1

KNOB

LIGHT SWITCH

1шт.

8

3121404R1

LIGHT SWITCH

LIGHT-FLASHER

1шт.

3123107R1

WASHER

LIGHT SWITCH

1шт.

3123108R1

NUT

LIGHT SWITCH

1шт.

9

3224405R91

RESTRICTION SWITCH

AIR CLEANER RESTRICTION INDICATOR

1шт.

10

3073787R91

TRANSMITTER

WATER TEMP - A C DELCO

1шт.

10

3127956R1

TEMPERATURE SENDER

WATER TEMP - ICKNIELD - OPTIONAL

1шт.

11

3129031R91

SWITCH

OIL PRESSURE - ENGINE

1шт.

12

BOX, FUSE

2шт.

3123157R1

COVER

FUSE BOX

2шт.

159929

SCREW,Cross Pan Hd, #10 - 24 x 5/8"

4шт.

225-14110

NUT,#10-24

Machine screw

4шт.

492-11010

LOCK WASHER,#10

4шт.

3118918R1

FUSE

10 AMP

4шт.

NLS

NO LONGER SERVICED

10 AMP - OPTIONAL

4шт.

3115813R1

FUSE

35 AMP

6шт.

3115813R1

FUSE

35 AMP - OPTIONAL

6шт.

13

3125854R2

DIP SWITCH

DIP

1шт.

14

NOT APPLICABLE

1шт.

15

NOT APPLICABLE

1шт.

16

3107556R93

IGNITION SWITCH

1шт.

534211R1

SPRING WASHER

LOCK

1шт.

17

3121407R92

LIGHTER, CIGARETTE

1шт.

3123432R1

CABLE

CIGAR LIGHTER TO EARTH, FLYING LEAD

1шт.

18

NOT APPLICABLE

1шт.

19

3072070R92

SWITCH

FLASHER

1шт.

182-48

SCREW,Sl Pan Hd, #6 - 32 x 3/4"

NO 6-32 X 3/4 ZND SLT RD HD MACH

2шт.

3121717R1

LOCK NUT

LOKUT

2шт.

20

3118909R2

FLASHER UNIT

1шт.

21

3118917R91

SWITCH ASSY

HAZARD WARNING

1шт.

22

3125983R1

LIGHT ASSY.

PARK BRAKE WARNING

1шт.

440-1068

SCREW,Cross Pan Hd, #6-32 x 1/2"

2шт.

704551

NUT

NO 6-32 ZND

2шт.

700703830

WASHER

156 X .375 X .036 ZND

2шт.

492-11006

LOCK WASHER,#6

, Start Serial: 5395

2шт.

492-11006

LOCK WASHER,#6

248, Start Serial: 647

2шт.

23

3125984R2

FLASHER UNIT

PARK BRAKE WARNING

1шт.

539015R1

CLIP

CABLE

1шт.

289862C1

CABLE TIE,3/16" x 7"

CABLE STRAP, Start Serial: 5395

1шт.

289862C1

CABLE TIE,3/16" x 7"

CABLE STRAP 248, Start Serial: 647

1шт.

3125854R2

DIP SWITCH

PLOUGH LAMP (NOT ILLUSTRATED)

1шт.

3125854R2

DIP SWITCH

PLOUGH LAMP - OPTIONAL - (NOT ILLUSTRATED)

1шт.

496-21047

WASHER

PLAIN, 484 (NOT ILLUSTRATED), Start Serial: 5683

1шт.

496-21047

WASHER

PLAIN, 248 (NOT ILLUSTRATED), Start Serial: 688

1шт.

Выбрано товаров: 54
