(00G22) - BRAKE LIGHT SWITCH, MACHINES FITTED W/FLAT TOP FENDERS, SAFETY CAB OR SUPER DELUXE CAB

Запчасти Case IH 485 (00G22) - BRAKE LIGHT SWITCH, MACHINES FITTED W/FLAT TOP FENDERS, SAFETY CAB OR SUPER DELUXE CAB (06) - ELECTRICAL

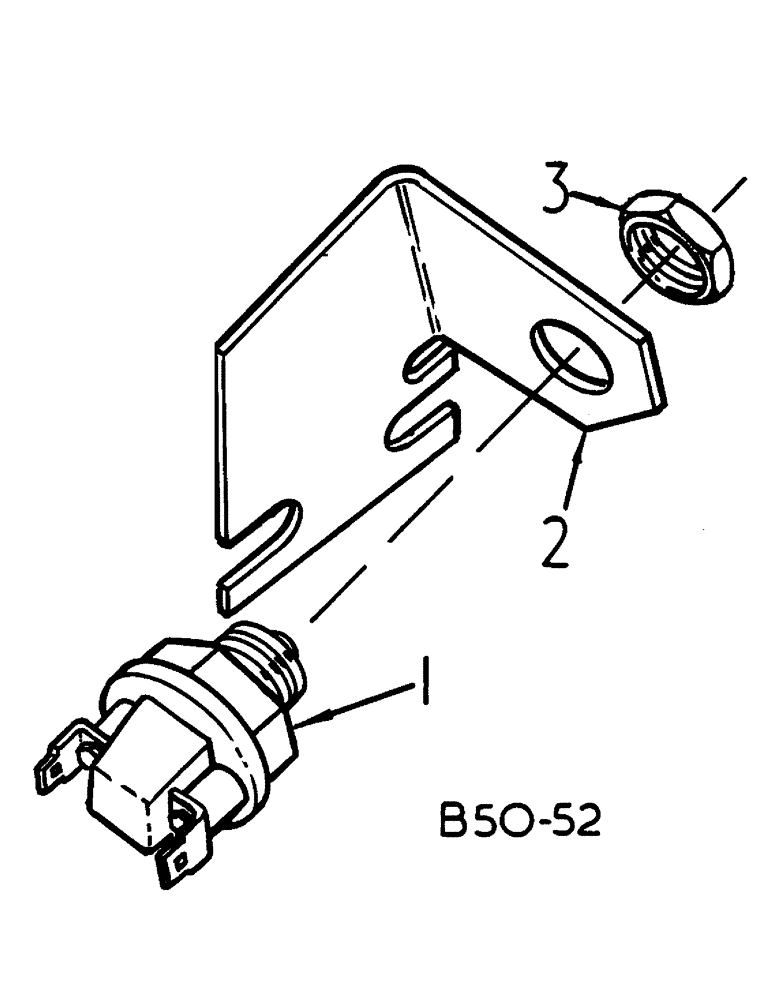

Схема запчастей Case IH 485 - (00G22) - BRAKE LIGHT SWITCH, MACHINES FITTED W/FLAT TOP FENDERS, SAFETY CAB OR SUPER DELUXE CAB (06) - ELECTRICAL
3
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

231261A1

NEUTRAL START SWITCH

BRAKE LIGHT

1шт.

2

531634R2

BRACKET

BRAKE LIGHT SWITCH

1шт.

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

2шт.

492-11038

LOCK WASHER,3/8"

2шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .051)

2шт.

3

3121758R1

LOCK NUT

3/4-10 HEX

1шт.

Выбрано товаров: 6
