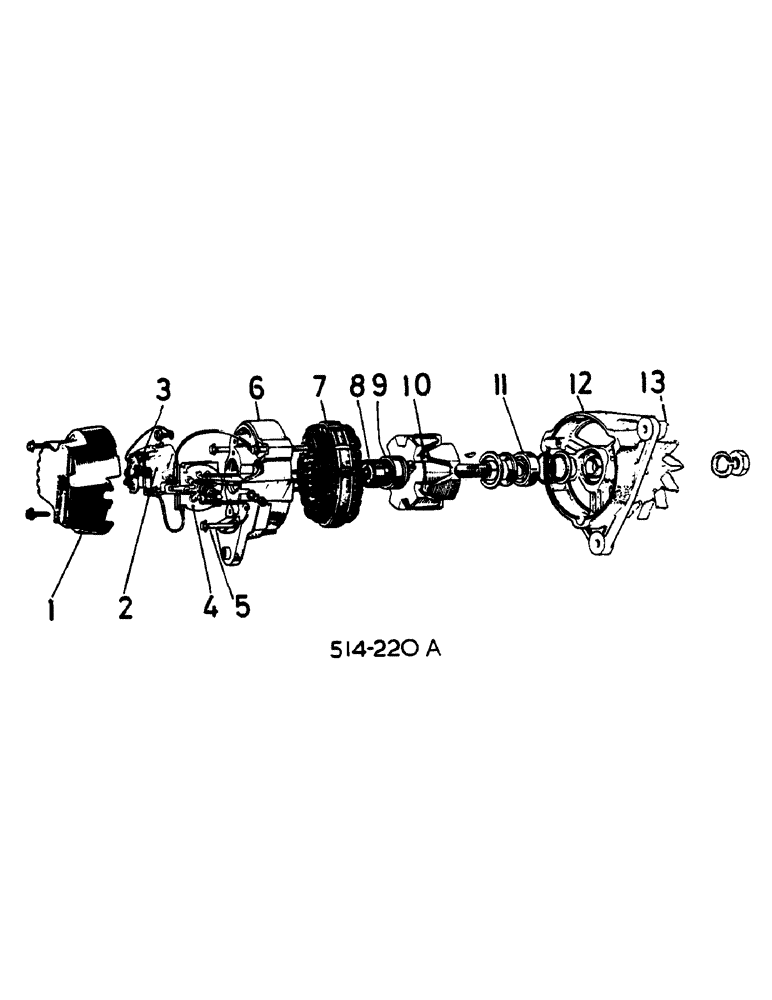

Запчасти Case IH 485 (00G18) - ALTERNATOR (06) - ELECTRICAL

*

ALTERNATOR, LUCAS 15 ACR - LUCAS NO 54021569

1шт.

*

92293C1R

REMAN-ALTERNATOR

LUCAS 17 ACR - LUCAS NO 23962

1шт.

*

92293C1C

CORE-ALTERNATOR

Return Number

1шт.

1

3116086R1

COVER

1шт.

2

3116094R91

BRUSH HOLDER

HOLDER, BRUSH BRUSH BOX ASSY W/BRUSH KIT 3116099R91

1шт.

*

3116099R91

BRUSH SET

1шт.

3

3116087R3

REGULATOR

1шт.

4

3116088R1

RECTIFIER

1шт.

5

3116095R1

BOLT

FIXING

3шт.

6

3116092R1

BRACKET

SRE

1шт.

7

3116093R1

STATOR

15 ACR ALTERNATOR

1шт.

7

3125134R1

STATOR

SPARE PART 17 ACR ALTERNATOR

1шт.

8

130800090724

BUSHING

SLIP

1шт.

9

3116098R91

BEARING ASSY

BEARING, SRE

1шт.

10

3125130R91

ROTOR ASSY.

15 ACR ALTERNATOR

1шт.

10

3125133R91

ROTOR ASSY.

17 ACR ALTERNATOR - W/RING 3116097R1 AND BEARING 3116098R91

1шт.

11

3116096R91

BEARING ASSY

KIT DE

1шт.

12

3116089R91

BRACKET

DRIVE END

1шт.

13

3117067R1

FAN

ALTERNATOR

1шт.

*

3116090R91

KIT

SPARE PART PARTS SUNDRY (NOT ILLUSTRATED)

1шт.

*

3123891R1

RECTIFIER

15 ACR ALTERNATOR - (NOT ILLUSTRATED)

1шт.

*

3118367R1

RECTIFIER

(NOT ILLUSTRATED)

1шт.

*

3125297R1

CAPACITOR

17 ACR ALTERNATOR - (NOT ILLUSTRATED)

3шт.

*

3123891R1

RECTIFIER

(NOT ILLUSTRATED)

3шт.
