(00G11) - NEUTRAL SAFETY SWITCH, UP TO 485/7099, UP TO 248/815

Запчасти Case IH 485 (00G11) - NEUTRAL SAFETY SWITCH, UP TO 485/7099, UP TO 248/815 (06) - ELECTRICAL

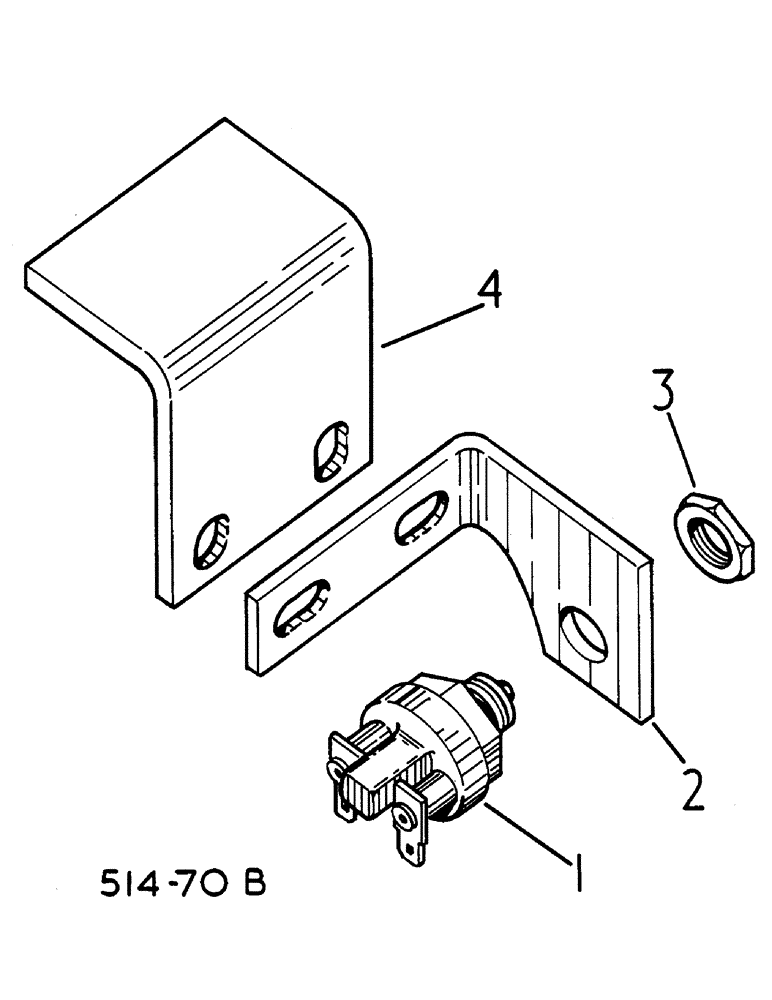

Схема запчастей Case IH 485 - (00G11) - NEUTRAL SAFETY SWITCH, UP TO 485/7099, UP TO 248/815 (06) - ELECTRICAL
4
2
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

3114409R92

NEUTRAL START SWITCH

NEUTRAL SAFETY

1шт.

2

531203R2

BRACKET

SAFETY SWITCH MOUNTING

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

492-11038

LOCK WASHER,3/8"

2шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .051)

2шт.

3

3112570R1

NUT

SAFETY SWITCH

1шт.

4

3121286R1

ANGLE

CLUTCH - MACHINES FITTED W/CAB

1шт.
