Запчасти Case IH 485 (B05-3) - CAB INSULATORS - DE-LUXE CAB (05) - SUPERSTRUCTURE

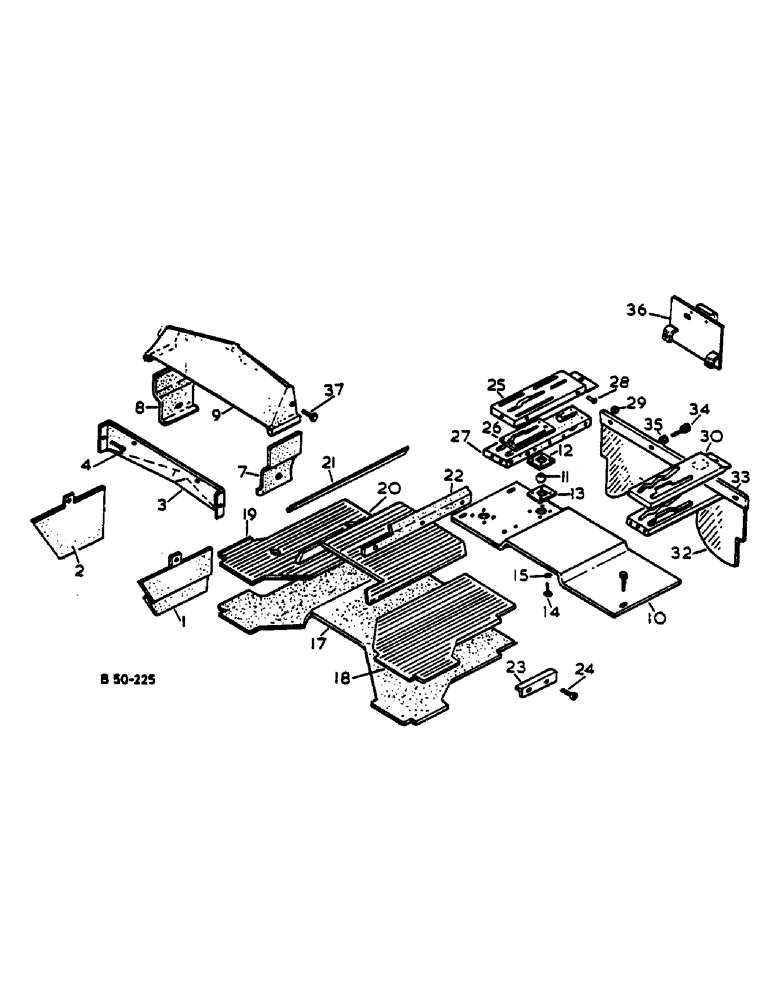

Схема запчастей Case IH 485 - (B05-3) - CAB INSULATORS - DE-LUXE CAB (05) - SUPERSTRUCTURE
26
7
12
4
35
27
23
24
37
8
18
3
33
13
9
30
2
11
1
15
22
32
14
29
36
25
10
21
20
19
34
17
28

Артикул

Название

Примечание

Количество

1

3125676R1

PLATE

COVER LH

1шт.

2

3125677R1

PLATE

SPARE PART COVER RH

1шт.

3

3125410R1

PLATE

FRONT

1шт.

4

3125520R1

SCREW

M5 X 12 SELF TAPPING

4шт.

5

3125678R1

PANEL

SPARE PART TOP FIREWALL

1шт.

6

3125679R1

PANEL

BOTTOM FIREWALL

1шт.

7

3125680R1

PLATE

SPARE PART INST PANEL COVER LH

1шт.

8

3125681R1

PLATE

SPARE PART INST PANEL COVER RH

1шт.

9

3125682R1

PLATE

SPARE PART INST PANEL FRONT COVER

1шт.

10

3125683R1

PLATFORM

SPARE PART

1шт.

11

3125517R1

BALL

1шт.

12

3125519R1

SOCKET/RECEPTACLE

1шт.

13

3125518R1

SOCKET/RECEPTACLE

1шт.

14

3125520R1

SCREW

M5 X 12 SELF TAPPING

4шт.

15

K651776

WASHER

TOOTHED

4шт.

16

3125367R1

SCREW

M8 X 15 SELF TAPPING

4шт.

17

3125684R1

INSULATOR

FLOOR

1шт.

18

3125685R1

MAT

RUBBER LH

1шт.

19

3125686R1

MAT

RUBBER RH

1шт.

20

3125687R1

MAT

SPARE PART TRANSMISSION HOUSING

1шт.

21

3125689R1

STRIP

RUBBER MAT COVER RH

1шт.

22

3125688R1

STRIP

RUBBER MAT COVER LH

1шт.

23

3125690R1

STRIP

RUBBER MAT COVER

2шт.

24

3125691R1

SCREW

SPARE PART 5/8 NO 8 SELF TAPPING

4шт.

25

3125692R1

SECTOR

SPARE PART LIFT - STANDARD

1шт.

26

3125694R1

PLATE

SPARE PART REINFORCING

1шт.

27

3125695R1

INSULATOR

FOAM

1шт.

28

3125696R1

RIVET

SPARE PART 3 X 12 TUBULAR

4шт.

29

3125380R1

COVER

TUBULAR RIVET

4шт.

30

3125697R1

SECTOR

GEAR

1шт.

31

3125698R1

PLATE

SPARE PART REINFORCING

1шт.

32

3125699R1

PLATE

COVER REAR

1шт.

33

3125700R1

PLATE

SPARE PART CLAMP

1шт.

34

3125701R1

BOLT

M5

4шт.

35

934871R1

NUT,M5, Cl 5

M5

4шт.

36

3125702R1

PLATE

SPARE PART NUMBER

1шт.

37

K303952

SCREW,M5 x 0.8 x 18mm, Steel

M5 X 18 FINGER

2шт.

PLATFORM ASSY, RH (NOT ILLUSTRATED)

1шт.

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

(Not Illustrated)

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

Not Illustrated

2шт.

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

(Not Illustrated)

1шт.

492-11038

LOCK WASHER,3/8"

(Not Illustrated)

1шт.

PLATFORM ASSY, LH (NOT ILLUSTRATED)

1шт.

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

(Not Illustrated)

1шт.

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

(Not Illustrated)

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

Not Illustrated

2шт.

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

(Not Illustrated)

1шт.

492-11038

LOCK WASHER,3/8"

(Not Illustrated)

1шт.

412-612

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 3/4", Gr 2

3/8-16 X 3/4 SHORT SQ (NOT ILLUSTRATED))

2шт.

492-11038

LOCK WASHER,3/8"

(Not Illustrated)

2шт.

425-106

NUT,3/8"-16, Cl 5

Not Illustrated

2шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .051), Not Illustrated

2шт.

20

1/4-20 X 5/8 C-Z SLT PAN HD MACHINE (NOT ILLUSTRATED)

2шт.

492-11025

LOCK WASHER,1/4"

Not Illustrated

2шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

Not Illustrated

2шт.

528909R1

SPACER

LH PLATFORM (NOT ILLUSTRATED)

1шт.

Выбрано товаров: 56
