Запчасти Case IH 485 (A22-3) - HEATER - SUPER DE-LUXE CAB (05) - SUPERSTRUCTURE

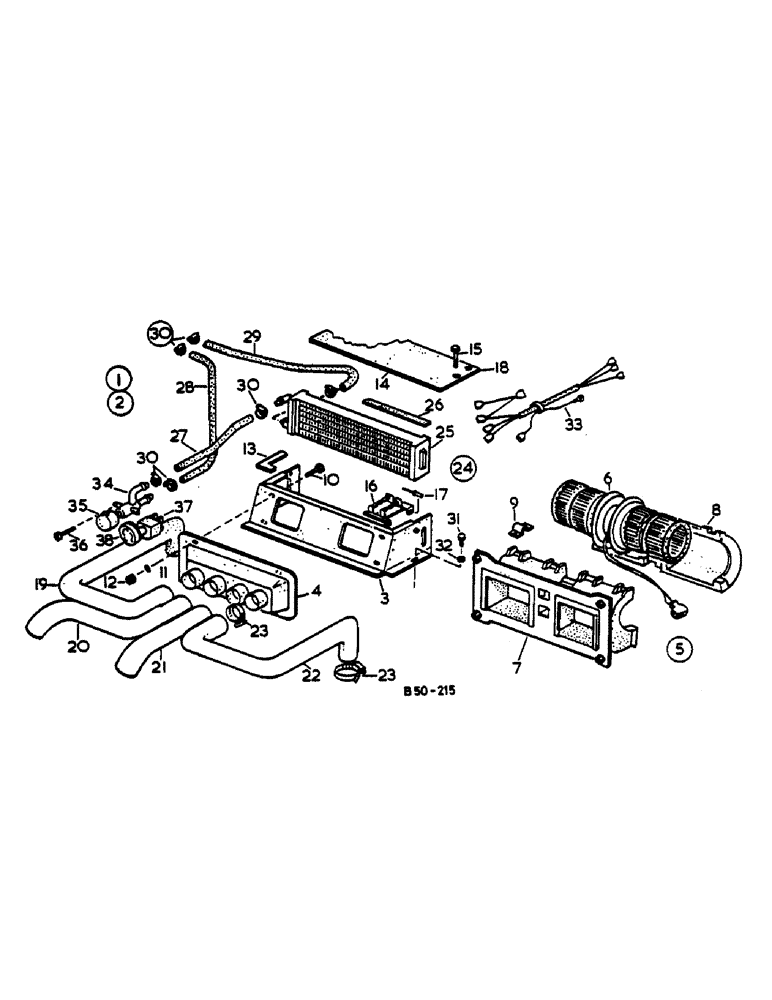

Схема запчастей Case IH 485 - (A22-3) - HEATER - SUPER DE-LUXE CAB (05) - SUPERSTRUCTURE
14
25
28
26
10
8
38
2
34
21
30
24
19
4
30
11
9
32
3
1
12
33
37
20
23
7
13
30
16
5
22
15
29
31
6
35
27
17
36
18
23

Артикул

Название

Примечание

Количество

1

3125490R91

HEATER

UNIT CPTE

1шт.

2

3125491R91

FAN

SPARE PART CPTE W/HSG

1шт.

3

3125492R1

HOUSING

SPARE PART

1шт.

4

3125493R1

BOX

DISTRIBUTION

1шт.

5

K965611

FAN

1шт.

6

3125494R1

MOTOR, ELECTRIC

WITH ROTOR

1шт.

7

3125495R1

HOUSING

1шт.

8

3125496R1

HOUSING

1шт.

9

3125497R1

CLIP

2шт.

9

3125498R1

CLIP

SPARE PART

8шт.

10

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

Set

4шт.

11

AP00165310

WASHER

5/16

4шт.

12

832-41308

NUT,M8 x 1.25, Cl 10

Self Lock

4шт.

13

K303708

STRIP

FOAM RUBBER

1шт.

14

3125500R1

COVER

HOUSING

1шт.

15

264-20316

SELF-TAP SCREW,Slotted Pan Hd, #6 x 1"

SELF TAPPING

3шт.

16

3123865R1

RESISTOR

1шт.

17

NS

NOT SERVICED

1шт.

18

3125501R1

PLUG

RUBBER

2шт.

19

3123282R1

HOSE,63.5 mm ID x 1000.00

FLEXIBLE - FRONT TRIM LH

1шт.

20

3123284R1

HOSE,63.5 mm ID x 700.00

FLEXIBLE - REAR TRIM LH

1шт.

21

3123283R1

HOSE,63.5 mm ID x 230.00

FLEXIBLE - REAR TRIM RH

1шт.

22

3125502R1

HOSE

FLEXIBLE - FRONT TRIM RH

1шт.

23

3125503R1

CLAMP

HOSE

8шт.

24

3125504R91

RADIATOR

CPTE

1шт.

25

3125505R1

RADIATOR

1шт.

26

K303708

STRIP

FOAM

1шт.

27

3125506R1

HOSE

SPARE PART VALVE TO RADIATOR

1шт.

28

3125507R1

HOSE

VALVE TO FRAME

1шт.

29

3125508R1

HOSE

RADIATOR TO FRAME

1шт.

30

274085R91

HOSE CLAMP,#10, 0.56/1.06 Type F Worm

NO 10

6шт.

31

712684R1

SCREW,Sltd Pan Hd, M5 x 10

M5 X 12 CHEESE HD

2шт.

32

493-81002

LOCK WASHER,Ext-Int Tooth, 1/4"

2шт.

33

3125509R1

HARNESS

WIRING HEATER UNIT

1шт.

34

3123760R1

VALVE

REGULATING

1шт.

35

3123761R1

BUTTON

KNOB, REGULATING VALVE

1шт.

36

3125486R1

SCREW

M4 X 15 CHEESE HD

2шт.

37

3123856R1

BLOWER SWITCH

FAN

1шт.

38

3123857R1

KNOB

FAN SWITCH

1шт.

3125510R1

COVER

SPARE PART AIR INLET (NOT ILLUSTRATED)

2шт.

Выбрано товаров: 40
