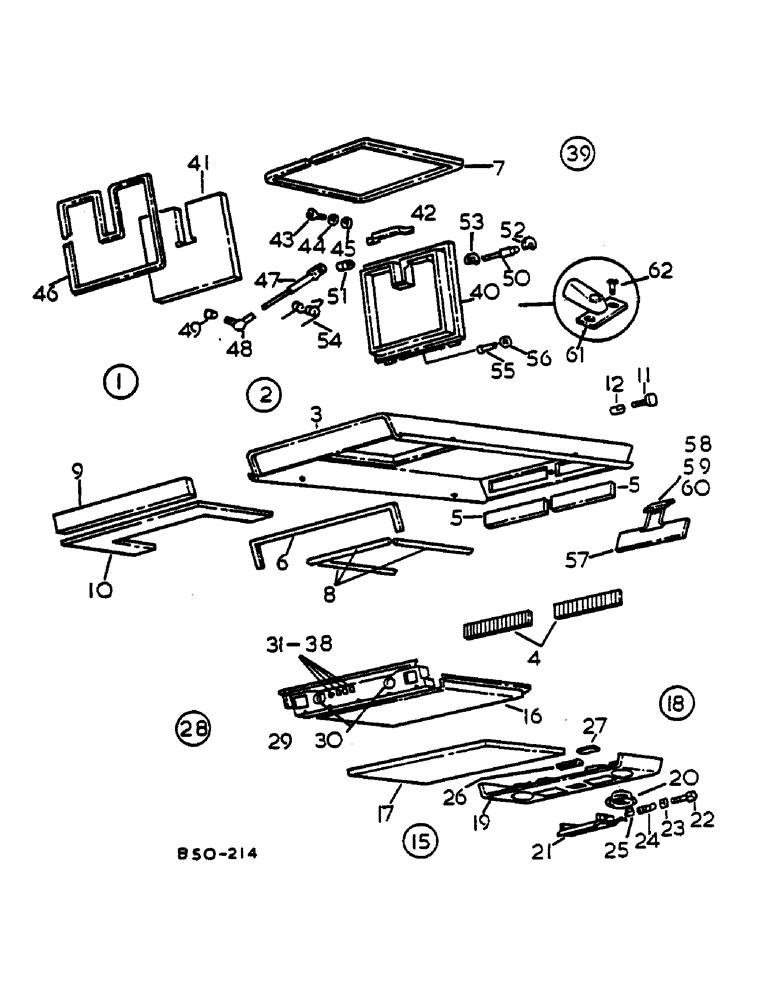

Запчасти Case IH 485 (A18-3) - OUTER ROOF PANEL - SUPER DE-LUXE CAB (05) - SUPERSTRUCTURE

1

3125467R91

PANEL

SPARE PART ROOF COMPLETE

1шт.

2

3125468R91

PANEL

OUTER ROOF COMPLETE

1шт.

3

3125468R91

PANEL

PANEL, OUTER

1шт.

4

3123830R1

GRILLE

AIR INTAKE

2шт.

5

3123829R1

CAB FILTER

2шт.

6

K965583

SEALING STRIP

FRONT AND REAR

2шт.

7

3123823R1

STRIP, SEALING ROOF HATCH

4шт.

8

3123831R1

SEALING STRIP

SPARE PART

3шт.

9

3125470R1

INSULATOR

FOAM

1шт.

10

3125471R1

INSULATOR

FOAM

1шт.

11

3125367R1

SCREW

M8 X 15 SELF TAPPING

4шт.

12

3125473R1

WASHER

OVAL

4шт.

13

NOT APPLICABLE

1шт.

14

3125474R91

PANEL

SPARE PART INNER ROOF COMPLETE

1шт.

15

3125475R1

PANEL

INNER ROOF

1шт.

16

3125476R1

INSULATOR

FOAM

1шт.

17

3125477R91

INSULATOR

FRONT ROOF CPTE

1шт.

18

3125478R1

INSULATOR

FRONT ROOF

1шт.

19

3123849R1

VENT

AIR

2шт.

20

3123847R1

MUDFLAP

SHUTTER, AIR INTAKE

2шт.

21

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

4шт.

22

933346R1

WASHER,M6 x 12 x 1.6

1/4

12шт.

23

3123848R1

SPRING

4шт.

24

1441500X1

LOCK NUT

M6 SELF LOCKING

4шт.

25

3125480R1

COURTESY LIGHT

DOME LIGHT

1шт.

26

8420/03010

BULB

12V 5W

1шт.

27

3125481R91

INSULATOR

SPARE PART REAR ROOF CPTE

1шт.

28

3125482R1

INSULATOR

REAR ROOF

1шт.

29

3123849R1

VENT

AIR

2шт.

30

3125483R1

SWITCH

WORK LIGHT

1шт.

31

3125484R1

SWITCH

WINDSHIELD WASHER

1шт.

32

K303728

SWITCH

WIPER

1шт.

33

3123856R1

BLOWER SWITCH

FAN

1шт.

34

3123857R1

KNOB

FAN SWITCH

1шт.

35

3123760R1

VALVE

FLOW CONTROL

1шт.

36

3123761R1

BUTTON

FLOW CONTROL VALVE

1шт.

37

3125486R1

SCREW

M4 X 15 CHEESE HD

2шт.

38

3129043R91

DOOR

ROOF CPTE, Serial Range: -19483

1шт.

38

3129043R91

DOOR

ROOF CPTE, Start Serial: 19484

1шт.

39

- NOT APPLICABLE -

1шт.

40

3123833R1

INSULATOR

HATCH

1шт.

41

K965596

HANDLE

GRAB

1шт.

42

712684R1

SCREW,Sltd Pan Hd, M5 x 10

M5 X 12 CHEESE HD

2шт.

43

K651776

WASHER

M5 TOOTH

2шт.

44

934871R1

NUT,M5, Cl 5

M5

2шт.

45

K965583

SEALING STRIP

1шт.

46

3123835R1

CYLINDER, GAS

1шт.

47

K303757

BALL JOINT

GAS STRUT

1шт.

48

NUT, M6

1шт.

493-81002

LOCK WASHER,Ext-Int Tooth, 1/4"

1шт.

49

3123837R1

PIN

GAS STRUT

1шт.

50

3123838R1

SPACER

GAS STRUT PIVOT PIN

1шт.

51

K653509

RING, SNAP

RING SNAP RETAINING

1шт.

52

3123841R1

CLIP

RING, RETAINING

1шт.

53

3123839R1

SPRING

1шт.

54

3123843R1

PIN

HINGE

2шт.

55

3123844R1

RING

RETAINING

4шт.

56

3123867R1

VISOR, SUN

1шт.

57

3125489R1

SCREW

M5 X 25 C/SUNK

3шт.

58

K651776

WASHER

TOOTHED

3шт.

59

934871R1

NUT,M5, Cl 5

M5

3шт.

60

3123842R1

PAWL

LOCKING ROOF HATCH, Serial Range: -19483

1шт.

60

3129042R1

PAWL

LOCKING ROOF HATCH, Start Serial: 19484

1шт.

61

264-20316

SELF-TAP SCREW,Slotted Pan Hd, #6 x 1"

SELF TAPPING

2шт.
