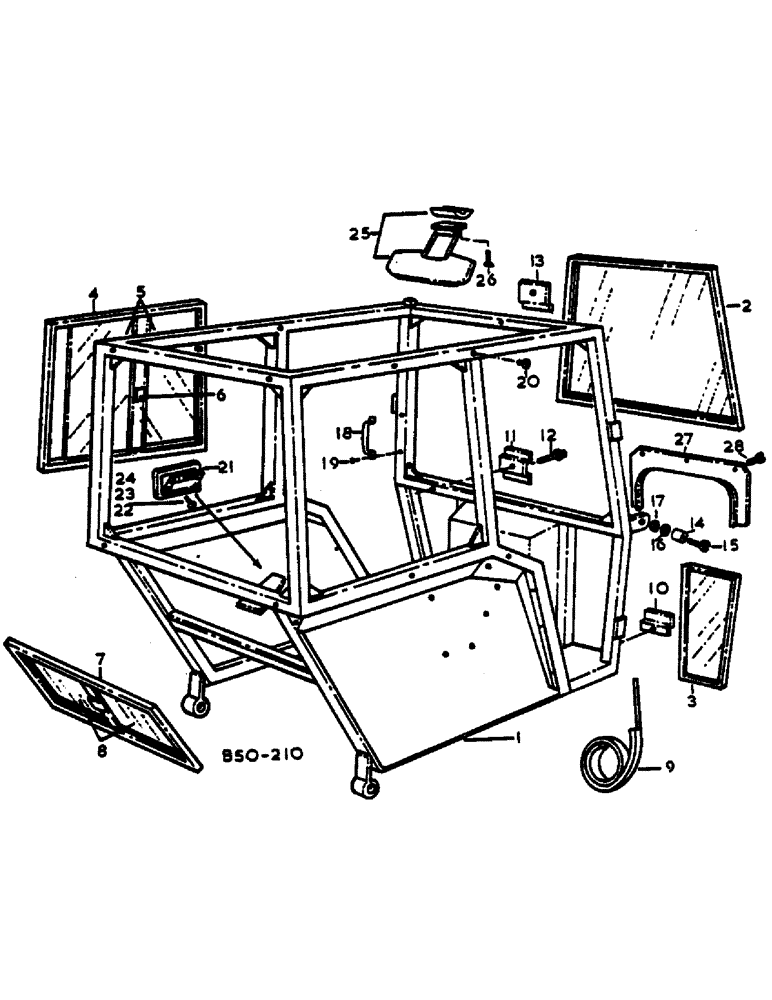

Запчасти Case IH 485 (A08-3) - FRAME AND WINDOWS - SUPER DE-LUXE CAB (05) - SUPERSTRUCTURE

1

3125385R1

FRAME

CAB MAIN

1шт.

2

3125386R1

WINDSHIELD

1шт.

3

3125387R1

WINDOW

PLOUGH LH

1шт.

3

3125388R1

WINDOW

PLOUGH RH

1шт.

4

3125389R1

WINDOW

SLIDING LH

1шт.

4

3125390R1

WINDOW

SLIDING RH

1шт.

5

3125391R1

GLASS

SLIDING WINDOW - STRAIGHT

2шт.

5

3125392R1

GLASS

SLIDING WINDOW - SLANTING

2шт.

6

K965456

HANDLE

SLIDING WINDOW 1 SET

1шт.

7

3125394R1

WINDOW

REAR SLIDING

1шт.

8

3125395R1

GLASS

REAR SLIDING WINDOW - SLIDING GLASS

1шт.

8

3125396R1

GLASS

REAR SLIDING WINDOW - FIXED GLASS

1шт.

9

3125397R1

STRIP

SEALING

1шт.

10

K303811

WASHER

WINDOW - SINGLE

10шт.

11

3125399R1

CLIP

WINDOW - DOUBLE

2шт.

12

3125520R1

SCREW

M5 X 12 SELF TAPPING

12шт.

13

3125400R1

CLIP

WINDOW

1шт.

14

3125401R1

HOLDER

DOOR

2шт.

15

3125402R1

SCREW

SPARE PART M6 X 20 CHEESE HD

2шт.

16

933346R1

WASHER,M6 x 12 x 1.6

1/4

2шт.

17

829-1306

NUT,M6, Cl 10

2шт.

18

K303698

HANDLE

GRAB

2шт.

19

3125548R1

SCREW

M5 X 16 SELF TAPPING

4шт.

20

3125405R1

STOP

4шт.

21

3125406R1

TRAY

ASH

1шт.

22

3125407R1

SCREW

SPARE PART M4 X 25 CHEESE HD

2шт.

23

K651776

WASHER

3/16

2шт.

24

3125408R1

NUT

SPARE PART M4

2шт.

25

3123867R1

VISOR, SUN

1шт.

26

3125409R1

SCREW

SELF TAPPING

3шт.

27

3125410R1

PLATE

FRONT

1шт.

28

3125520R1

SCREW

M5 X 12 SELF TAPPING

7шт.

2752300R1

PRODUCT GRAPHIC

INTERNATIONAL (NOT ILLUSTRATED)

1шт.

1093182R1

CAUTION DECAL

CAUTION (NOT ILLUSTRATED)

1шт.
