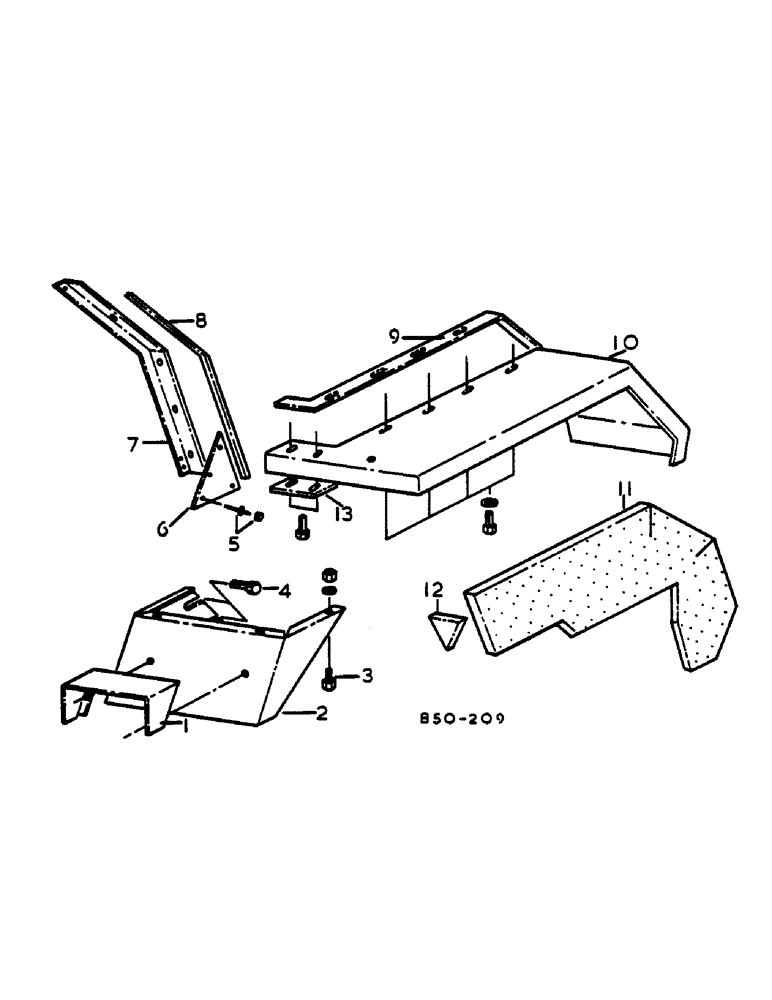

Запчасти Case IH 485 (A06-3) - FENDERS AND INSULATORS - SUPER DE-LUXE CAB (05) - SUPERSTRUCTURE

1

3125372R1

COVER

TAIL LIGHT PROTECTION

2шт.

712684R1

SCREW,Sltd Pan Hd, M5 x 10

M5 X 12 CHEESE HD

4шт.

K651776

WASHER

3/16

4шт.

934871R1

NUT,M5, Cl 5

M5

4шт.

2

3125370R1

EXTENSION

FLAP, LH

1шт.

2

3125371R1

MUDFLAP

FLAP, RH

1шт.

3

712684R1

SCREW,Sltd Pan Hd, M5 x 10

M5 X 12 CHEESE HD

6шт.

K651776

WASHER

3/16

6шт.

934871R1

NUT,M5, Cl 5

M5

6шт.

4

3125520R1

SCREW

SELF TAP

4шт.

5

3125379R1

RIVET

TUBULAR

8шт.

3125380R1

COVER

TUBULAR RIVET

8шт.

6

3125377R1

PLATE

SPARE PART KICK LH

1шт.

6

3125378R1

PLATE

PLATE, KICK RH

1шт.

7

3125374R1

STRIP

PROTECTION LH

1шт.

7

3125375R1

STRIP

SPARE PART PROTECTION RH

1шт.

840-1520

SCREW,Phillips Drive, Pan HD, M5 x 20mm, Cl 4.8

Self Tap

4шт.

930244R1

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

M8 X 25 SET

4шт.

931618R1

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

Set

4шт.

3125369R1

WASHER

5/16

4шт.

AP00165310

WASHER

5/16

12шт.

829-1308

NUT,M8, Cl 10

8шт.

8

K965582

STRIP

EDGING

2шт.

9

3125364R1

GASKET

WING

2шт.

10

3125362R1

FENDER

OUTER LH

1шт.

10

3125363R1

FENDER

SPARE PART OUTER RH

1шт.

3125366R1

STOP

RUBBER

1шт.

3125367R1

SCREW

M8 X 15 SELF TAP

8шт.

3125368R1

SCREW

M8 X 25 SELF TAP

4шт.

3125369R1

WASHER

5/16

8шт.

11

3125383R1

INSULATOR

FOAM WING RH

1шт.

11

3125382R1

INSULATOR

FOAM WING LH

1шт.

12

3125384R1

INSULATOR

TRIANGULAR FOAM

1шт.
