Запчасти Case IH 485 (0J23-2) - SEAT AND SLIDES - GRAMMER (05) - SUPERSTRUCTURE

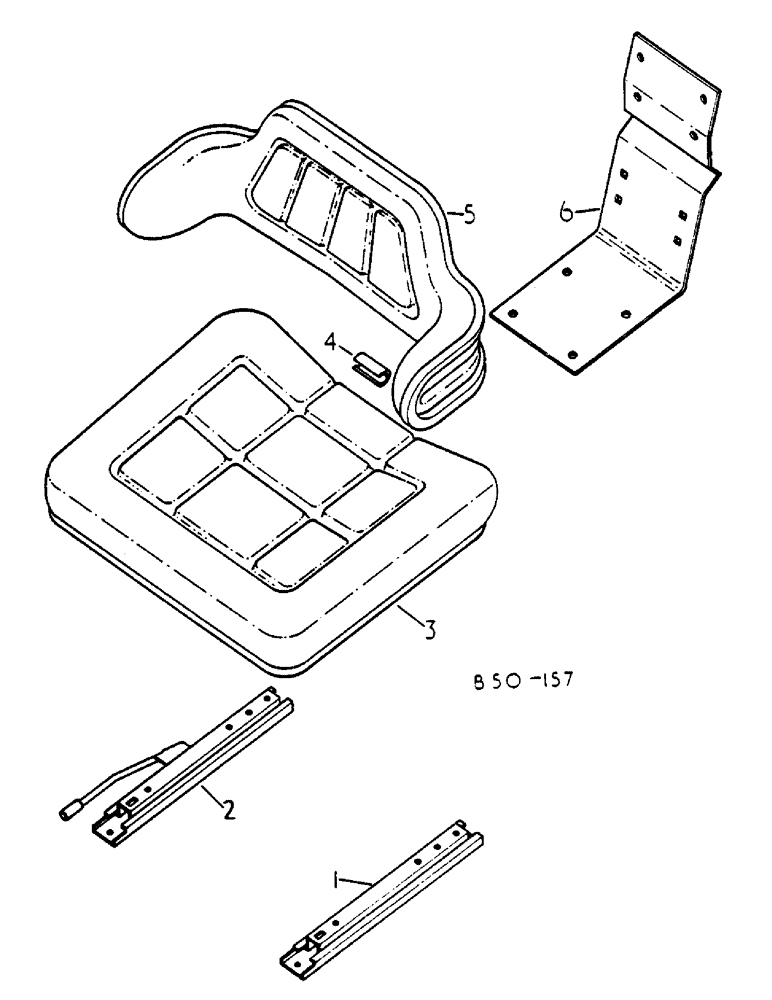

Схема запчастей Case IH 485 - (0J23-2) - SEAT AND SLIDES - GRAMMER (05) - SUPERSTRUCTURE
2
4
1
6
3
5

Артикул

Название

Примечание

Количество

3121421R92

SEAT

SUSPENSION - PVC

1шт.

3121421R92

SEAT

SUSPENSION - CLOTH - BRAMMER - ORDER 3121423R92 OR 3121424R92

1шт.

3121421R92

SEAT

SUSPENSION - PVC - BRAMMER REF 113182

1шт.

3121421R92

SEAT

SUSPENSION - CLOTH - BRAMMER REF 113183

1шт.

3123562R1

SPACER

SEAT

4шт.

71-524

SCREW,Slotted Fil Hd, 5/16"-18 x 1 1/2"

5/16-18 X 1-1/2

4шт.

892-11008

LOCK WASHER,8mm ID

(5/16")

4шт.

1

1-34-751-362

SLIDE GUIDE

1шт.

934895R1

SCREW,Slotted Cheese, M8 x 16mm, Cl 8.8

M8 X 15

2шт.

934899R1

LOCK WASHER,8.2mm ID x 14mm OD

Front

1шт.

934676R1

LOCK WASHER,M8

REAR - RAIL TO PLATE

1шт.

934894R1

SCREW,M8 x 20mm, Cl 8.8

M8 X 20

2шт.

934899R1

LOCK WASHER,8.2mm ID x 14mm OD

2шт.

934674R1

WASHER,M10.5 x 30 x 2.5

2шт.

705424R1

WASHER

SPARE PART RAIL TO SEAT

2шт.

2

3224897R1

RAIL

ADJUSTABLE W/HANDLE

1шт.

934895R1

SCREW,Slotted Cheese, M8 x 16mm, Cl 8.8

M8 X 15

2шт.

934675R1

WASHER,M8 x 16 x 1.6

FRONT, RAIL TO PLATE

1шт.

934894R1

SCREW,M8 x 20mm, Cl 8.8

2шт.

934899R1

LOCK WASHER,8.2mm ID x 14mm OD

2шт.

905424R1

WASHER,M10.5 x 25 x4

REAR

1шт.

934674R1

WASHER,M10.5 x 30 x 2.5

2шт.

3

3125773R1

CUSHION, SEAT

PVC

1шт.

3

3125774R1

CUSHION, SEAT

SPARE PART CLOTH - GRAMMER

1шт.

3

3125997R1

CUSHION, SEAT

PVC - FITTED TO SEAT CPTE 113182

1шт.

3

3125999R1

CUSHION, SEAT

CLOTH - FITTED TO SEAT CPTE 113183

1шт.

3129992R1

WASHER

4шт.

4

NOT APPLICABLE

1шт.

3125775R1

BACKREST

1шт.

3125776R1

BACKREST

GRAMMER

1шт.

5

3125996R1

BACKREST

CUSHION - PVC - FITTED TO SEAT CPTE 113182

1шт.

5

3125998R1

BACKREST

CUSHION - CLOTH - FITTED TO SEAT CPTE 113183

1шт.

3125777R1

FRAME

GRAMMER

1шт.

6

3125995R1

FRAME

SEAT - FITTED TO SEAT CPTE 113182 - FITTED TO SEAT CPTE 113183

1шт.

Выбрано товаров: 34
