Запчасти Case IH 485 (0J20-2) - ROOF - SEKURA (05) - SUPERSTRUCTURE

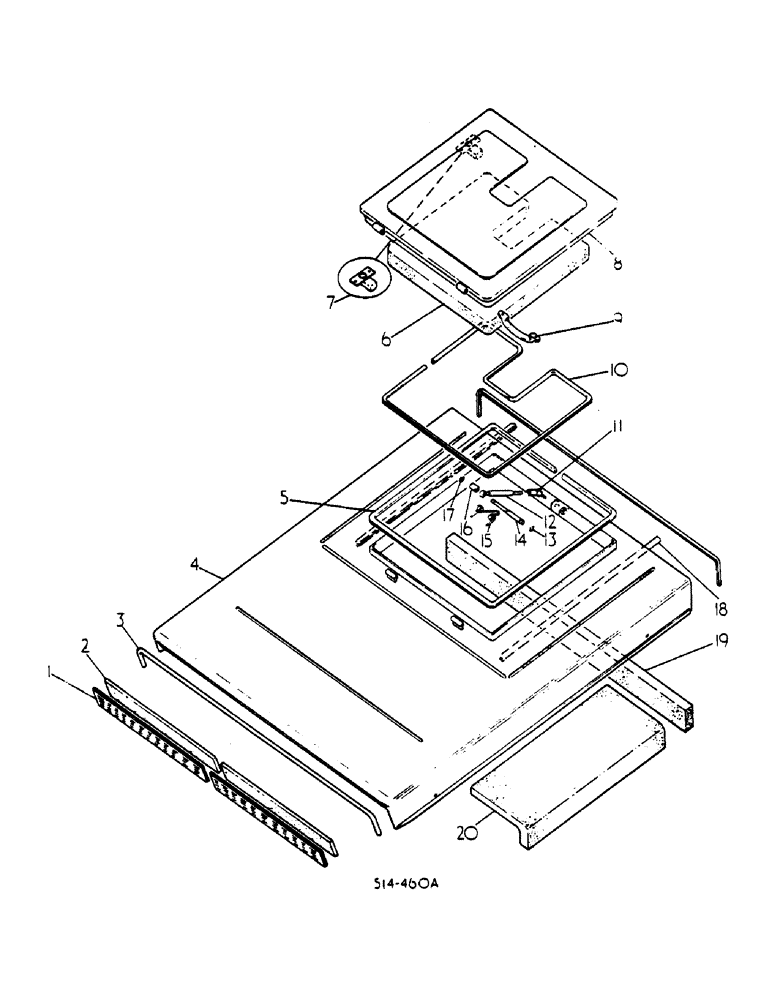

Схема запчастей Case IH 485 - (0J20-2) - ROOF - SEKURA (05) - SUPERSTRUCTURE
12
4
19
14
8
1
15
16
20
9
6
10
5
2
12
3
7
17
11
18

Артикул

Название

Примечание

Количество

3123084R92

PANEL ASSY.

ROOF OUTER - CONSISTS ITEMS 1-5 AND 18-20 INCLUSIVE

1шт.

1

3123830R1

GRILLE

AIR INTAKE

2шт.

2

3123829R1

CAB FILTER

AIR INTAKE

2шт.

3

K965583

SEALING STRIP

2шт.

4

NSS

NOT SOLD SEPARAT

PANEL, OUTER ROOF - NOT SERVICED SEPARATELY

1шт.

5

3123828R1

SEAL

HATCH

1шт.

6

3123833R1

INSULATOR

HATCH DOOR

1шт.

7

3123842R1

PAWL

ROOF HATCH LOCK, Serial Range: -5861

1шт.

7

3129042R1

PAWL

ROOF HITCH LOCK, Start Serial: 5862

1шт.

264-20316

SELF-TAP SCREW,Slotted Pan Hd, #6 x 1"

NO 6-32 X 1 PAN HD CR TAPPING

2шт.

8

3129043R91

DOOR

HATCH, Serial Range: -5861

1шт.

8

3129043R1

DOOR, CPTE HATCH - CONSISTS ITEMS 6, 8-17 INCL, Start Serial: 5862

1шт.

3123843R1

PIN

HINGE PIVOT

2шт.

3123844R1

RING

CLIP, RETAINING

4шт.

9

K965596

HANDLE

GRAB

1шт.

712684R1

SCREW,Sltd Pan Hd, M5 x 10

M5 X 12 CHEESE HD

2шт.

934871

NUT, M5

2шт.

934490

WASHER, M5 TOOTH LOCK

2шт.

10

K965583

SEALING STRIP

1шт.

11

K303757

BALL JOINT

GAS STRUT

1шт.

493-81002

LOCK WASHER,Ext-Int Tooth, 1/4"

1шт.

12

3123835R1

CYLINDER, GAS

STRUT

1шт.

13

K653509

RING, SNAP

RING SNAP CLIP, RETAINING

1шт.

14

3123837R1

PIN

GAS STRUT PIVOT

1шт.

95-11028

WASHER,1/4"

.625 X .281 X .061 PLAIN

1шт.

15

3123839R1

SPRING

1шт.

16

3123838R1

SPACER

GAS STRUT PIVOT PIN

1шт.

17

3123841R1

CLIP

RETAINING

1шт.

18

3123831R1

SEALING STRIP

SPARE PART HATCH

2шт.

19

3123827R2

INSULATOR

OUTER ROOF REPAIR

1шт.

20

3123826R1

INSULATOR

OUTER ROOF

2шт.

3123867R1

VISOR, SUN

(NOT ILLUSTRATED)

1шт.

3125489R1

SCREW

M5 X 25 FLAT HD CR (NOT ILLUSTRATED)

2шт.

Выбрано товаров: 33
