Запчасти Case IH 485 (0J15-2) - HEATER FEED AND RETURN PIPES, SEKURA ROOF HEATER (05) - SUPERSTRUCTURE

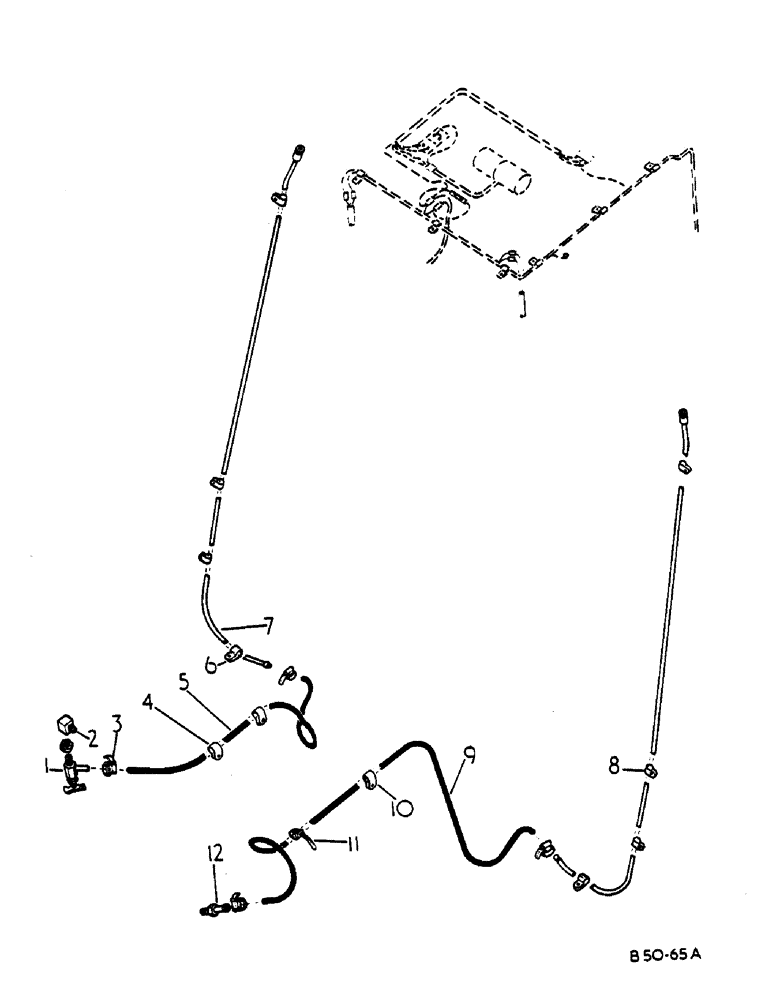

Схема запчастей Case IH 485 - (0J15-2) - HEATER FEED AND RETURN PIPES, SEKURA ROOF HEATER (05) - SUPERSTRUCTURE
12
3
4
7
8
6
11
5
9
1
10
2

Артикул

Название

Примечание

Количество

1

1262 840054

COCK

WATER SHUT OFF TAP

1шт.

2

3121599R1

ADAPTER

SPARE PART THERMOSTAT HSG TO WATER TAP

1шт.

3

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

4шт.

4

168396H1

CLAMP,13/16", 3/8" Bolt

2шт.

751492R1

WASHER

.333 X .625 X .072

2шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

5

3120957R1

HOSE

RUBBER W/SCREEN - WATER TAP TO PIPE

1шт.

6

3121728R1

CLAMP

4шт.

3121294R1

SCREW

NO. 10-24 X 1/2 PAN HD TAPITE

4шт.

7

3121596R1

TUBE

HEATER -SEKURA-

2шт.

8

3121728R1

CLAMP

4шт.

3121294R1

SCREW

NO. 10-24 X 1/2 PAN HD TAPITE

4шт.

9

3125131R1

HOSE,0.52", SAE 20R3

RUBBER W/SCREEN - PIPE TO WATER PUMP

1шт.

10

168396H1

CLAMP,13/16", 3/8" Bolt

1шт.

11

3120178R1

STRAP

LOCK

1шт.

12

3025188R1

ADAPTER

WATER PUMP

1шт.

Выбрано товаров: 16
