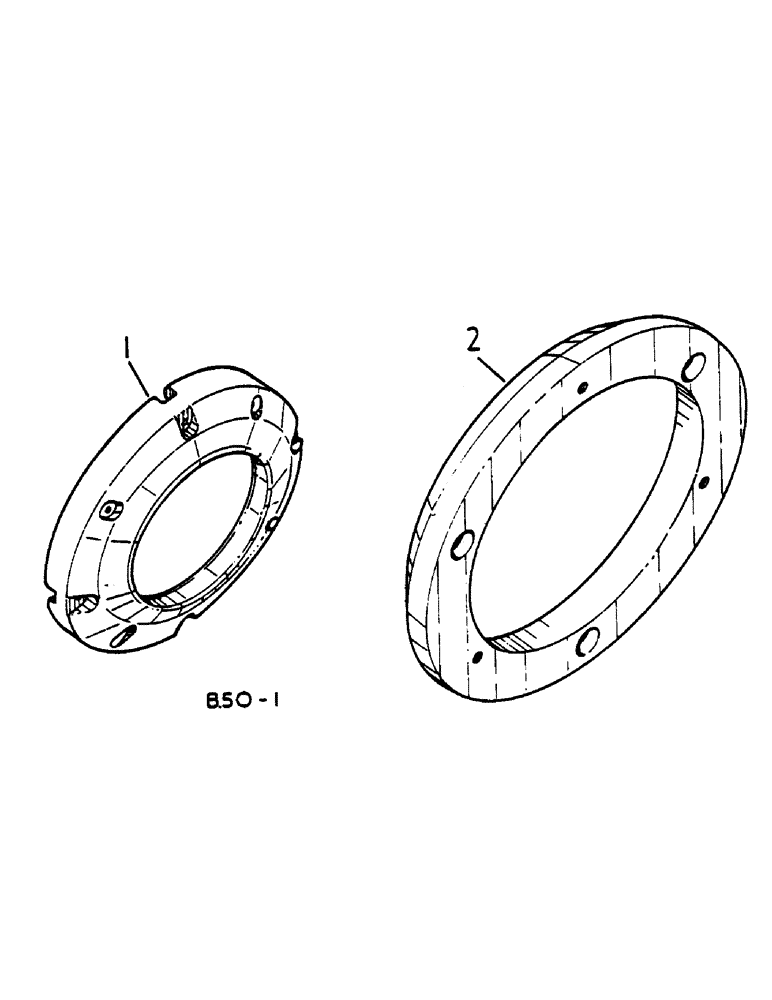

Запчасти Case IH 485 (00A05) - REAR WHEEL WEIGHT Accessories & Attachments / Miscellaneous

1

1332776C1

WEIGHT

REAR WHEEL, APPROX 120 LBS - USED W/WHEELS 28, 30 OR 32 IN - FOR FIRST SET

2шт.

70428R1

BOLT,Hex, 7/16" - 14 x 3 1/4", Gr 8

7/16-14 X 3-1/4 PHC HEX HD CAP

8шт.

495-81009

WASHER,.469" x 1" x .120"

15/32 X 1 X 11 GA C-Z

8шт.

492-11044

LOCK WASHER,7/16"

8шт.

425-107

NUT,7/16"-14, G5

8шт.

537133R1

SPACER

TAPER

8шт.

1

1332776C1

WEIGHT

REAR WHEEL - APPROX 120 LBS - USED W/WHEELS 28, 30 OR 32 IN - FOR SECOND SET

4шт.

189652

BOLT,Hex, 7/16" - 14 x 4 3/4", Gr 5

7/16-14 X 4-3/4 PHC HEX HD CAP

8шт.

495-81009

WASHER,.469" x 1" x .120"

15/32 X 1 X 11 GA C-Z

8шт.

492-11044

LOCK WASHER,7/16"

8шт.

425-107

NUT,7/16"-14, G5

TRACTOR W/ADDITIONAL WEIGHTS

8шт.

70428R1

BOLT,Hex, 7/16" - 14 x 3 1/4", Gr 8

7/16-14 X 3-1/4 PHC HEX HD CAP

8шт.

492-11044

LOCK WASHER,7/16"

8шт.

2

406858R1

WEIGHT

REAR WHEEL - APPROX 170 LBS - USED W/WHEELS 36 IN - FOR FIRST SET

2шт.

703819

BOLT,Hex, 5/8" - 11 x 3 1/4", Gr 5

5/8-11 X 1-1/4 ZND HEX HD CAP

6шт.

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

21/32 X 1-5/16 X .074 C-Z

12шт.

425-1010

NUT,5/8"-11, G5

6шт.

2

406858R1

WEIGHT

REAR WHEEL - APPROX 170 LBS

4шт.

88729

BOLT,Hex, 5/8" - 11 x 5", Gr 5

6шт.

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

21/32 X 1-5116 X .074 C-Z

6шт.

425-1010

NUT,5/8"-11, G5

Tractor w/additional weights

6шт.

703819

BOLT,Hex, 5/8" - 11 x 3 1/4", Gr 5

5/8-11 X 1-1/4 ZND HEX HD CAP

6шт.

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

21/32 X 1-5/16 X .074 C-Z

6шт.
