Запчасти Case IH 485 (0J13-2) - INSULATORS - SAFETY CAB (05) - SUPERSTRUCTURE

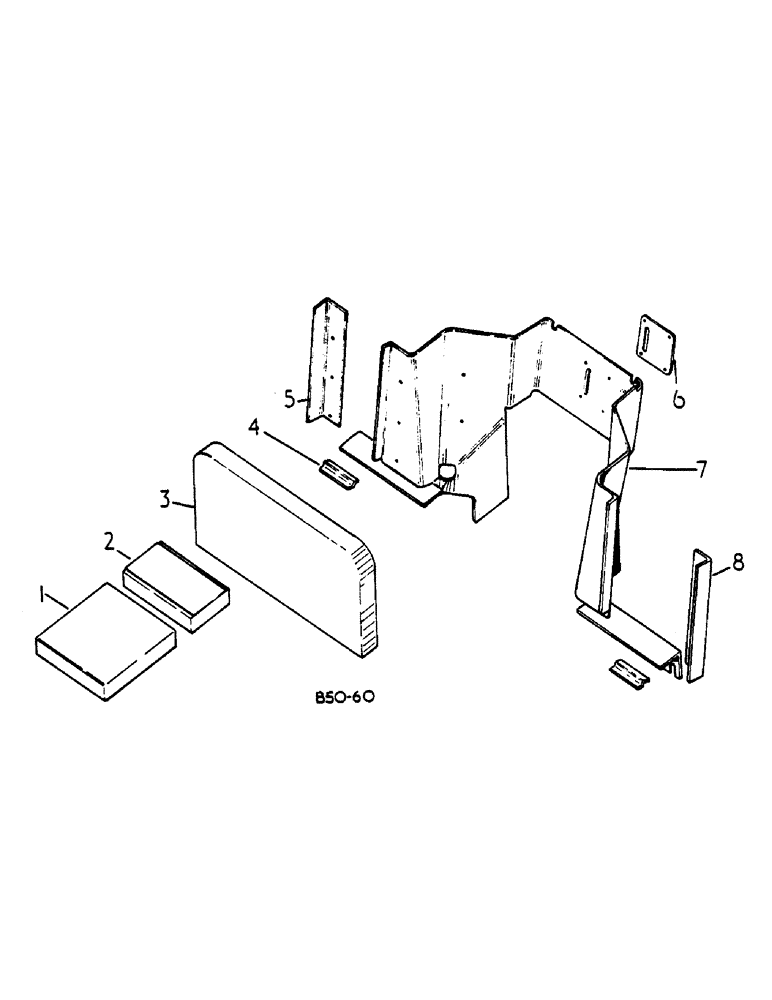

Схема запчастей Case IH 485 - (0J13-2) - INSULATORS - SAFETY CAB (05) - SUPERSTRUCTURE
5
6
2
1
4
7
8
3

Артикул

Название

Примечание

Количество

1

NOT APPLICABLE

1шт.

2

NOT APPLICABLE

1шт.

3

3118459R1

INSULATOR

BATTERY TRAY

1шт.

4

3118842R1

PLATE

SPARE PART RETAINING

2шт.

5

3123074R1

RETAINER

INSULATOR SIDE RH

1шт.

6

3116845R1

PLATE

SPARE PART ESCUTCHEON, 485, Serial Range: -7098

1шт.

401499R1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 1/2"

10-24 X 1/2 HEX HD TAP

4шт.

401499R1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 1/2"

10-24 X 1/2 HEX (RANDOM SLTD), 485, Serial Range: -7098

4шт.

7

3123072R6

FLOOR MAT

STEERING SUPPORT

1шт.

401499R1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 1/2"

NO 10-24 X 1/2 HEX HD CAP

2шт.

401499R1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 1/2"

10-24 X 1/2 HEX (RANDOM SLTD) - OPTIONAL

2шт.

7

3123088R4

INSULATOR

STEERING SUPPORT - SEKURA ROOF HEATER

1шт.

905988R1

SELF-TAP SCREW,Phillips Drive, Pan HD, M6.3 x 1.8 x 25mm

12-24 X 3/8 ZND TAP

4шт.

463-42510

SCREW,Hex, 1/4" - 20 x 5/8"

1/4-20 X 3/4 HEX HD TAP

4шт.

8

3123073R1

RETAINER

SPARE PART INSULATOR SIDE LH

1шт.

Выбрано товаров: 15
