Запчасти Case IH 485 (0J11-2) - CAB INSULATION (05) - SUPERSTRUCTURE

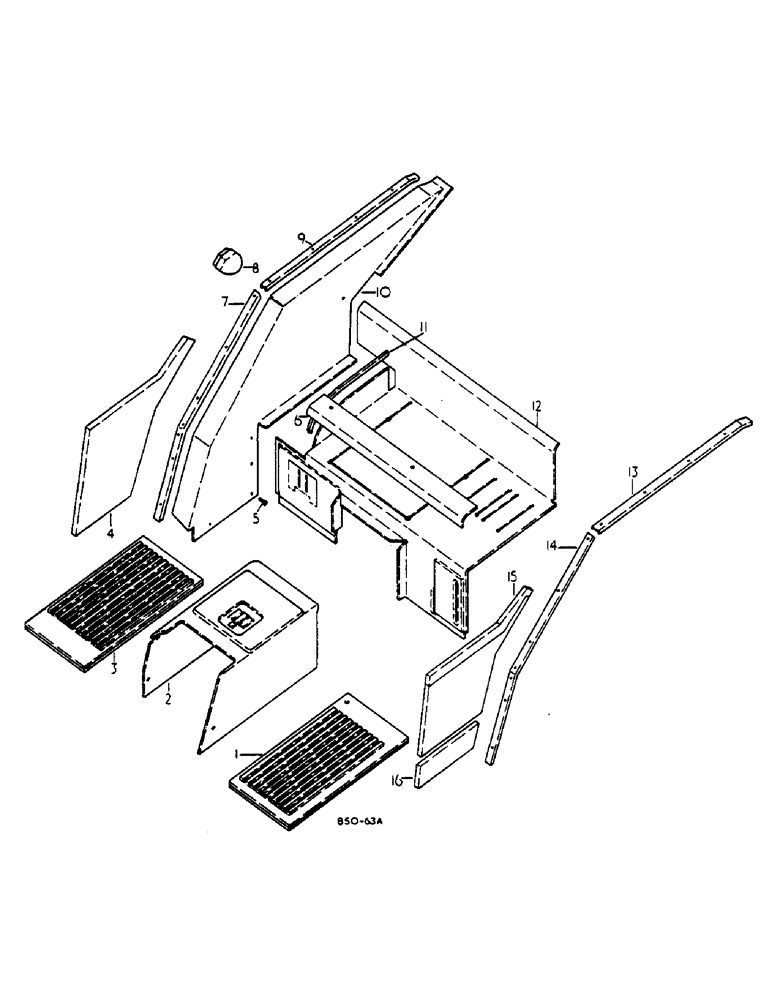

Схема запчастей Case IH 485 - (0J11-2) - CAB INSULATION (05) - SUPERSTRUCTURE
11
9
12
16
10
5
3
4
15
2
8
1
13
7
14

Артикул

Название

Примечание

Количество

1

3116832R3

INSULATOR

CPTE, FLOOR LH

1шт.

2

3116843R2

INSULATOR

CPTE, TUNNEL

1шт.

426-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

2шт.

495-11028

WASHER,1/4", SAE

(.281 x .625 x .051")

2шт.

3

3123069R3

INSULATOR

CPTE FLOOR - RH

1шт.

4

3123079R1

INSULATOR

DOOR - RH

1шт.

5

3118451R2

CLIP,ELECTRICAL

STUD, FENDER TRIM RETAINER

18шт.

6

3116885R1

RETAINER

SPARE PART SEAT DECK INSULATOR - FRONT - 484

1шт.

6

3129275R1

RETAINER

SEAT DECK INSULATOR - FRONT - 385 485

1шт.

7

3118454R2

RETAINER

FENDER FRONT INSULATOR

1шт.

27204R1

SELF-TAP SCREW

8-18 X 3/4 CR REC OVAL HD TAP

7шт.

8

3121165R1

PLUG

FENDER TRIM

2шт.

9

3118452R3

RETAINER

FENDER TOP INSULATOR

1шт.

27204R1

SELF-TAP SCREW

8-18 X 3/4 CR REC OVAL HD TAP

4шт.

10

3118450R1

INSULATOR

FENDER TRIM RH - ILLUSTRATED

1шт.

10

3118449R2

INSULATOR

FENDER TRIM LH - 484

1шт.

10

3129279R2

INSULATOR

FENDER TRIM LH 385 485

1шт.

11

MOULDING, INSULATOR - 448MM

1шт.

11

3118676R1

GASKET

INSULATOR - BULK LENGTH 150 FEET

2шт.

12

3116871R2

INSULATOR

CPTE SEAT PLATFORM - 484

1шт.

12

3129280R2

INSULATOR

CPTE SEAT PLATFORM - 385 485

1шт.

13

3118452R3

RETAINER

FENDER TOP INSULATOR

1шт.

27204R1

SELF-TAP SCREW

8-18 X 3/4 CR REC OVAL HD TAP

4шт.

14

3118454R2

RETAINER

FENDER FRONT INSULATOR

1шт.

27204R1

SELF-TAP SCREW

8-18 X 3/4 CR REC OVAL HD TAP

7шт.

15

3123078R1

INSULATOR

DOOR - LH

1шт.

16

3118457R1

INSULATOR

DOOR LOWER PANEL

1шт.

Выбрано товаров: 27
