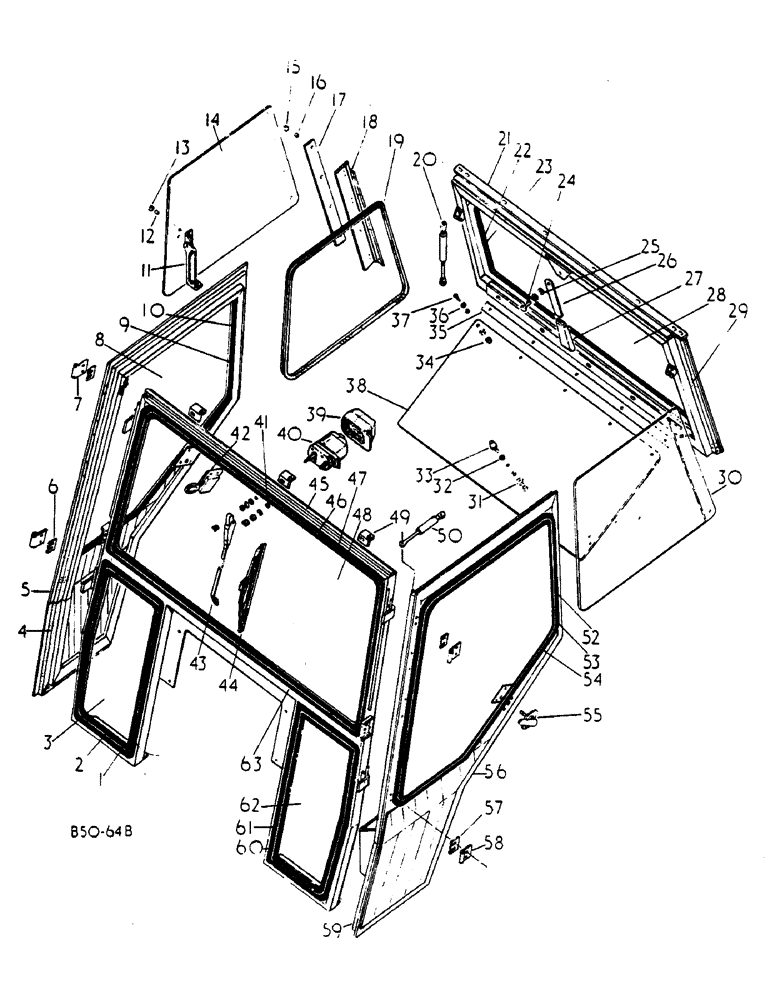

Запчасти Case IH 485 (0J03-2) - SAFETY CAB (05) - SUPERSTRUCTURE

1

3113560R3

SEAL

LOWER RH

1шт.

2

STRIP, FILLER -930MM - LOWER SCREEN OUTSIDE AND BOTTOM

1шт.

2

STRIP, FILLER -709MM - LOWER SCREEN INSIDE

1шт.

2

STRIP, FILLER -267MM - LOWER SCREEN TOP

1шт.

2

3123731R1

FILLING STRIP

SEAL - BULK LENGTH 30 METRES

1шт.

3

3113558R2

GLASS

LOWER - TINTED

1шт.

3

3113558R2

GLASS

LOWER - PLAIN

1шт.

4

3123747R1

DOOR SEAL

DOOR FLANGE UPPER - 25.4 INS

1шт.

4

3123746R1

DOOR SEAL

DOOR FLANGE REAR - 63.0 INS

1шт.

4

3123066R1

DOOR SEAL

DOOR FLANGE LOWER - 13.4 INS

1шт.

4

3123746R1

DOOR SEAL

DOOR FLANGE FRONT - 58.0 INS

1шт.

5

3123024R97

DOOR ASSY.

CPTE, RH

1шт.

3123026R3

DOOR

RH - ON ORDER FOR R92 OR R2 ORDER 3123024R93 OR 3123026R3 W/TWO PIVOT 3118418R1, RETAINER 3125246R1 AND CLIP 3053111R1

1шт.

6

3116641R1

BAR

DOOR HINGE - AS REQUIRED 2 MAX PER HINGE

1шт.

7

3116642R1

SUPPORT

HINGE

2шт.

495-11028

WASHER,1/4", SAE

(.281 x .625 x .051")

4шт.

3116643R1

LOCK NUT

1/4 PHILIDAS PLASTIC CAP

4шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

8

3123032R1

GLASS

DOOR RH - TINTED

1шт.

8

1500610C2

GLASS

DOOR RH - PLAIN

1шт.

9

3123033R1

SEAL

CAB WINDOW R H DOOR

1шт.

10

STRIP, FILLER -6375MM - DOOR VERTICAL

1шт.

10

STRIP, FILLER -4305MM - DOOR ANGLE

1шт.

10

STRIP, FILLER -3285MM - DOOR BOTTOM

1шт.

10

3123731R1

FILLING STRIP

SEAL - BULK LENGTH 30 METRES

1шт.

11

3123051R1

LEVER ASSY.

WINDOW LOCKING - RH - ILLUSTRATED

1шт.

11

3123050R1

LEVER ASSY.

WINDOW LOCKING LH

1шт.

23927R1

SCREW

1/4-20 X 3/4 PAN HD CR REC

4шт.

3116643R1

LOCK NUT

1/4 UNC W/PLASTIC CAP

4шт.

12

3123047R1

SPACER

4шт.

13

3118661R1

GROMMET

4шт.

14

3123655R1

GLASS

SIDE WINDOW - TINTED

1шт.

14

3123655R1

GLASS

SIDE WINDOW - PLAIN

1шт.

15

3118661R1

GROMMET

8шт.

16

3123047R1

SPACER

8шт.

17

3123048R1

RUBBER SEAL

RUBBER

2шт.

18

3123046R1

HINGE

SIDE WINDOW -RH - ILLUSTRATED

1шт.

18

3123045R1

HINGE

SIDE WINDOW -LH

1шт.

23927R1

SCREW

1/4-20 X 3/4 PAN HD CR REC

8шт.

495-11028

WASHER,1/4", SAE

(.281 x .625 x .051")

16шт.

3116643R1

LOCK NUT

1/4 UNC - W/PLASTIC CAP

8шт.

261-1458

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

10-24 X 1/2 PAN HD CR REC TAP

10шт.

19

SEAL, WINDOW - 2260MM

1шт.

19

3123044R1

SEAL, GLASS

WINDOW - LH AND RH WINDOW - BULK LENGTH 150 FEET

1шт.

20

3123040R1

GAS STRUT,283.5mm Extended, 191.3mm Compressed

484, Start Serial: 3706

2шт.

20

3123040R1

GAS STRUT,283.5mm Extended, 191.3mm Compressed

248, Start Serial: 580

2шт.

20

3118430R1

GAS STRUT

484, Serial Range: -3705

2шт.

20

3118430R1

GAS STRUT

248, Serial Range: -579

2шт.

3118431R1

CLEVIS PIN

CLEVIS

2шт.

3118432R1

WASHER

4шт.

P36304

SNAP RING

RETAINING

4шт.

21

3123721R93

GLASS

PANEL CPTE, REAR WINDOW

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

6шт.

28588R1

WASHER

.344 ID X .688 OD X .051 PLN

6шт.

492-11031

LOCK WASHER,5/16"

6шт.

22

3112496R1

SEAL

1шт.

23

STRIP, FILLER - 2192MM - REAR WINDOW TOP AND SIDES

1шт.

23

STRIP, FILLER - 1003MM - REAR WINDOW BOTTOM

1шт.

23

3123731R1

FILLING STRIP

SEAL - BULK LENGTH 30 METRES

1шт.

24

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Latch Plate

1шт.

3121174R1

CAP

COVER, BOLT REAR WINDOW

1шт.

329-146

JAM NUT,Jam, 3/8"-16, G5

1шт.

25

536847R1

BELLEVILLE WASHER

1шт.

26

3118655R1

HANDLE

PLATE, LATCH

1шт.

27

3118656R1

GRIP

LATCH

1шт.

28

98604C2

GLASS

TINTED

1шт.

28

98604C2

GLASS

PLAIN

1шт.

29

3112498R1

SEAL, GLASS

REAR WINDOW

2шт.

30

3123655R1

GLASS

SIDE WINDOW TINTED

1шт.

30

3123655R1

GLASS

SIDE WINDOW PLAIN

1шт.

31

832-10406

NUT,M6 x 1, Cl 8

Philidas w/plastic cap

1шт.

32

3118659R1

GROMMET

1шт.

33

E40611

STOP

RUBBER

1шт.

495-11028

WASHER,1/4", SAE

(.281 x .625 x .051")

1шт.

34

3119440R1

LOCK NUT

1/4 UNC PHILIDAS

5шт.

35

3118662R1

RUBBER SEAL

RUBBER

1шт.

36

3118661R1

GROMMET

1шт.

37

3118660R1

BOLT

SHOULDER

5шт.

495-11028

WASHER,1/4", SAE

(.281 x .625 x .051")

5шт.

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

.406 X .812 X .051 PLN

5шт.

38

3118657R1

GLASS

LOWER REAR WINDOW

1шт.

39

3113075R2

GUARD

HEAD RUBBER, Serial Range: -3969

1шт.

39

3113075R2

GUARD

HEAD RUBBER, 248, Serial Range: -599

1шт.

39

3124465R1

PROTECTOR

RUBBER HEAD, Start Serial: 3970

1шт.

39

3124465R1

PROTECTOR

RUBBER HEAD, 248, Start Serial: 600

1шт.

40

3113074R91

ELECTRIC MOTOR

WINDSCREEN WIPER - ORDER MOTOR 2125203R91, GUARD 3124465R1, ARM 3125204R91, BLADE 3125205R91, LEAD 3125206R1 AND 3125207R1, Serial Range: -3969

1шт.

40

3113074R91

ELECTRIC MOTOR

WINDSCREEN WIPER - 248 - ORDER MOTOR 2125203R91, GUARD 3124465R1, ARM 3125204R91, BLADE 3125205R91, LEAD 3125206R1 AND 3125207R1, Serial Range: -599

1шт.

40

3125203R1

MOTOR HOUSING

WINDSCREEN

1шт.

3125206R1

CABLE

FLYING LEAD

1шт.

3125207R1

CABLE

FLYING LEAD -EARTH, Start Serial: 3970

1шт.

3125207R1

CABLE

FLYING LEAD -EARTH, 248, Start Serial: 600

1шт.

41

3112426R1

GROMMET

WIPER ENTRY

1шт.

42

3112461R91

HANDLE

AND LATCH ASSY, INSIDE RH - ILLUSTRATED

1шт.

42

3112460R91

HANDLE

AND LATCH ASSY, INSIDE LH

1шт.

178716

SCREW,#10 - 32 x 3/8"

10-32 X 3/8 TAP

8шт.

9421089

WASHER

10-1/2 X .036 ZND

8шт.

43

3113076R91

ARM

WIPER, Serial Range: -3969

1шт.

43

3113076R91

ARM

WIPER, 248, Serial Range: -599

1шт.

43

3125204R91

ARM

WIPER, Start Serial: 3970

1шт.

43

3125204R91

ARM

WIPER, 248, Start Serial: 600

1шт.

44

3113077R1

BLADE

WIPER, Serial Range: -3969

1шт.

44

3113077R1

BLADE

WIPER, 248, Serial Range: -599

1шт.

44

1328077C1

WIPER BLADE

BLADE, WIPER WIPER, Start Serial: 3970

1шт.

44

1328077C1

WIPER BLADE

BLADE, WIPER WIPER, 248, Start Serial: 600

1шт.

45

3112425R1

SEAL

WINDSCREEN TOP

1шт.

46

3113555R1

SEAL

1шт.

47

STRIP, FILLER - 2372MM - WINDSCREEN TOP AND SIDES

1шт.

47

STRIP, FILLER - 1153MM - WINDSCREEN BOTTOM

1шт.

47

3123731R1

FILLING STRIP

SEAL - BULK LENGTH 30 METRES

1шт.

48

3118694R2

GLASS

UPPER - TINTED

1шт.

48

3113554R2

GLASS

UPPER - PLAIN

1шт.

49

3113566R1

ANGLE

WINDSCREEN MOUNTING

3шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

492-11031

LOCK WASHER,5/16"

3шт.

28588R1

WASHER

.344 ID X .688 OD X .051 PLN - ANGLE TO WINDSCREEN

3шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

492-11031

LOCK WASHER,5/16"

3шт.

28588R1

WASHER

.344 ID X .688 OD X .051 PLN - ANGLE TO TOP FRAME

3шт.

50

3123040R1

GAS STRUT,283.5mm Extended, 191.3mm Compressed

DOOR

2шт.

3123042R1

WAVE WASHER

11.5 X 15.0 WAVE

2шт.

3125246R1

RETAINER

2шт.

P36304

SNAP RING

RETAINING, 484, Start Serial: 13076

2шт.

P36304

SNAP RING

RETAINING, 248, Start Serial: 580

2шт.

50

3123040R1

GAS STRUT,283.5mm Extended, 191.3mm Compressed

DOOR

2шт.

1123041R1

SCREW

5/16-18 SHOULDER SET

4шт.

80681

LOCK WASHER,5/16"

4шт.

3123042R1

WAVE WASHER

11.5 X 15.0 WAVE

8шт.

425-145

JAM NUT,Jam, 5/16"-18, G5

5/16 HEX JAM

2шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

3123039R1

BRACKET

DOOR STRUT

2шт.

353669X1

SCREW

1/4-20 X 1 HEX HD

4шт.

80681

LOCK WASHER,5/16"

1/4 lock, 484, Serial Range: -13705

4шт.

80681

LOCK WASHER,5/16"

1/4 lock, 248, Serial Range: -1579

4шт.

51

NOT USED

1шт.

52

3123032R1

GLASS

DOOR LH - TINTED

1шт.

52

1500610C2

GLASS

DOOR LH - PLAIN

1шт.

53

3123033R1

SEAL

LH

1шт.

54

STRIP, FILLER -6375MM - DOOR VERTICAL

1шт.

54

STRIP, FILLER -4305MM - DOOR ANGLE

1шт.

54

STRIP, FILLER -3285MM - DOOR BOTTOM

1шт.

54

3123731R1

FILLING STRIP

SEAL - BULK LENGTH 30 METRES

1шт.

55

3113466R91

HANDLE

OUTSIDE

2шт.

3112458R1

SCREW

2BA X 5/8 CSK HD

4шт.

492-11010

LOCK WASHER,#10

4шт.

3112459R1

NUT

2BA

4шт.

56

3123023R94

DOOR

CPTE, LH

1шт.

3123025R3

DOOR

LH - ON ORDER FOR R92 OR R2 ORDER 3123023R93 OR 312025R3 W/TWO PIVOT, 3118418R1, RETAINER 3125246R1 AND CLIP 3053111R1

1шт.

57

3116641R1

BAR

AS REQUIRED 2 MAXIMUM PER HINGE

1шт.

58

3116642R1

SUPPORT

HINGE

2шт.

495-11028

WASHER,1/4", SAE

(.281 x .625 x .051") - As Required

1шт.

3116643R1

LOCK NUT

1/4 UNC W/PLASTIC CAP

4шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

59

3123747R1

DOOR SEAL

DOOR FLANGE - UPPER - 25.4 INS

1шт.

59

3123746R1

DOOR SEAL

DOOR FLANGE - REAR - 63,0 INS

1шт.

59

3123746R1

DOOR SEAL

DOOR FLANGE - FRONT - 58,0 INS

1шт.

59

3123066R1

DOOR SEAL

DOOR FLANGE - LOWER - 13,4 INS

1шт.

60

3113559R1

SEAL

LOWER -L H -

1шт.

61

STRIP, FILLER - 930MM - LOWER SCREEN OUTSIDE BOTTOM

1шт.

61

STRIP, FILLER - 1153MM - WINDSCREEN BOTTOM

1шт.

61

STRIP, FILLER - 267MM - LOWER SCREEN TOP

1шт.

61

3123731R1

FILLING STRIP

SEAL - BULK LENGTH 30 METRES

1шт.

62

3113558R2

GLASS

LOWER

1шт.

63

3123013R92

WINDSHIELD

1шт.

3123014R1

FRAME

WINDSCREEN ASSY

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

425-106

NUT,3/8"-16, Cl 5

4шт.

492-11038

LOCK WASHER,3/8"

4шт.

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

.406 ID X .812 OD X .051 PLN - WINDSCREEN TO LOWER FRAME

4шт.

1092996R1

PRODUCT GRAPHIC

CAB WARNING

1шт.

1093182R1

CAUTION DECAL

CAUTION

1шт.

1093189R1

PRODUCT GRAPHIC

DOOR LH

1шт.

1093190R1

PRODUCT GRAPHIC

DOOR RH

1шт.

1093191R1

DECAL

SPARE PART A-PILLAR LH

1шт.

1093197R1

PRODUCT GRAPHIC

A-PILLAR RH

1шт.

3131322R1

PRODUCT GRAPHIC

C-PILLAR LH

1шт.

3131322R1

PRODUCT GRAPHIC

C-PILLAR RH

2шт.

2752300R1

PRODUCT GRAPHIC

INTERNATIONAL

1шт.
