Запчасти Case IH 485 (0J01-2) - CAB MOUNTINGS, MACHINE FITTED W/CAB (05) - SUPERSTRUCTURE

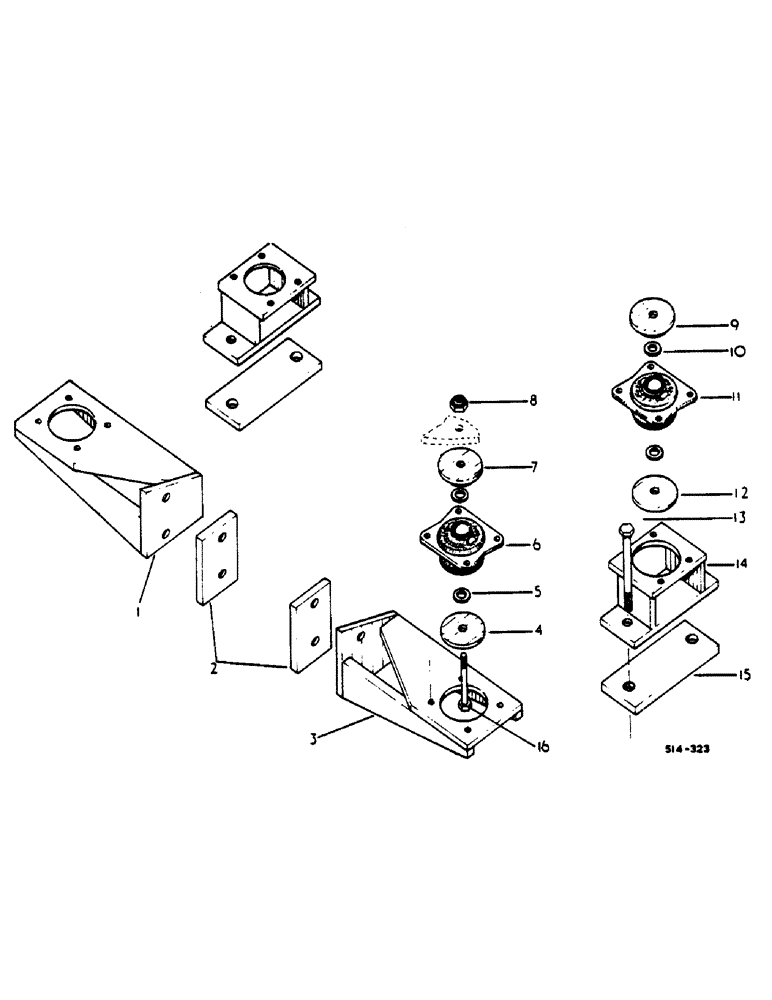

Схема запчастей Case IH 485 - (0J01-2) - CAB MOUNTINGS, MACHINE FITTED W/CAB (05) - SUPERSTRUCTURE
10
9
3
11
7
6
4
8
15
13
5
12
2
16
1
14

Артикул

Название

Примечание

Количество

1

3116138R2

SUPPORT ASSY.

FRONT MOUNTING RH

1шт.

2

3116145R1

PLATE

FRONT SPACER

2шт.

3

3116137R2

SUPPORT ASSY.

FRONT MOUNTING LH

1шт.

7701329

SPECIAL BOLT,Hex 3/4" - 10 x 2 1/4", Gr 5

3/4-10 X 2-1/4 HEX HD CAP

2шт.

4

3116148R1

WASHER

REBOUND

2шт.

5

3048473R2

WASHER

CENTRALISING

4шт.

6

3116146R91

RUBBER MOUNTING

BUSHING, FRONT YELLOW

2шт.

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

8шт.

3063560R1

LOCK NUT

3/8-16 LOCK

8шт.

7

3116801R1

CUP WASHER

2шт.

8

3100765R2

LOCK NUT

5/8-11 LOCK

4шт.

9

3116801R1

CUP WASHER

2шт.

10

3048473R2

WASHER

CENTRALISING

4шт.

11

1533773C1

DAMPER

BUSHING, REAR - RED

2шт.

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

8шт.

3063560R1

LOCK NUT

3/8-16 LOCK

8шт.

12

3116148R1

WASHER

REBOUND

2шт.

13

326-10120

BOLT,Hex, 5/8" - 11 x 7-1/2", Gr 8

4шт.

425-1010

NUT,5/8"-11, G5

4шт.

92-11062

LOCK WASHER,5/8"

4шт.

14

3116142R2

SUPPORT ASSY.

REAR MOUNTING

2шт.

15

3116143R2

PLATE

AXLE MOUNTING

1шт.

16

426-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 8

4шт.

Выбрано товаров: 23
