Запчасти Case IH 485 (0I18-2) - SUSPENSION SEAT DE-LUXE (05) - SUPERSTRUCTURE

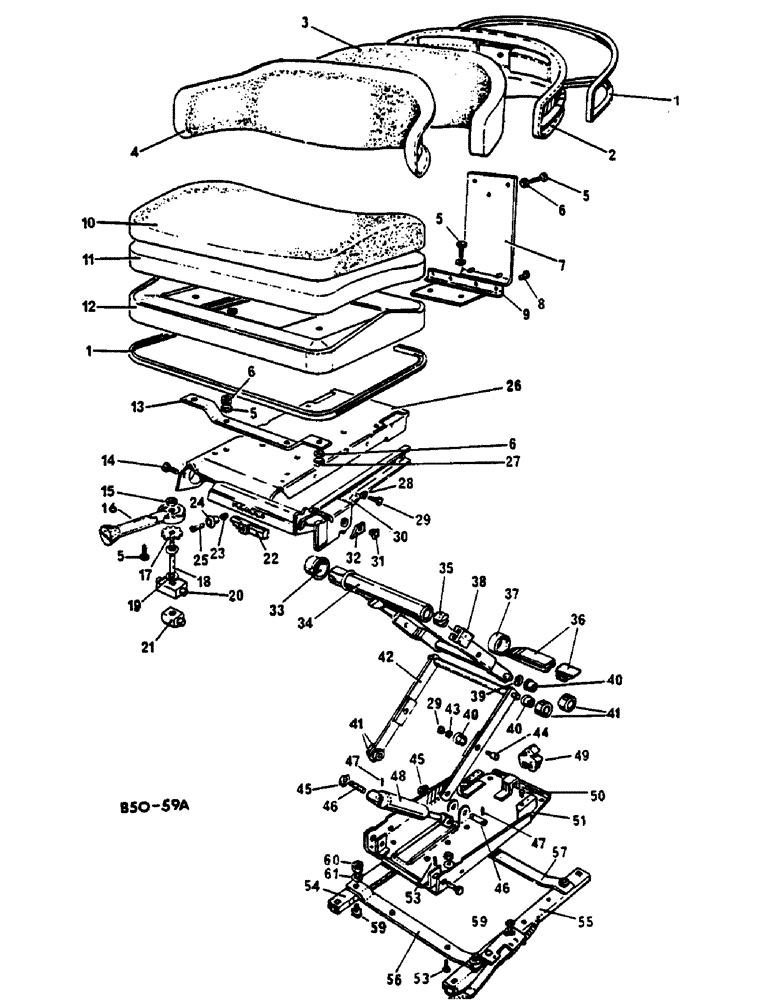

Схема запчастей Case IH 485 - (0I18-2) - SUSPENSION SEAT DE-LUXE (05) - SUPERSTRUCTURE
27
22
23
5
15
1
6
59
13
19
35
2
6
40
40
20
56
28
21
1
39
46
50
11
42
41
31
57
37
18
44
48
41
34
5
9
49
32
40
3
53
61
60
26
7
14
47
5
24
10
8
6
53
55
5
43
30
59
17
29
36
51
12
33
45
4
38
29
54
25
45
47
46
16

Артикул

Название

Примечание

Количество

3121421R92

SEAT

SUSPENSION - P V C - BOSTROM

1шт.

3121422R91

DRIVER SEAT

SUSPENSION - FABRIC - BOSTROM

1шт.

3123336R2

BACKREST

CUSHION ASSY - P V C

1шт.

3123337R1

BACKREST

CUSHION ASSY - FABRIC - EACH CONSISTS ITEMS 1-4 INCL

1шт.

1

NSS

NOT SOLD SEPARAT

STRIP, EDGING

1шт.

2

NSS

NOT SOLD SEPARAT

PAN, SEAT BACK

1шт.

3

NSS

NOT SOLD SEPARAT

CUSHION, FOAM SEAT BACK

1шт.

4

NSS

NOT SOLD SEPARAT

COVER, SEAT BACK CUSHION - PVC/FABRIC

1шт.

5

628-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

9шт.

6

492-11031

LOCK WASHER,5/16"

11шт.

7

3123331R2

SUPPORT

SEAT BACK

1шт.

8

3125163R1

RIVET

POP

4шт.

9

3125164R1

BRACKET

1шт.

3123332R2

CUSHION, SEAT

PVC

1шт.

3123333R1

CUSHION, SEAT

FABRIC - EACH CONSISTS ITEMS 1, 10-12 INCL

1шт.

10

NSS

NOT SOLD SEPARAT

COVER, SEAT - PVC OR FABRIC

1шт.

11

NSS

NOT SOLD SEPARAT

CUSHION, FOAM SEAT

1шт.

12

NSS

NOT SOLD SEPARAT

PAN, SEAT

1шт.

13

3123334R1

SUPPORT

SEAT TILT

1шт.

14

931171R1

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

M8 X 1.25 X 16 TAPTITE

1шт.

15

3123326R1

NUT

CLAMP

1шт.

16

3123327R1

HANDLE

1шт.

17

538570R1

GEAR

1шт.

18

3123325R1

BOLT

ADJUSTER

1шт.

19

3123322R1

THRUST WASHER

1шт.

20

3123323R1

TRUNNION

ADJUSTER - LARGE

1шт.

21

3123324R1

TRUNNION

ADJUSTER - SMALL

1шт.

22

3123307R1

SLIDE

SEAT ADJUSTING

1шт.

23

3220537R1

SPRING

SLIDER

1шт.

24

3123309R1

BUTTON

KNOB, SLIDER

1шт.

25

3008342X1

SCREW

M6 X 25

1шт.

26

3123313R1

SEAT PLATE

TOP

1шт.

27

934301R1

WASHER,M6.6

NUT, M8

2шт.

28

933965R1

LOCK WASHER,M10

2шт.

29

931171R1

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

30

3123314R1

SHROUD ASSY.

RH

1шт.

31

538695R1

PLUG

END

1шт.

32

3220525R1

INDICATOR

1шт.

33

3123316R1

BUSHING

BEARING, 4MM

1шт.

34

3123315R1

LEVER

CENTRE

1шт.

35

3220529R1

RETAINER

1шт.

36

3129922R1

BAR

TORSION - SET OF 5

1шт.

37

3109331R1

FLANGED BEARING

1шт.

38

3220519R1

STOP

LIMIT

2шт.

39

495-21050

WASHER,7/16"

4шт.

40

3123319R1

BUSHING

BEARING

8шт.

41

3123320R1

ROLLER BEARING

4шт.

42

3220517

LEVER, OUTER

1шт.

43

934309R1

LOCK WASHER,M8

2шт.

44

3123321R1

PIVOT PIN

2шт.

45

934309R1

LOCK WASHER,M8

2шт.

46

538578R1

PIN

DAMPER

2шт.

47

538579R1

PIN, ROLL

2шт.

48

3123329R1

SHOCK ABSORBER

DAMPER

1шт.

49

3220516R1

STOP

BUMPER

1шт.

50

3123308R1

BUMPER

BUTTON

2шт.

51

3220524R1

PLATE

BASE

1шт.

52

3123318R1

PIVOT PIN

2шт.

53

932662R1

LOCK PIN,3mm OD x 32mm L, Slotted

3MM

2шт.

54

3123303R1

RAIL

SLIDE, ADJ

1шт.

55

3123304R1

RAIL

SLIDE-FREE

1шт.

56

3123305R1

BRACKET

STRAP, MOUNTING - FRONT

1шт.

57

3123306R1

BRACKET

STRAP, MOUNTING - REAR

1шт.

58

931860R1

HEX SOC SCREW,Flat Hd, CSK, M8 x 20mm, Cl 8.8

M8 X 20 CSK

4шт.

59

628-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

3шт.

60

825-1408

NUT,M8, Cl 8

4шт.

61

492-11031

LOCK WASHER,5/16"

3шт.

Выбрано товаров: 67
