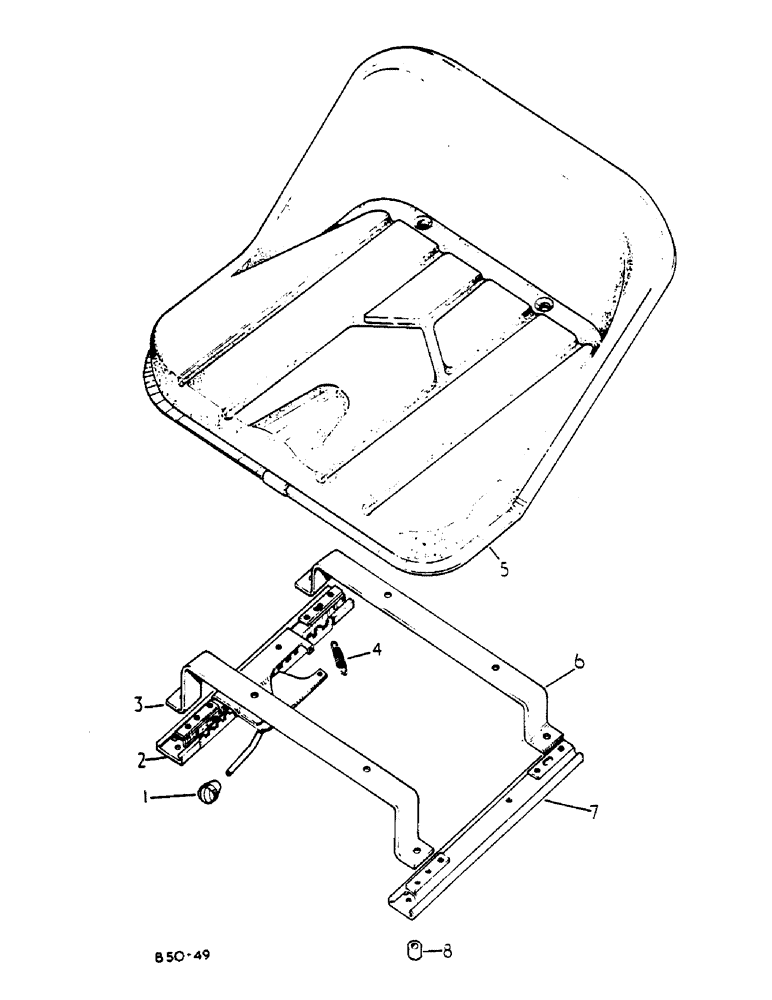

Запчасти Case IH 485 (0I16-2) - SEAT (05) - SUPERSTRUCTURE

3121641R91

SEAT ASSY.

1шт.

440-13120

SCREW,Cross Pan Hd, 5/16"-18 x 1 1/4"

5/16-18 X 1-1/4 CR PAN HD MACH

4шт.

493-81008

LOCK WASHER,Int Tooth, 5/16"

4шт.

1

538693R1

BUTTON

KNOB

1шт.

2

825199C91

SLIDE

RAIL, RH W/ADJUSTER

1шт.

3

3121642R1

SUPPORT

BRACKET, FRONT MOUNTING

1шт.

4

538694R1

SPRING

1шт.

5

538026R2

SEAT ASSY.

PAN

1шт.

6

3121643R1

SUPPORT

BRACKET, REAR MOUNTING

1шт.

7

825198C1

RAIL

SLIDE LH

1шт.

8

3064188R1

SPACER

SEAT

4шт.

700701069

SCREW,Cross Pan Hd, 5/16"-18 x 3/4"

5/16-18 X 3/4 CZ CR PAN HD

12шт.

9635082

NUT,5/16" - 18, Gr 5

4шт.

80681

LOCK WASHER,5/16"

Used for mounting brackets and slides

8шт.
