Запчасти Case IH 485 (0I05-2) - PLATFORM MOUNTING STEP AND TOOLBOX, MACHINE NOT FITTED W/CAB (05) - SUPERSTRUCTURE

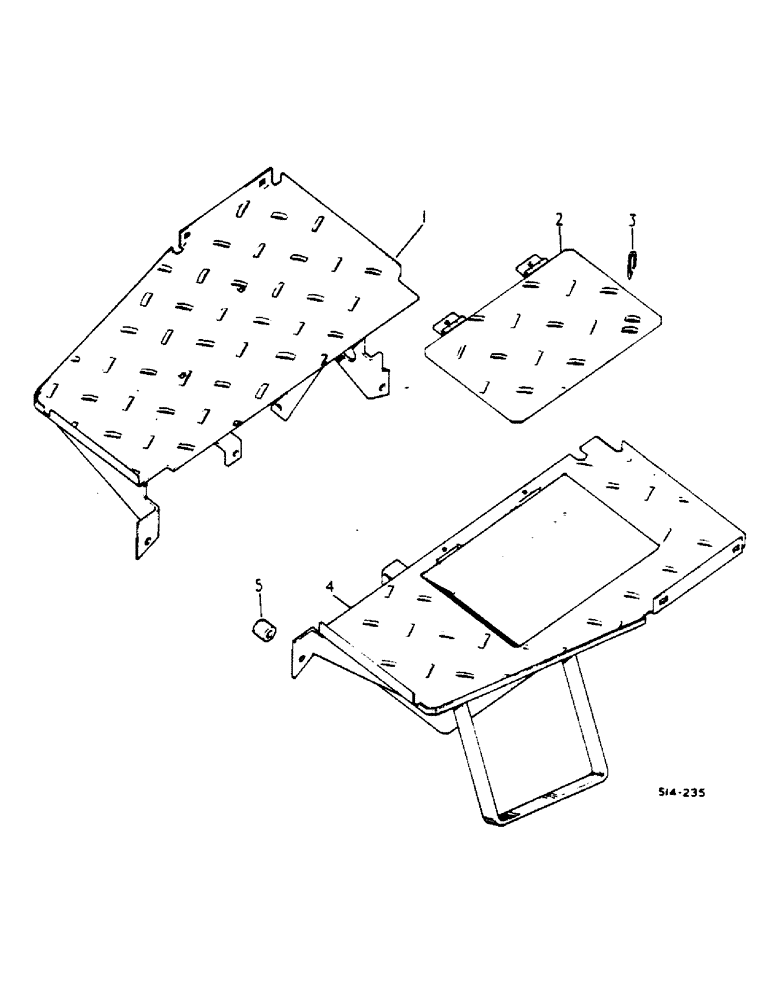

Схема запчастей Case IH 485 - (0I05-2) - PLATFORM MOUNTING STEP AND TOOLBOX, MACHINE NOT FITTED W/CAB (05) - SUPERSTRUCTURE
1
4
5
2
3

Артикул

Название

Примечание

Количество

1

528523R3

PLATFORM

RH

1шт.

412-612

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 3/4", Gr 2

3/8-16 X 3/4 SHORT SQ-NK CRG

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

492-11038

LOCK WASHER,3/8"

3шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .051)

2шт.

2

538421R1

COVER ASSY

TOOLBOX

1шт.

3

528917R1

RING

FINGER PULL

1шт.

4

176116A1

STEP

LH

1шт.

412-612

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 3/4", Gr 2

3/8-16 X 3/4 SHORT SQ-NK CRG

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

492-11038

LOCK WASHER,3/8"

3шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .051)

2шт.

470-12510

SCREW,Slotted Pan Hd, 1/4"-20 x 5/8"

1/4-20 X 5/8 C-Z SLT-PAN-HD MACH

2шт.

492-11025

LOCK WASHER,1/4"

3шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

3шт.

5

528909R1

SPACER

LH PLATFORM

1шт.

Выбрано товаров: 23
