Запчасти Case IH 485 (0I03-2) - REAR FENDERS - FLAT TOP (05) - SUPERSTRUCTURE

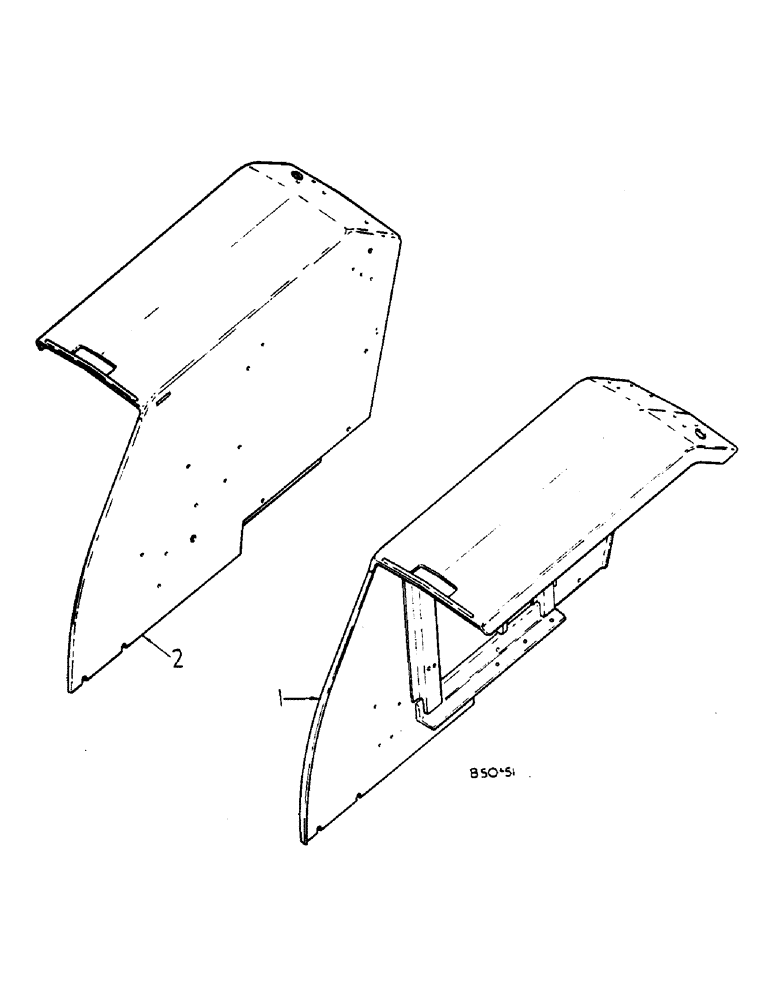

Схема запчастей Case IH 485 - (0I03-2) - REAR FENDERS - FLAT TOP (05) - SUPERSTRUCTURE
2
1

Артикул

Название

Примечание

Количество

1

3123090R9

MUD DEFLECTOR

LH

1шт.

2

3123091R8

MUD DEFLECTOR

RH

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

4шт.

80681

LOCK WASHER,5/16"

6шт.

9707515

BOLT,Hex, 5/16 - 18" x 1 3/4", Gr 5

5/16-18 X 1-3/4 - TO REAR TOP COVER

2шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

2шт.

80681

LOCK WASHER,5/16"

To transmission shift control housing or draft control housing

2шт.

326-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

To axle carrier

4шт.

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

2шт.

492-11038

LOCK WASHER,3/8"

To parking brake bracket

3шт.

3112888R1

PLUG

PLOUGH LIGHT BLANKING (NOT ILLUSTRATED)

1шт.

3125820R1

SLEEVE

PVC - FOR USE W/FENDER ASSY'S (NOT ILLUSTRATED)

8шт.

Выбрано товаров: 14
