Запчасти Case IH 485 (0I01-2) - REAR FENDERS - CROWN TYPE (05) - SUPERSTRUCTURE

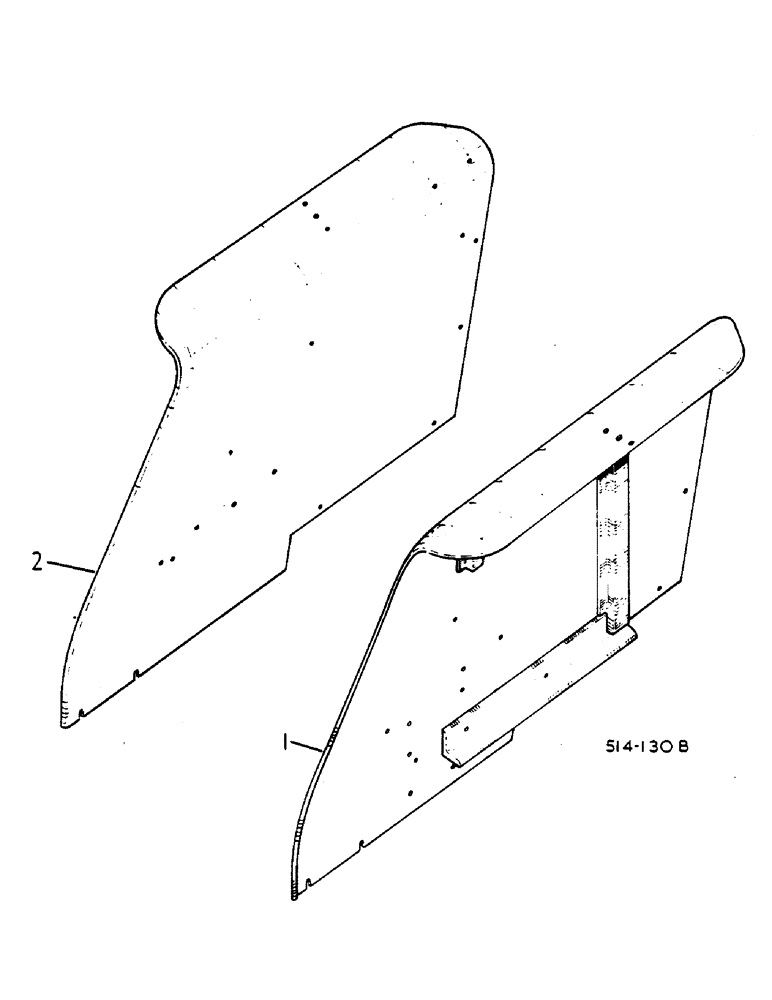

Схема запчастей Case IH 485 - (0I01-2) - REAR FENDERS - CROWN TYPE (05) - SUPERSTRUCTURE
2
1

Артикул

Название

Примечание

Количество

1

538639R6

FENDER ASSY.

LH W/PRODUCT-GRAPHIC

1шт.

2

530002R7

FENDER ASSY.

RH

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

6шт.

80681

LOCK WASHER,5/16"

To rear top cover

6шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

2шт.

80681

LOCK WASHER,5/16"

2шт.

9635082

NUT,5/16" - 18, Gr 5

To transmission shift control housing or draft control housing

2шт.

326-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

To axle carrier

4шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

2шт.

492-11038

LOCK WASHER,3/8"

To parking brake bracket

3шт.

3113657R1

PLUG

SIDE AND TAIL LIGHT BLANKING (NOT ILLUSTRATED)

4шт.

3113430R1

PLUG

SIDE AND TAIL BLANKING (NOT ILLUSTRATED)

2шт.

531625R1

GROMMET

(NOT ILLUSTRATED)

2шт.

3113430R1

PLUG

BLANKING FENDER LH (NOT ILLUSTRATED)

3шт.

3112888R1

PLUG

BLANKING FENDER RH (NOT ILLUSTRATED)

1шт.

3125820R1

SLEEVE

PVC - FOR USE W/FENDER ASSY'S (NOT ILLUSTRATED)

2шт.

Выбрано товаров: 18
