Запчасти Case IH 485 (0H21-2) - REAR PANELS, 385 485, MACHINES FITTED W/CAB (05) - SUPERSTRUCTURE

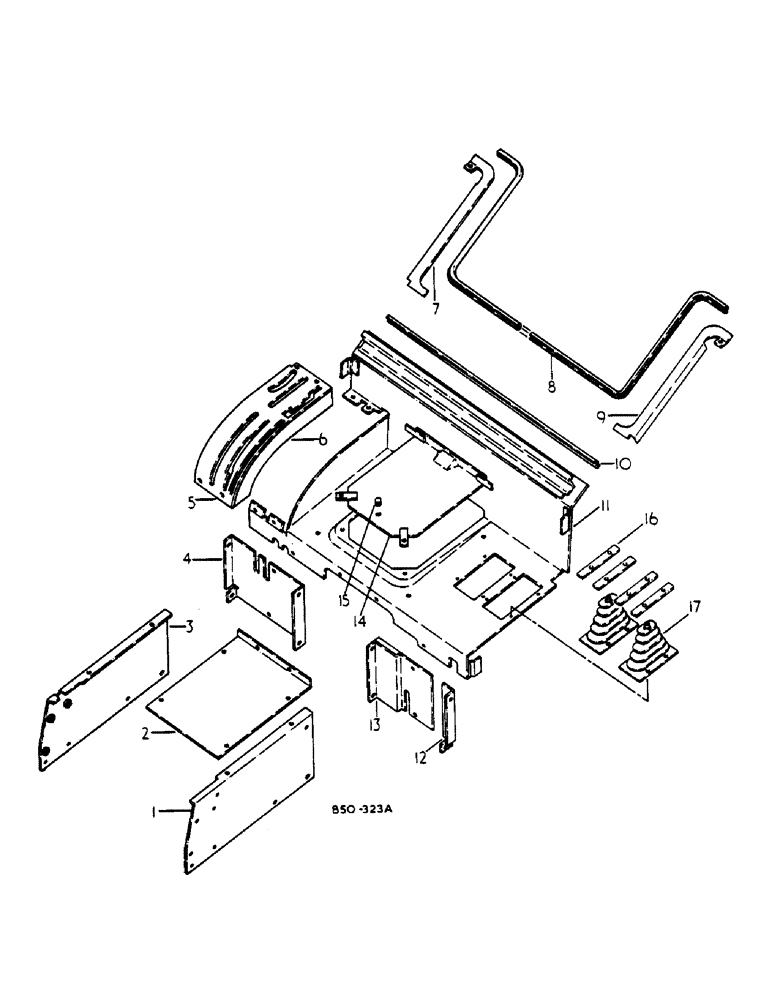

Схема запчастей Case IH 485 - (0H21-2) - REAR PANELS, 385 485, MACHINES FITTED W/CAB (05) - SUPERSTRUCTURE
15
4
16
14
8
12
10
11
2
3
7
9
1
17
6
5
13

Артикул

Название

Примечание

Количество

1

3116174R3

PLATE ASSY.

TRANS SIDE LH

1шт.

3112992R1

NUT

INSERT 1/4-20

4шт.

179801

BOLT,Hex, 1/4" - 20 x 1 1/2", Gr 5

3шт.

27616R1

WASHER,.281" x 5/8" x .075", HDN

.281 ID X .625 OD .051 PLN

3шт.

92-4

LOCK WASHER,1/4"

Plate to Steering Support

3шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

27616R1

WASHER,.281" x 5/8" x .075", HDN

.281 ID X .625 OD X .051 PLN

4шт.

92-4

LOCK WASHER,1/4"

Plate to Platforms

4шт.

2

3116183R2

PLATE

TRANS COVER

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

6шт.

27616R1

WASHER,.281" x 5/8" x .075", HDN

.281 ID X .625 OD X .051 PLN

6шт.

92-4

LOCK WASHER,1/4"

Plate to Side Plates - Plate to Seat Platform

6шт.

3

3116176R1

PLATE ASSY.

SPARE PART TRANS SIDE RH

1шт.

3112992R1

NUT

INSERT 1/4-20

4шт.

179801

BOLT,Hex, 1/4" - 20 x 1 1/2", Gr 5

3шт.

27616R1

WASHER,.281" x 5/8" x .075", HDN

.281 ID X .625 OD X .051 PLN

3шт.

92-4

LOCK WASHER,1/4"

Plate to Steering Support

3шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

27616R1

WASHER,.281" x 5/8" x .075", HDN

.281 ID X .625 OD X .051 PLN

4шт.

92-4

LOCK WASHER,1/4"

Plate to Platforms

4шт.

4

3116171R1

CHANNEL

REAR RH

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

92-4

LOCK WASHER,1/4"

4шт.

27616R1

WASHER,.281" x 5/8" x .075", HDN

.281 ID C .625 OD X .051 PLN - CHANNEL TO SEAT PLATFORM - CHANNEL TO SIDE PLATE - CHANNEL TO PLATFORMS

4шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

27616R1

WASHER,.281" x 5/8" x .075", HDN

.281 ID X .625 OD X .051 PLN

1шт.

92-4

LOCK WASHER,1/4"

1шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

Channel to Fender

1шт.

5

3121582R2

HOUSING

HITCH CONTROL

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

27616R1

WASHER,.281" x 5/8" x .075", HDN

.281 ID X .625 OD X .051 PLN

4шт.

92-4

LOCK WASHER,1/4"

4шт.

6

3121583R2

INSULATOR

HITCH CONTROL HOUSING

1шт.

7

3118650R2

SUPPORT

SEAL RH

1шт.

353665X1

SCREW

1/4-20 X 1/2 HEX HD

2шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

2шт.

92-4

LOCK WASHER,1/4"

2шт.

495-11028

WASHER,1/4", SAE

(.281 x .625 x .051")

2шт.

280-1458

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

10-16 X 1/2 HEX HD TAP

1шт.

8

SEAL, LOWER - 865 MM

1шт.

8

3118678R1

SEAL

LOWER - BULK LENGTH 150 FT

1шт.

9

3118649R2

SUPPORT

SEAL LH

1шт.

353665X1

SCREW

1/4-20 X 1/2 HEX HD

2шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

2шт.

92-4

LOCK WASHER,1/4"

2шт.

495-11028

WASHER,1/4", SAE

(.281 x .625 x .051")

2шт.

280-1458

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

10-16 X 1/2 HEX HD TAP

1шт.

10

SEAL, UPPER - 1872 MM -

1шт.

10

3118678R1

SEAL

UPPER - BULK LENGTH 150 FT

1шт.

11

3129290R3

PLATE

CPTE SEAT

1шт.

3118843R1

NUT

INSERT 1/4-20

12шт.

3112951R1

NUT

INSERT 5/16-18

3шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

8шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

8шт.

92-4

LOCK WASHER,1/4"

8шт.

495-11028

WASHER,1/4", SAE

(.281 x .625 x .051")

8шт.

12

3116810R2

CHANNEL

REAR VERTICAL OUTER L H

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

92-4

LOCK WASHER,1/4"

1шт.

27616R1

WASHER,.281" x 5/8" x .075", HDN

.281 ID X .625 OD X .051 PLN - REAR CHANNEL TO PLATFORM

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

27616R1

WASHER,.281" x 5/8" x .075", HDN

.281 ID X .625 OD X .051 PLN

1шт.

92-4

LOCK WASHER,1/4"

1шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

Rear Channel to Fenders

1шт.

13

1500538C3

CHANNEL

VERTICAL INNER LH

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

27616R1

WASHER,.281" x 5/8" x .075", HDN

.281 X .625 X .051 PLAIN

4шт.

92-4

LOCK WASHER,1/4"

Rear Channel to Seat Platform - Rear Channel to Side Plate - Rear Channel to Platforms

4шт.

14

3116161R1

PLATE

SPARE PART CPTE HOUSING COVER

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

27616R1

WASHER,.281" x 5/8" x .075", HDN

.281 ID C .625 OD C .051 PLN

4шт.

92-4

LOCK WASHER,1/4"

4шт.

15

538239R1

PLUG

HOUSING COVER PLATE

1шт.

16

1502032C1

STRIP

BOOT RETAINER

4шт.

260-14412

SELF-TAP SCREW,Cross Pan Hd, #8 x 3/4"

NO 8-18 X 3/4 CROSS RECESS PAN HEAD

8шт.

17

1502031C2

BELLOWS

CONTROL LEVER

2шт.
