Запчасти Case IH 485 (0H15-2) - REAR PANELS SYNCHRO, 385 485 SLOW AND FAST SPEED (05) - SUPERSTRUCTURE

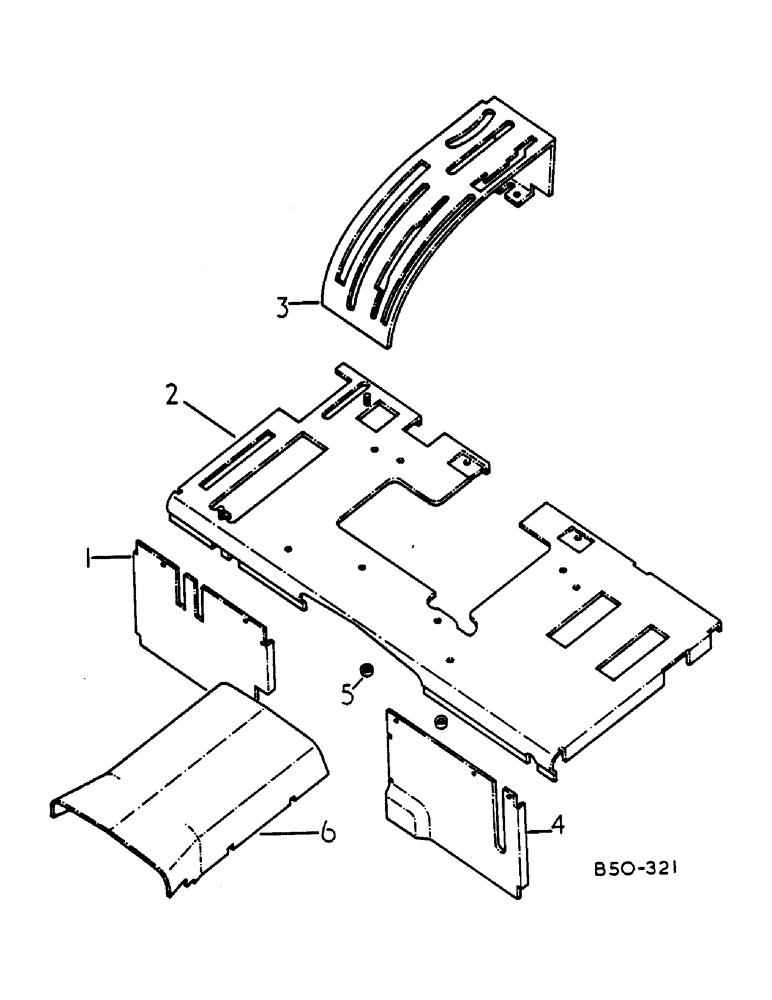

Схема запчастей Case IH 485 - (0H15-2) - REAR PANELS SYNCHRO, 385 485 SLOW AND FAST SPEED (05) - SUPERSTRUCTURE
3
5
1
4
2
6

Артикул

Название

Примечание

Количество

1

3123711R2

CHANNEL ASSY, REAR VERTICAL RH - W/SINGLE AUX VALVE

1шт.

1

3125857R1

CHANNEL

REAR VERTICAL RH - W/MULTIPLE AUX VALVE

1шт.

2

3129233R1

COVER ASSY

REAR TOP

1шт.

425-115

NUT,5/16"-24, G5

5шт.

80681

LOCK WASHER,5/16"

5шт.

3

529457R61

COVER ASSY

HITCH CONTROL LEVER - STANDARD MACHINES

1шт.

3

3121558R2

COVER ASSY

HITCH CONTROL LEVER - 4 WHEEL DRIVE

1шт.

4

528638R4

PROTECTION PLATE

CHANNEL ASSY, REAR VERTICAL L H

1шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

1/4 X 5/8 TYPE 5

3шт.

5

401941R2

SPACER

MOUNTING SHORT

2шт.

6

66290C1

COVER

CLUTCH HOUSING

1шт.

470-1256

SCREW,Slotted Pan Hd, 1/4"-20 x 3/8"

1/4 X 3/8 ZNP P/HDS MACHINE

4шт.

Выбрано товаров: 12
