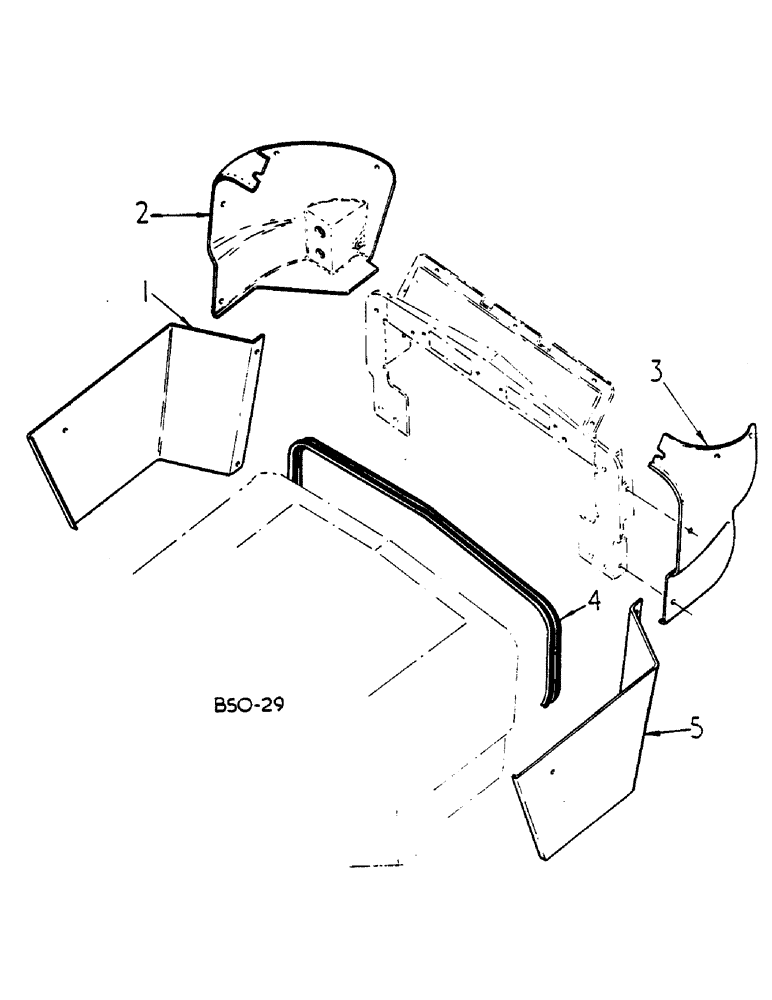

Запчасти Case IH 485 (0H11-2) - INSTRUMENT PANEL SIDE HOUSING (05) - SUPERSTRUCTURE

1

3121638R3

GUARD

LOWER REAR SIDE RH

1шт.

463-42510

SCREW,Hex, 1/4" - 20 x 5/8"

1/4-20 X 5/8 HEX-WASHER-HD CAP - MACHINES NOT FITTED W/CAB

3шт.

1

3123010R1

PANEL

LOWER REAR SIDE RH

1шт.

463-42510

SCREW,Hex, 1/4" - 20 x 5/8"

1/4-20 X 5/8 HEX-WASHER-HD CAP

2шт.

3116384R1

SELF-TAP SCREW

NO 10-16 X 1 HEX SLT HD TAP - MACHINES FITTED W/CAB

2шт.

2

3121710R2

HOUSING

INSTRUMENT PANEL SIDE RH - MACHINES FITTED W/CAB

1шт.

2

3121712R3

HOUSING

INSTRUMENT PANEL SIDE RH - MACHINES NOT FITTED W/CAB

1шт.

2

3121714R3

HOUSING

INSTRUMENT PANEL SIDE RH - MACHINES NOT FITTED W/CAB - INDUSTRIAL

1шт.

3121715R1

SPRING NUT

REVERSE

3шт.

9414743

SCREW,Tap, Gr 5

10 X 5/8 PAN HD CR TYPE AB ZND

3шт.

3144406R1

PLUG

BLANKING

1шт.

3

3121709R1

HOUSING

INSTRUMENT PANEL SIDE LH - MACHINES FITTED W/CAB

1шт.

3

3121711R1

HOUSING

INSTRUMENT PANEL SIDE LH - MACHINES NOT FITTED W/CAB

1шт.

3

3121713R4

HOUSING

INSTRUMENT PANEL SIDE LH - MACHINES NOT FITTED W/CAB - INDUSTRIAL

1шт.

3121715R1

SPRING NUT

REVERSE

3шт.

9414743

SCREW,Tap, Gr 5

10 X 5/8 PAN HD CR TYPE AB ZND

3шт.

4

SEAL, RUBBER SEALING STRIP -1160MM

1шт.

4

3121645R1

SEALING STRIP

HOOD SHEET - BULK LENGTH 50 YDS

1шт.

5

3121637R3

GUARD

LOWER REAR SIDE LH

1шт.

463-42510

SCREW,Hex, 1/4" - 20 x 5/8"

1/4-20 X 5/8 HEX-WASHER-HD CAP - MACHINES NOT FITTED W/CAB

3шт.

5

3123009R1

PANEL

SPARE PART LOWER REAR SIDE LH

1шт.

463-42510

SCREW,Hex, 1/4" - 20 x 5/8"

1/4-20 X 5/8 HEX-WASHER-HD CAP

2шт.

3116384R1

SELF-TAP SCREW

NO 10-16 X 1 HEX SLT HD TAP - MACHINES FITTED W/CAB

2шт.

1093231R1

PRODUCT GRAPHIC

INSTRUMENT HOUSING LH - 484 - (NOT ILLUSTRATED)

1шт.

1093232R1

PRODUCT GRAPHIC

INSTRUMENT HOUSING RH - 484 - (NOT ILLUSTRATED)

1шт.

1135278R1

PRODUCT GRAPHIC

INSTRUMENT HOUSING LH - 485 - (NOT ILLUSTRATED)

1шт.

1135279R1

PRODUCT GRAPHIC

INSTRUMENT HOUSING RH - 485 - (NOT ILLUSTRATED)

1шт.
