Запчасти Case IH 485 (00G06) - TORQUE AMPLIFIER LEVER AND CONNECTIONS (04) - Drive Train

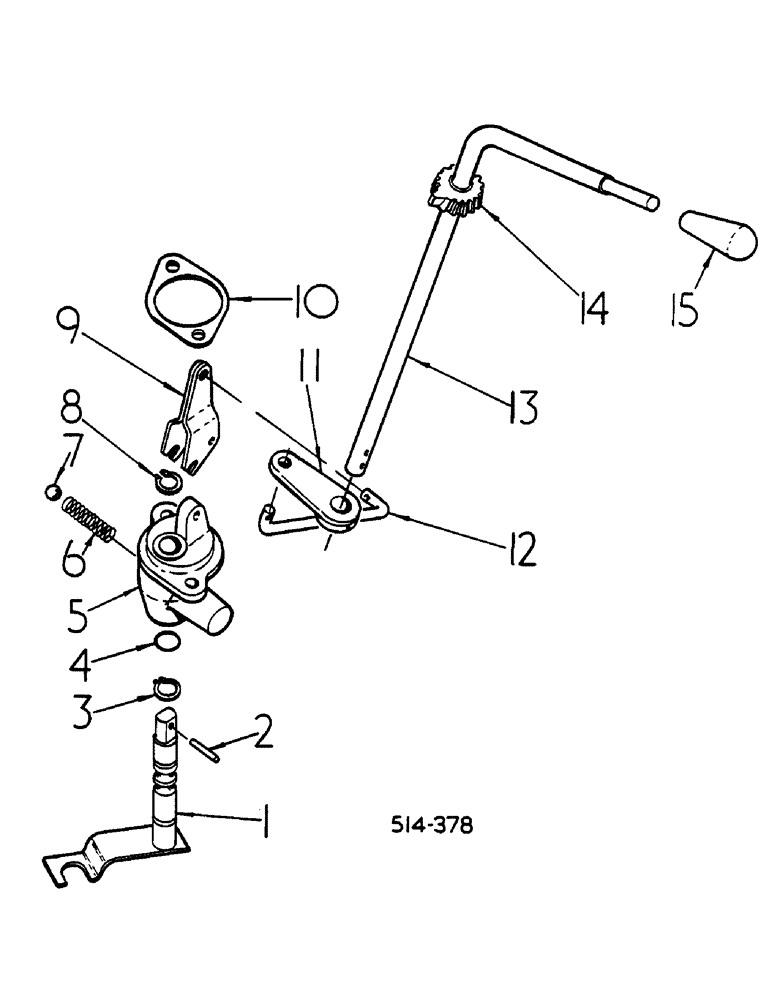

Схема запчастей Case IH 485 - (00G06) - TORQUE AMPLIFIER LEVER AND CONNECTIONS (04) - Drive Train
10
5
4
1
9
11
7
8
14
6
12
15
13
3
2

Артикул

Название

Примечание

Количество

1

531553R1

LEVER ASSY.

TA CONTROL

1шт.

2

37-1312

DOWEL,3/16" x 3/4"

PIN, 3/16 X 3/4

1шт.

3

309032R1

SNAP RING,#62, Ext

TA control shaft #62, Ext

1шт.

4

370920R1

O-RING,1/2" ID

1/2 X 5/8 X 1/16

1шт.

5

402595R2

SUPPORT

TA CONTROL SHAFT

1шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

2шт.

492-11031

LOCK WASHER,5/16"

2шт.

6

402596R1

SPRING

TA CONTROL

1шт.

7

211-1014

BALL,7/16" Dia

CR STL

1шт.

8

309032R1

SNAP RING,#62, Ext

TA control shaft #62, Ext

1шт.

9

402589R1

LEVER ASSY.

TA CONTROL

1шт.

427-4090

CLEVIS PIN,1/4" x .906"

Rod End

1шт.

95-31027

WASHER,1/4"

17/64 X 5/8 X .036

1шт.

32-410

COTTER PIN,1/16" x 5/8"

1шт.

10

401623R1

GASKET

TA CONTROL SHAFT SUPPORT

1шт.

11

98858C1

ARM ASSY.

TA CONTROL

1шт.

38-31012

PIN,3.96mm OD x 19.05mm L, Coiled

1шт.

12

402588R1

ROD

TA CONTROL

1шт.

95-11028

WASHER,1/4"

9/32 X 5/8 X .051

2шт.

80756

COTTER PIN,1/8" x 3/4"

2шт.

13

1500441C1

ARM

T A - SUPER DE-LUXE CAB ONLY, Start Serial: 183150

1шт.

13

3121402R1

ROD

TA CONTROL HANDLE

1шт.

1500441C1

ARM

PIECE T A

1шт.

1500441C1

ARM

1шт.

3125536R1

BUSHING

STILL REQ'D FOR M/C'S WITHOUT DE-LUXE CAB, Serial Range: -183149

1шт.

14

528290R1

GUIDE RING

TA CONTROL HANDLE

1шт.

83-3086

SET SCREW,Hex Soc, #8-32 x 3/8"

8-32 X 3/8 HEX HD SOC F PT

1шт.

15

3129518R1

KNOB

T A CONTROL - SUPER DE-LUXE CAB ONLY, Start Serial: 183150

1шт.

15

1536683C1

HANDLE GRIP

KNOB, TA CONTROL HANDLE ROD - STILL REQ'D FOR M/C'S WITHOUT SUPER DE-LUXE CAB, Serial Range: -183149

1шт.

95-81195

WASHER,0.53" ID x 1" OD x 0.06" Thk

1/2 X 1 X 1/16

1шт.

80755

COTTER PIN,1/8" OD x 1" L

1шт.

533594R2

DECAL

TA CONTROL (NOT ILLUSTRATED)

1шт.

1093324R2

PRODUCT GRAPHIC

DECELERATION WARNING (NOT ILLUSTRATED)

1шт.

Выбрано товаров: 33
