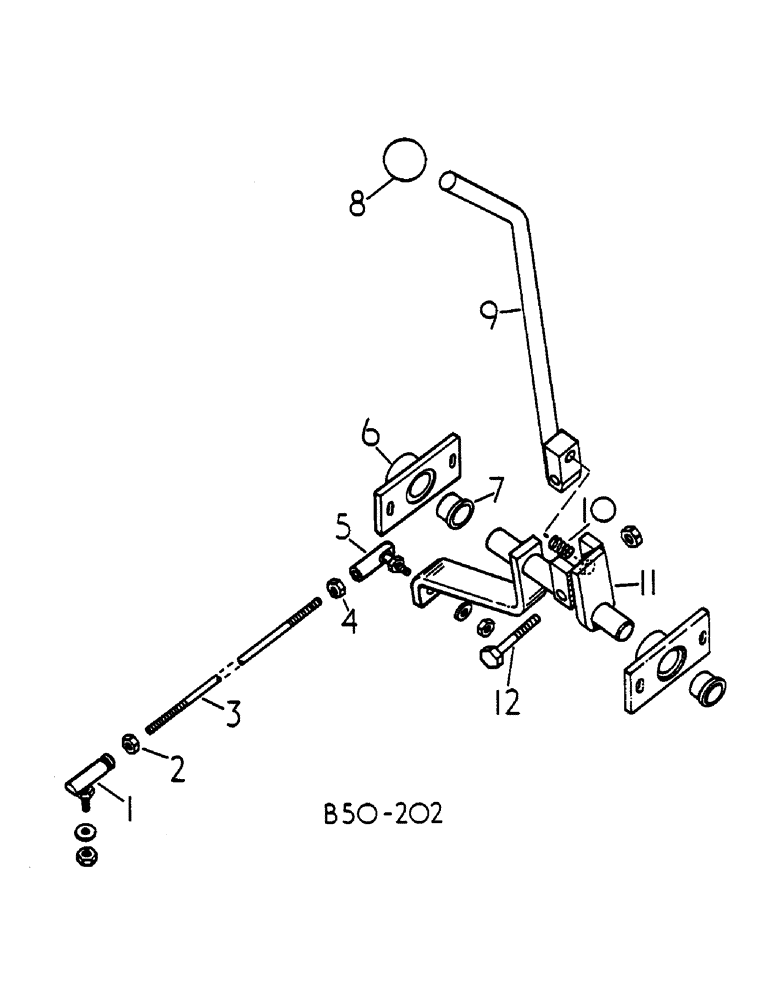

Запчасти Case IH 485 (00G02) - SPEED CONTROLS - SYNCHRO, 4682 & UP, CAB 206295 & UP (04) - Drive Train

1

D133522

BALL JOINT,3/8" - 24 x 1-3/8"

BALL LH

1шт.

NLS

NO LONGER SERVICED

3/8 TOOTHED

1шт.

3048059R1

NUT, 3/8-24 HEX LOCK

1шт.

2

23460R1

NUT,Jam, 3/8"-24, G5, LH

1шт.

3

3129523R1

ROD

TIE

1шт.

4

425-116

NUT,3/8" - 24, Gr 5

Hex

1шт.

5

653867C1

BALL JOINT

BALL RH

1шт.

178551

WASHER

3/8 TOOTHED

1шт.

3048059R91

LOCK NUT

3/8-24 HEX

1шт.

6

3129507R1

HOUSING

BUSH

2шт.

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

Set

4шт.

AP00165310

WASHER

5/16

4шт.

832-41308

NUT,M8 x 1.25, Cl 10

Self Lock

4шт.

7

3129508R1

BUSHING

2шт.

8

3129518R1

KNOB

1шт.

9

3129521R1

LEVER

GEAR

1шт.

10

3129524R1

SPRING

SPARE PART

1шт.

11

3129522R1

LEVER

SPARE PART CONNECTION

1шт.

12

814-10055

BOLT,Hex, M10 x 1.5 x 55mm, Cl 8.8

1шт.

905262R1

NUT,M10 x 1.5, Cl 10

M10 SELF

1шт.
