Запчасти Case IH 485 (00F18) - POWER TAKE OFF LEVER AND CONNECTIONS, 385 485 (04) - Drive Train

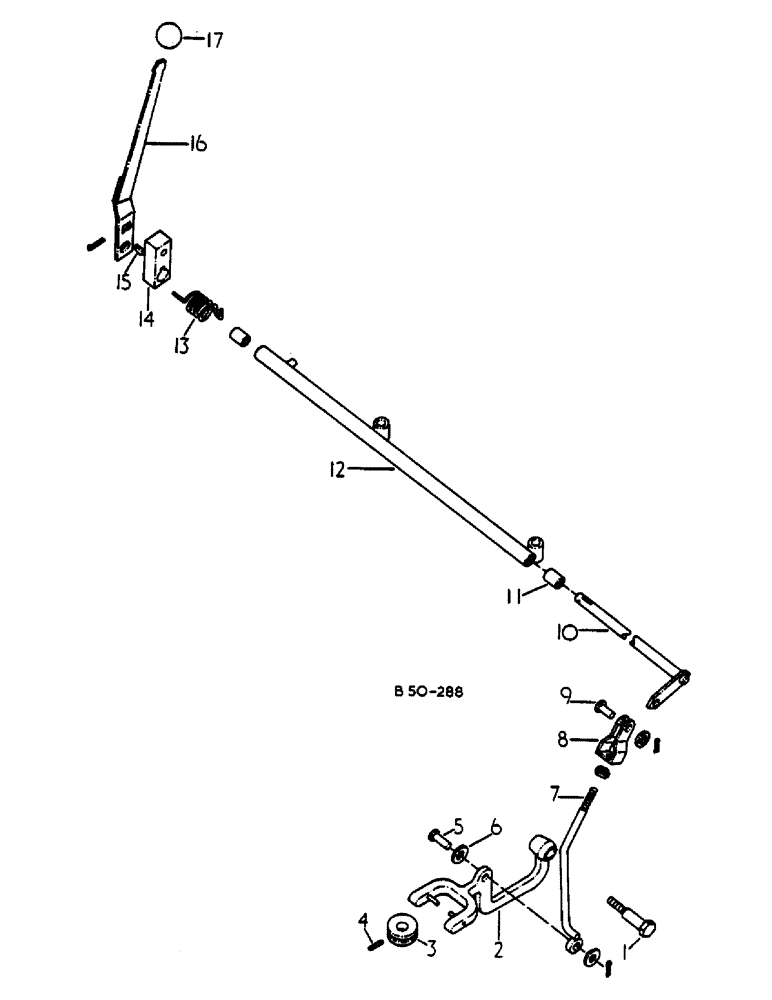

Схема запчастей Case IH 485 - (00F18) - POWER TAKE OFF LEVER AND CONNECTIONS, 385 485 (04) - Drive Train
14
2
11
4
15
5
9
17
13
6
10
7
8
1
3
16
12

Артикул

Название

Примечание

Количество

1

401754R1

BOLT,3/8" - 16 x 2.20"

BOLT, CONTROL ARM PIVOT SHAFT

1шт.

2

94344C2

LEVER

CONTROL

1шт.

3

530813R2

GUIDE BUSHING

IPTO CONTROL

1шт.

4

38-21214

PIN,3/16" x 7/8", Coiled

3/16" x 7/8", Coiled

1шт.

5

427-6106

CLEVIS PIN,9.53mm OD x 26.92mm L

3/8 X 1 CLEVIS

1шт.

432-616

COTTER PIN,3/32" x 1"

1шт.

6

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

5/16 ID X .688 X .051 PLAIN

2шт.

7

3129234R2

ROD ASSY.

IPTO CONTROL

1шт.

425-115

NUT,5/16"-24, G5

2шт.

8

3129237R1

CLEVIS

IPTO CONTROL

1шт.

9

427-5071

CLEVIS PIN,7.92mm OD x 18.26mm L

1шт.

432-616

COTTER PIN,3/32" x 1"

1шт.

10

3129240R1

SHAFT ASSY.

IPTO CONTROL

1шт.

11

628839R1

BUSHING

2шт.

12

3129238R91

SUPPORT ASSY.

IPTO CONTROL SHAFT

1шт.

13

1500622C2

SPRING

IPTO LEVER RETURN - MACHINES W/CAB

1шт.

14

538719R1

PIVOT

HANDLE CONTROL

1шт.

80755

COTTER PIN,1/8" OD x 1" L

1шт.

495-81016

WASHER,17/32" x 3/4" x .060"

17/32 X 3/4 X .060 C-Z - AS REQUIRED

1шт.

15

126-109

WOODRUFF KEY,#3, 1/8" x 1/2", HT

1шт.

16

538720R1

LEVER ASSY.

IPTO ADJ

1шт.

598804R1

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/4", Gr 5

5/16-18 X 1-1/4 ZND

1шт.

80681

LOCK WASHER,5/16"

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

17

530090R1

KNOB

IPTO HAND LEVER

1шт.

Выбрано товаров: 25
