Запчасти Case IH 485 (00F12) - FORWARD AND REVERSE CONTROLS (04) - Drive Train

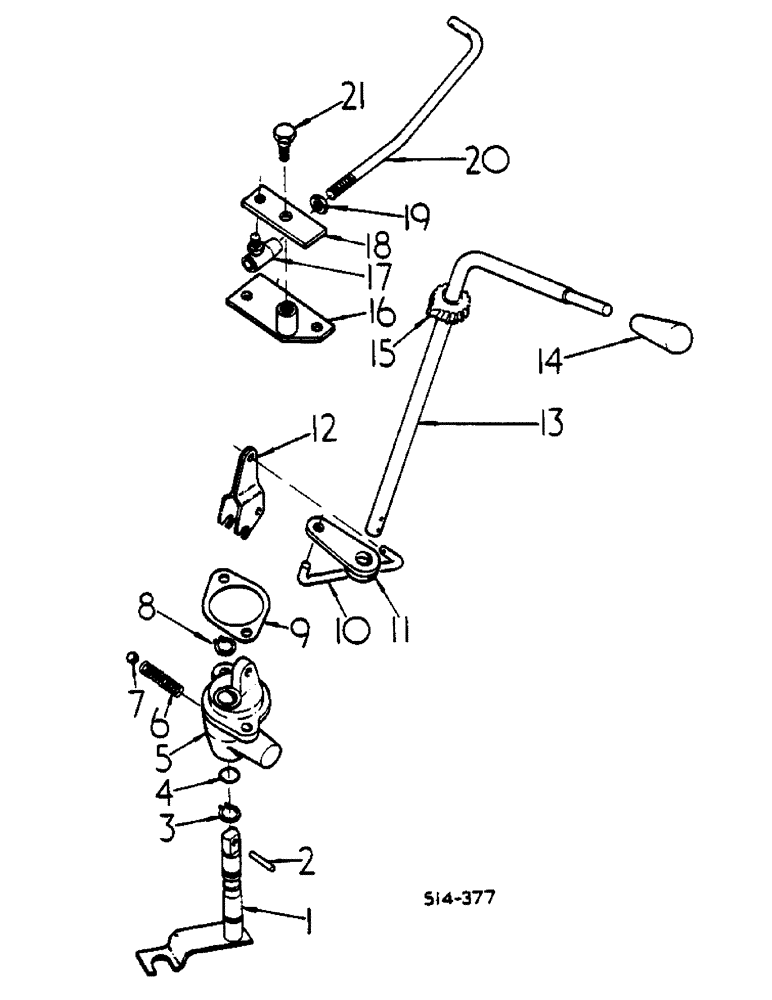

Схема запчастей Case IH 485 - (00F12) - FORWARD AND REVERSE CONTROLS (04) - Drive Train
5
16
2
12
8
11
18
6
14
21
7
1
4
17
13
10
9
3
15
20
19

Артикул

Название

Примечание

Количество

1

531553R1

LEVER ASSY.

CONTROL

1шт.

2

37-1316

DOWEL,3/16" x 1"

PIN, 3/16 X 1

1шт.

3

309032R1

SNAP RING,#62, Ext

control shaft #62, Ext

1шт.

4

370920R1

O-RING,1/2" ID

1/2 X 5/8 X 1/16

1шт.

5

402595R2

SUPPORT

CONTROL SHAFT

1шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

2шт.

492-11031

LOCK WASHER,5/16"

2шт.

6

402596R1

SPRING

CONTROL

1шт.

7

211-1014

BALL,7/16" Dia

CR STL

1шт.

8

309032R1

SNAP RING,#62, Ext

control shaft #62, Ext

1шт.

9

401623R1

GASKET

CONTROL SHAFT SUPPORT

1шт.

10

402588R1

ROD

CONTROL

1шт.

95-11028

WASHER,1/4"

9/32 X 5/8 X .051

2шт.

80756

COTTER PIN,1/8" x 3/4"

2шт.

11

98858C1

ARM ASSY.

CONTROL

1шт.

38-31014

PIN,5/32" x 7/8", Coiled

5/32" x 7/8", Coiled

1шт.

12

528941R1

LEVER

CONTROL

1шт.

89375H

CLEVIS PIN

1/4 X 1-11/64 ROD END

1шт.

95-31027

WASHER,1/4"

17/64 X 5/8 X .036

1шт.

32-410

COTTER PIN,1/16" x 5/8"

1шт.

13

3121402R1

ROD

CONTROL HANDLE

1шт.

14

1536683C1

HANDLE GRIP

KNOB, CONTROL HANDLE ROD

1шт.

95-81195

WASHER,0.53" ID x 1" OD x 0.06" Thk

1/2 X 1 X 1/16

1шт.

80755

COTTER PIN,1/8" OD x 1" L

1шт.

15

528290R1

GUIDE RING

COLLAR, CONTROL HANDLE

1шт.

83-3086

SET SCREW,Hex Soc, #8-32 x 3/8"

8-32 X 3/8 HEX SOC HD F PT

1шт.

16

528942R1

PLATE ASSY.

MOUNTING

1шт.

17

310673R91

BALL JOINT

5/16-24

1шт.

17

310673R1

BALL JOINT

5/16-24

1шт.

17

310673R91

BALL JOINT

5/16-24

1шт.

18

528945R1

LOCKING PLATE

LOCKING

1шт.

19

425-115

NUT,5/16"-24, G5

2шт.

20

528946R2

ROD

LOCKOUT

1шт.

80756

COTTER PIN,1/8" x 3/4"

2шт.

21

399509R1

BOLT,Shldr, Hex, 3/8" - 16 x 1", W/ Wshr

BOLT, SHOULDER

1шт.

495-81008

WASHER,.469" x 3/4" x .060"

15/32 X 3/4 X 16 GA C-Z

1шт.

Выбрано товаров: 36
