Запчасти Case IH 485 (00F09) - TRANSMISSION CONTROLS - EXTERNAL, 385 485 SLOW AND FAST SPEED (04) - Drive Train

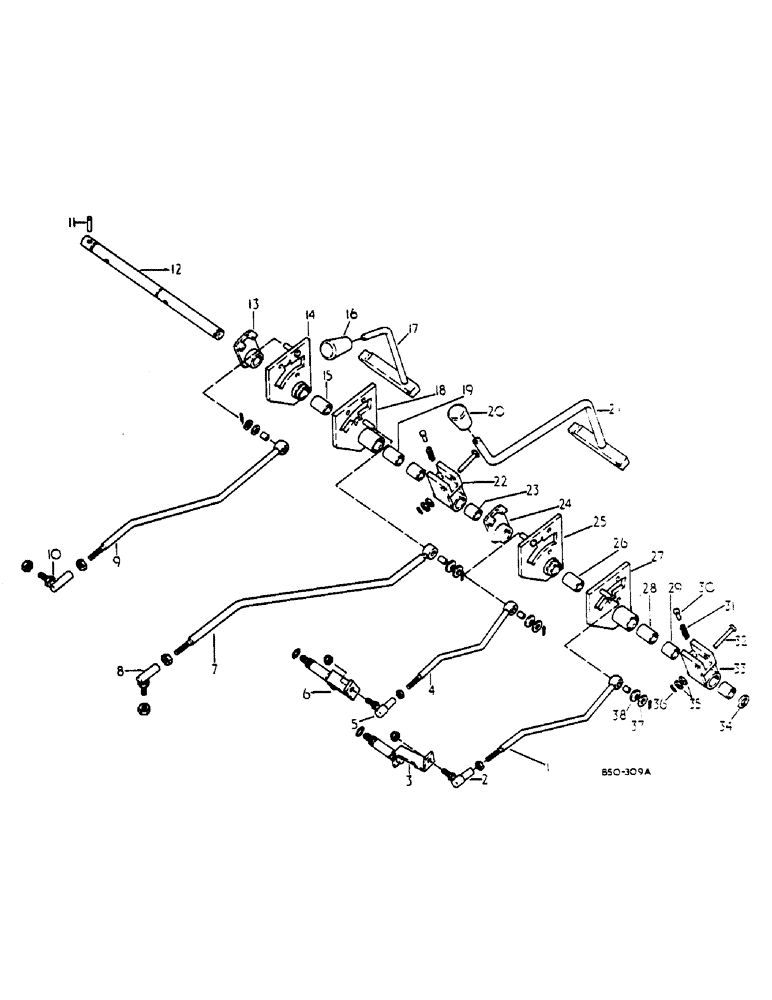

Схема запчастей Case IH 485 - (00F09) - TRANSMISSION CONTROLS - EXTERNAL, 385 485 SLOW AND FAST SPEED (04) - Drive Train
13
9
34
6
38
8
10
15
4
24
25
29
37
3
35
30
32
16
5
23
26
20
31
36
11
1
12
27
21
22
2
33
28
7
17
14
18
19

Артикул

Название

Примечание

Количество

1

1536648C1

ROD ASSY.

RANGE SHIFT FRONT

1шт.

3129156R1

BUSHING,9.58mm ID x 12.79mm OD x 12.7mm L

ROD END EYE

1шт.

2

1500497C1

BALL JOINT

1шт.

1500536C1

JAM NUT

7/16-28 HEX JAM

1шт.

231-4617

LOCK NUT,7/16"-20, GB

7/16-20 PREVAILING TORQUE HEX

1шт.

131-181

LOCK NUT,3/8"-24, GC

7/16-20 PREVAILING TORQUE TURR - OPTIONAL

1шт.

3

405164R4

ARM

RANGE SHIFT OUTER FRONT

1шт.

95-81056

WASHER,0.78" ID x 1.25" OD x 0.06" Thk

25/32 X 1-1/4 X .060

2шт.

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

9/16 X 3/4 X 3/32

1шт.

4

3129232R91

ROD ASSY.

RANGE SHIFT REAR

1шт.

3129156R1

BUSHING,9.58mm ID x 12.79mm OD x 12.7mm L

ROD END EYE

1шт.

5

1500497C1

BALL JOINT

1шт.

1500536C1

JAM NUT

7/16-28 HEX JAM

1шт.

231-4617

LOCK NUT,7/16"-20, GB

7/16-28 PREVAILING TORQUE HEX NUT, 7/16-28 PREVAILING TORQUE TURR - OPTIONAL

1шт.

6

405167R3

ARM

RANGE SHIFT OUTER REAR

1шт.

95-81056

WASHER,0.78" ID x 1.25" OD x 0.06" Thk

25/32 X 1-1/4 X .060

2шт.

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

9/16 X 3/4 X 3/32

1шт.

7

3129226R92

ROD ASSY.

SPEED SHIFT - 3RD/4TH - FAST SPEED

1шт.

3129156R1

BUSHING,9.58mm ID x 12.79mm OD x 12.7mm L

ROD END EYE

1шт.

8

653867C1

BALL JOINT

3/8 IH TYPE G4

1шт.

18-252

NUT

3/8-24 ZND HEX JAM

1шт.

495-81130

WASHER,10.31mm ID x 19.05mm OD x 0.69mm Thk

13/32 X 3/4 X .020

2шт.

3048059R91

LOCK NUT

3/8-24 HEX

1шт.

9

3129222R91

ROD ASSY.

SPEED SHIFT - 1ST/2ND

1шт.

3129156R1

BUSHING,9.58mm ID x 12.79mm OD x 12.7mm L

ROD END EYE

1шт.

10

653867C1

BALL JOINT

3/8 IH TYPE G4

1шт.

18-252

NUT

3/8-24 ZND HEX JAM

1шт.

495-81130

WASHER,10.31mm ID x 19.05mm OD x 0.69mm Thk

13/32 X 3/4 X .020

2шт.

3048059R91

LOCK NUT

3/8-24 HEX

1шт.

11

617940R1

PIN,5/16" x 1 3/4", Coiled

5/16" x 1 3/4", Coiled

3шт.

12

3129155R1

SHAFT

SHAFT, RANGE TRANS SHIFT LEVER IDLER

1шт.

13

3129218R2

PLATE

GATE ASSY, SHIFT

1шт.

14

3129211R92

LEVER

SPEED SHIFT 1ST/2ND

1шт.

280250

COTTER PIN,3/32" OD x 3/4" L

1шт.

15

3129207R1

BUSHING,22.25mm ID x 25.48mm OD x 30mm L

LEVER

1шт.

16

3129267R1

BALL KNOB

SPEED SHIFT LEVER

1шт.

17

3129265R5

LEVER

SPEED SHIFT

1шт.

18

3129217R92

LEVER

SPEED SHIFT 3RD/4TH - FAST SPEED

1шт.

18

3129216R92

LEVER

SPEED SHIFT 3RD/4TH - SLOW SPEED

1шт.

280250

COTTER PIN,3/32" OD x 3/4" L

1шт.

19

3129207R1

BUSHING,22.25mm ID x 25.48mm OD x 30mm L

LEVER

1шт.

20

3129267R1

BALL KNOB

RANGE SHIFT LEVER

1шт.

21

318809A1

LEVER ASSY.

RANGE SHIFT

1шт.

22

3129214R91

HOUSING

SELECTOR ARM

1шт.

23

530815R1

BUSHING,22.27mm ID x 25.46mm OD x 22.23mm L

2шт.

24

3129218R2

PLATE

GATE ASSY, SHIFT

1шт.

25

3129210R91

LEVER ASSY.

RANGE REAR

1шт.

280250

COTTER PIN,3/32" OD x 3/4" L

1шт.

26

3129207R1

BUSHING,22.25mm ID x 25.48mm OD x 30mm L

LEVER

1шт.

27

3129209R92

LEVER ASSY.

RANGE FRONT

1шт.

280250

COTTER PIN,3/32" OD x 3/4" L

1шт.

28

3129207R1

BUSHING,22.25mm ID x 25.48mm OD x 30mm L

LEVER

1шт.

29

530815R1

BUSHING,22.27mm ID x 25.46mm OD x 22.23mm L

2шт.

30

439-158

HEADED PIN,5/16" x 1/2"

5/16 HEADED

2шт.

31

71486C1

SPRING

2шт.

32

439-1632

HEADED PIN,9.53mm OD x 50.8mm L

3/8 X 2 HEADED

2шт.

33

3129214R91

HOUSING

SELECTOR ARM

1шт.

34

454331R1

SNAP RING,#87, Ext

2шт.

95-81028

WASHER,0.91" ID x 1.25" OD x 0.03" Thk

29/32 X 1-1/4 X .027

2шт.

35

95-11041

WASHER,3/8"

(13/32 x 13/16 x .051)

2шт.

36

80755

COTTER PIN,1/8" OD x 1" L

3/8 X 2

2шт.

37

495-81130

WASHER,10.31mm ID x 19.05mm OD x 0.69mm Thk

4шт.

38

83723R1

WAVE WASHER

WAVE

4шт.

Выбрано товаров: 63
