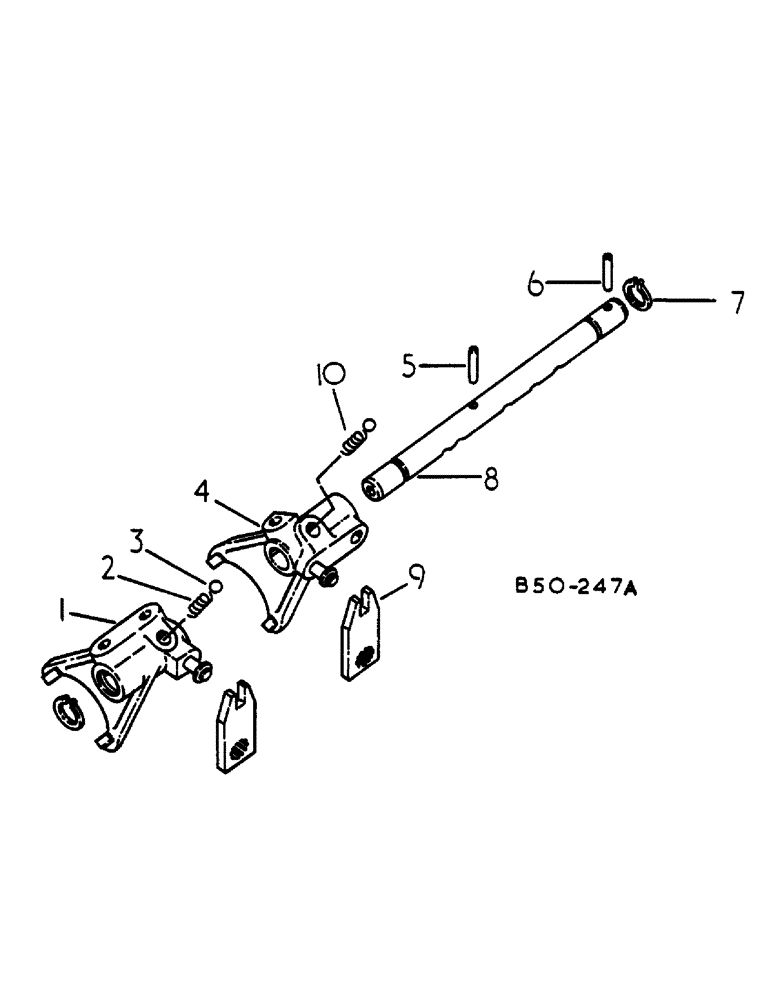

Запчасти Case IH 485 (00E22) - GEAR SHIFT MECHANISM - RANGE TRANSMISSION, 385 485 SLOW & FAST SPEED (04) - Drive Train

1

538911R4

FORK

FRONT

1шт.

2

103062C1

SPRING

POPPET BALL

1шт.

3

211-1013

BALL,10.31mm OD, Gr 24

13/32 CR-STL - OPTIONAL W/16 D13R1

2шт.

3

211-1013

BALL,10.31mm OD, Gr 24

13/32 CR-STL - OPTIONAL W/17D13R1

2шт.

4

538912R4

FORK

REAR - SYNCHROMESH DRIVE TRACTORS

1шт.

5

763458

PIN,1/4" x 1 1/2", Coiled

1/4" x 1 1/2", Coiled

1шт.

6

19885R1

PIN,1/4" x 1 3/8", Coiled

1шт.

7

661652R1

SNAP RING,#75, Ext

Shift fork rail

3шт.

8

537473R3

RAIL

RANGE SHIFT FORK - SYNCHROMESH DRIVE TRACTORS

1шт.

9

405169R2

ARM

RANGE SHIFT INNER

2шт.

131-208

SPECIAL NUT,1/2"-13

1/2 PLN P/T LOCK TYPE 5

2шт.

10

534053R1

SPRING

POPPET BALL

1шт.
